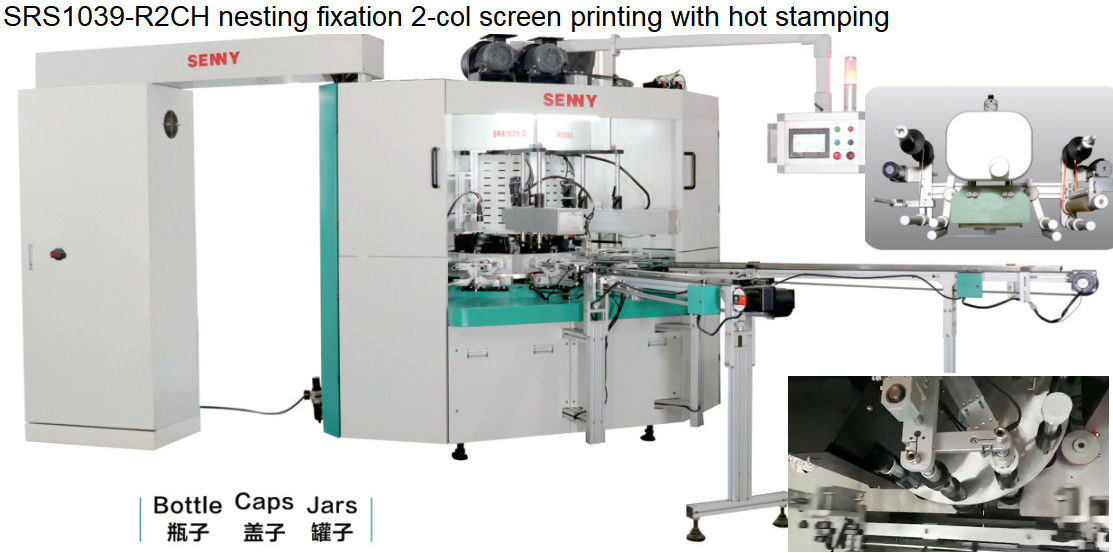

60Hz 45pcs/Min Gold Digital Hot Foil Stamping Machine SGS Approved
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1039-R2CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Product Shape: | Irregular Shape | Plate Type: | Screen Printer |
|---|---|---|---|
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Station: | 3 Stations | Printing Color: | 2 Col Screen Printing + 1 Col Hot Foil Stamp |
| High Light: | 45pcs/min digital hot foil stamping machine,60Hz digital hot foil stamping machine,45pcs/min gold foil printing machine |
||
Product Description
Automatic Foil Stamping Machine Hot Stamp Machinery With Two Color Screen Printing For Complex Shapes
1. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable at high speed.
2. According to the characteristics of products, this machine can be equipped with kinds of functions such as automatic loading and unloading, orientation, flame treatment, dedusting, automatic registration, non-printing without bottles , and UV Curing system, etc.
3. All components are from German, USA and Japan to ensure the machine quality and stability of printing.
4. The innovative transmission system is very steady in passing the bottles, easy to shift between different types of bottles, easy to operate.
5. This machine allows to print up to 5 colors, each module machine is independent and synchronous drive, accurate registration between colors, stable and reliable performance.
6. Three languages such as Chinese, English and Spanish supported.
7. We can customize machine according to the special products.
Application:
SRS1039-R2CH is designed for oval/square/irregular shape bottles, caps and jars' screen print and hot foil stamping, the printing speed can up to 45pcs per minute.
The machine is specially designed for round, oval and retangle bottles, cups, etc.
The machine can be widely used on cosmetic, and food industry.
The machine is working withe PLC system. It is efficiency and accurary.
Technical specification
| Model | SRS1039-R2CH |
| Print color | 1-color screen print + 1-color hot stamping |
| Product stations | 2 |
| Product diameter | irregular shape---20~100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air pressure | 6-7 bar |
| Power | 380v 50/60Hz |
The main difference compared with SRS1039-D2CH is different way of fixation, SRS1039-D2CH is double-clamp and SRS1039-R2CH is nesting, pls refer below:
Double clamp fixation:
Nesting fixation:
