5000pcs/Hr Automatic Hot Foil Stamping Machine , 6KW Heat Stamp Machine
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1288-2CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 5 |
|---|---|---|---|
| Plate Type: | Screen Printer With Hot Stamping | After-sales Service: | Video Or On-line |
| Brand: | Senny Or OEM | Warrenty: | One Year |
| High Light: | 5000pcs/hr automatic hot foil stamping machine,6KW automatic hot foil stamping machine,6KW heat stamp machine |
||
Product Description

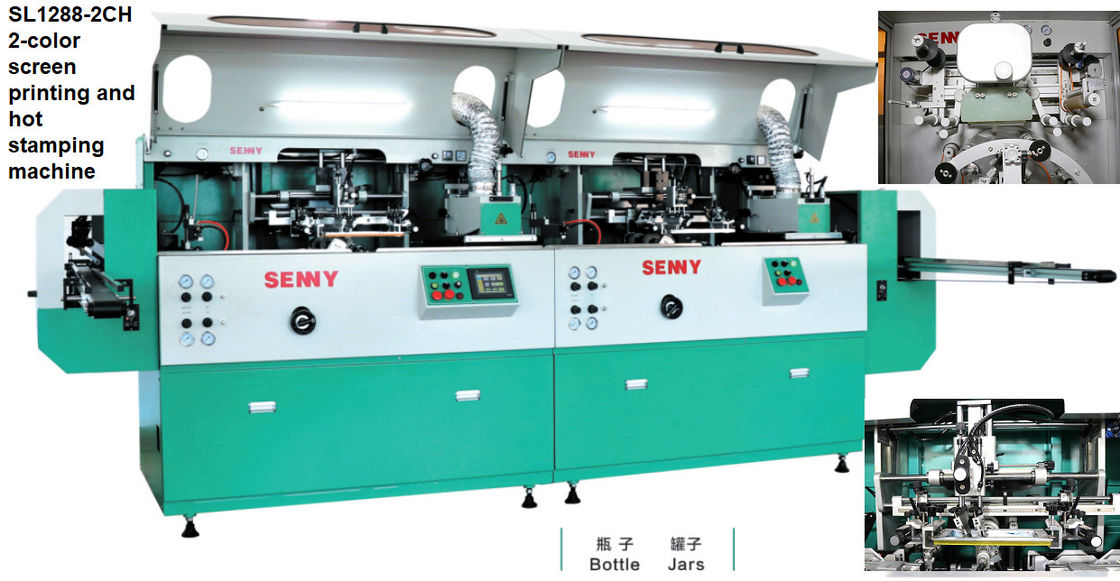

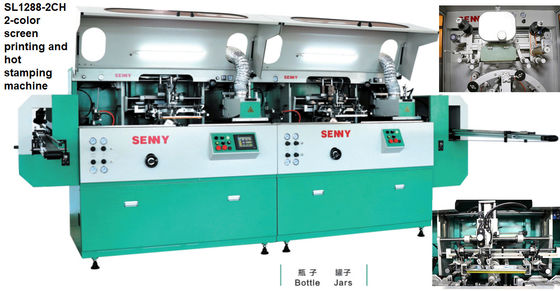

Automatic Hot Foil Stamp Machine With Two-Color Screen Printing With UV Curing, Flame Treating System
Application:
This machine S1288-2CH has two functions: screen printing and hot stamping. It is widely used in food, medicine, pesticide, chemical and other industries. The containers can be cylindrical, elliptical or square shape of bottles, jars, tubes, and material can be plastic, acrylic or glass.
Technical Specification:
| Model | SL1288-2CH |
| Shape of the container | Cylindrical/Elliptical/Square |
| Elliptical container radius | R25-R200mm |
| Width of the elliptical or flat container | 20-100mm |
| Cylindrical container diameter | Φ20-Φ100mm |
| Container height | 50-280mm |
| Max. printing area | L250 X W200mm |
| Max. printing speed | Up to 5000pcs/hr |
| Air Pressure |
6-7bar |
| Power Voltage |
380V 6KW |
Main function:
- Speed regulating feeding belt
- Direction selecting manipulator feeding
- Speed regulating stepping motor driving round bottle rotation
- Electrostatic dust removal function
- Flame processing function
- Pre positioning function
- Automatic positioning screen printing function
- Convenient screen printing head lifting function
- High energy UV curing system
- Manipulator discharging
- Speed regulating discharging conveyor belt
Product Features:
Packaging & Shipping:
Packaging: wrap with plastic film and outside the sea-worthy wooden case.
Shipment date: 20-25 working days after receive the deposit and sample.
Payment terms: 100% T/T or 30% deposit balanced settled before shipment or L/C at sight.
Company introduction:
Dongguan Senny Printing Equipment Co., Ltd was founded in the year of 2004, and registered HongKong Senny Holding Co., Ltd in 2013. We have a great engineering team, who has engaged in mechnical & electrical automachine designing, parts processing, equipment assembly and debugging for more than 20 years. To provide high-quality products and services, we have a number of presision CNC and other processing equipment. All machines are made of world brand electrical components and materials.
Our founder Mr Zhu has been engaged in this area about 28 years, and always being in designing and developing line. We can make customized production line according to your specific products, and provide technical support at any time.
