380V 50Hz plastic Hot Stamping Machine For food industry CE Approved
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS829-R1CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer | Station: | 2 Stations |
|---|---|---|---|
| Printing Color: | 1 Col Screen Printing + 1 Col Hot Foil Stamp | Product Shape: | Irregular Shape |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| High Light: | 380V hot stamping machine,50Hz hot stamping machine,50Hz plastic stamping machine |
||
Product Description
Nesting Fixation Hot Stamping And Screen Printing Machine, Colors Can Be Customized

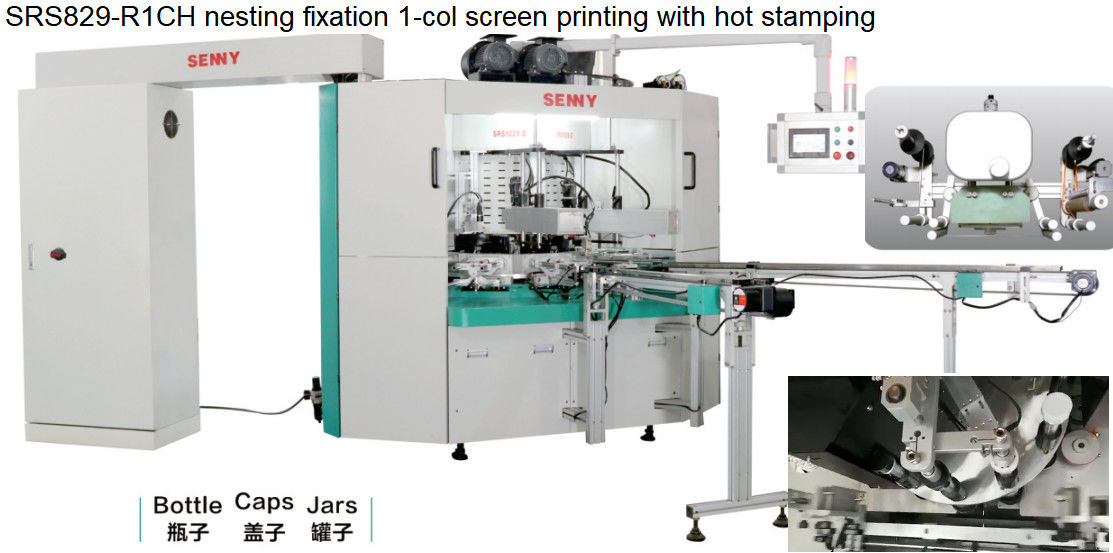

SRS829-R1CH is designed for oval/square/irregular shape bottles, caps and jars' screen print and hot foil stamping, the printing speed can up to 45pcs per minute.
The machine is specially designed for round, oval and retangle bottles, cups, etc.
The machine can be widely used on cosmetic, and food industry.
The machine is working withe PLC system. It is efficiency and accurary.
Technical specification
| Model | SRS829-R1CH |
| Print color | 1-color screen print + 1-color hot stamping |
| Product stations | 2 |
| Product diameter | irregular shape---20~100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air pressure | 6-7 bar |
| Power | 380v 50/60Hz |
The main difference compared with SRS829-D1CH is different way of fixation, SRS829-D1CH is double-clamp and SRS829-R1CH is nesting, pls refer below:
Double clamp fixation:
Nesting fixation:
Different items represent different color quantity:
| Model | SRS829-D | SRS1033-D | SRS1249-D | SRS1669-D | SRS829-DR | SRS1039-DR | SRS1249-DR | SRS1669-DR |
| Printing stations | 2 | 3 | 4 | 6 | 2 | 3 | 4 | 6 |
| Product diameter | Irregular shapes 20-100mm | cylindrical 20-100mm |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
