280x200mm Automatic Hot Stamping Machine , 3000pcs/Hr Heat Foil Machine
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1039-D2CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Plate Type: | Screen Printer + Hot Foil Stamping | Station: | 3 Station |
|---|---|---|---|
| Printing Color: | 3 Colors | Product Shape: | Irregular Shape |
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| High Light: | 280x200mm automatic hot stamping machine,3000pcs/hr automatic hot stamping machine,3000pcs/hr heat foil machine |
||
Product Description

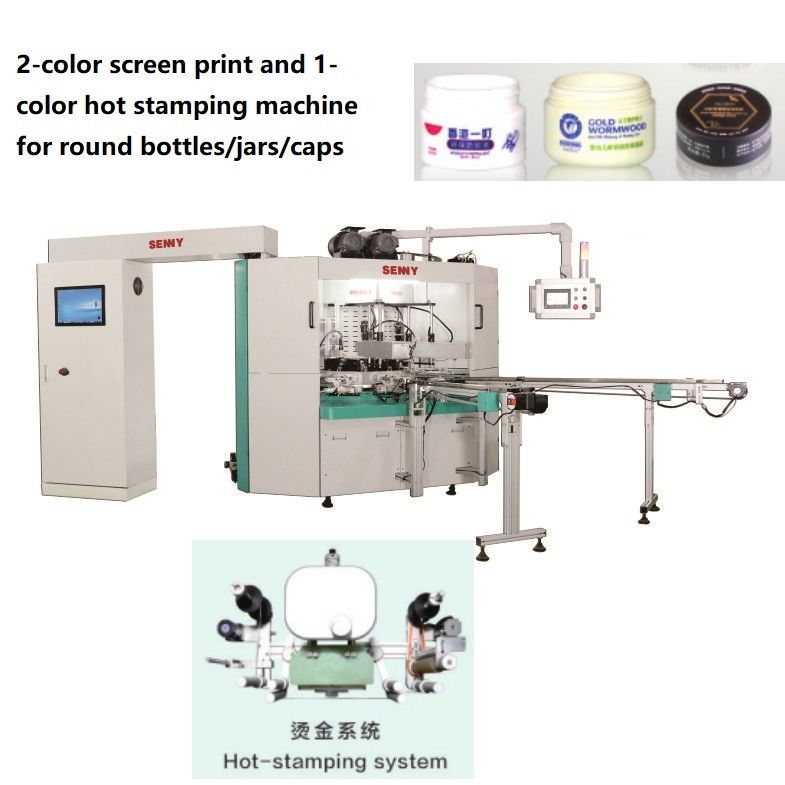

Round Bottles, Jars, Caps Hot Stamping And Screen Printer 360 Degree Printing Machine With Double-Clip Fixation
For The Screen Printing Machine, We Can Teach You:
1. How to make screen frame
2. Choose mesh density according to your product
3. How to make squeegee, blade
4. Ink mixing
5. Setting up screen printing machine
6. Maintenance of screen printer
Product Features:
1. SRS1039-D2CH is designed for plastic round containers, the printing colors can be designed from 1 to 3 as customer's requirements with 1 color hot foil stamping.
2. 360 degree screen printing and hot foil stamping.
3. All servo-drive for screen printing and hot stamping.
4. Mechanical registration, color mark registration and visual registration function.
5. Electronic UV system and non-polar dimming function (LED-UV curing system is a option).
6. With touch screen display, it is easy to realize the man-to machine dialogue, and it also has complete warning system.
Technical Specifications
| Max. printing area | 280 X 200mm |
| Min. cylindrical-container diameter | Φ25mm |
| Max. cylindrical-container diameter | Φ90mm |
| Max. width of elliptical and flat container | 120mm |
| Min. container height | 60mm |
| Max. container height | 260mm |
| Max. screen frame size | 450 X 250mm |
| Max. printing speed | 3000pcs/hr |
Printing samples
Optional Configuration
Customer's plant using our machine
