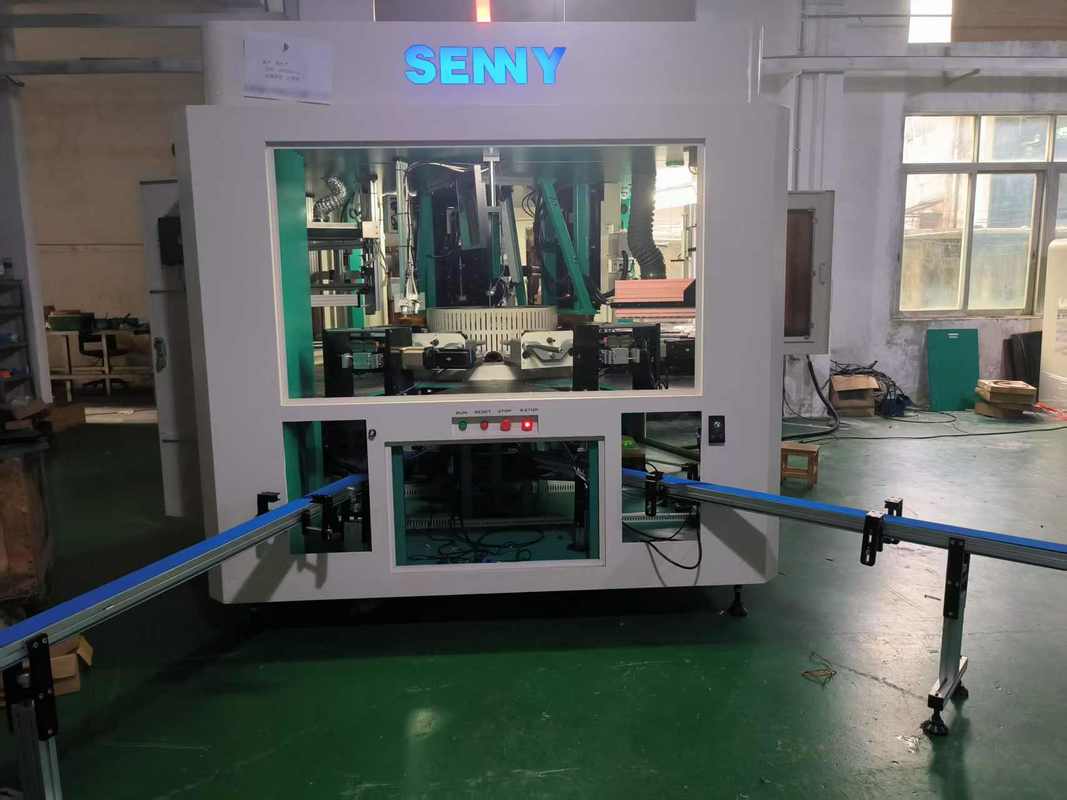

8 Work Station 2 Color Bottle Screen Printer Hot Stamping Up To 55pcs/Min 360-Degree

8 Work Station 2 Color Bottle Screen Printer Hot Stamping Up To 55pcs/Min 360-Degree

Machine Application:

This machine excels at 360° seamless all-around printing—its printing head fits closely to various curved substrates (from arc-shaped bottle bodies to round can surfaces), ensuring no visible seams on the printed surface. It uses 3-color UV ink that delivers vibrant, long-lasting results: the ink has high color saturation, which can accurately restore the bright tones of the original design, and is not easy to fade after long-term use.
It boasts rapid drying: relying on UV curing technology, it can cure in just seconds with no prolonged waiting, and no additional drying equipment is needed, which is ideal for high-speed production lines to boost throughput. Additionally, it offers superior scratch resistance—thanks to the cured UV ink’s strong adhesion and hardness, it can easily withstand daily handling and friction (even in scenarios of frequent transportation or slight collisions), keeping printed designs crisp, vivid, and intact over time.
The machine accommodates a wide range of products, including:
Bottles: Beverage bottles (e.g., PET soda bottles for carbonated drinks like cola and sprite) and cosmetic containers (e.g., glass jars for face creams, PP bottles for facial serums);
Cans: Food cans (e.g., tinplate cans for preserved fruits like canned yellow peaches and bayberries) and aerosol cans (e.g., aluminum spray cans for cosmetics like hairspray or household cleaners like glass sprays);
Lids: Bottle caps (e.g., plastic caps for water bottles such as mineral water and sports drinks) and jar lids (e.g., metal lids for honey jars or jam jars);
Other items: Products in round, oval, or special shapes (e.g., flat-sided skincare sample containers, multi-faceted aromatherapy boxes), crafted from materials like plastic (PET, PP), glass (e.g., borosilicate jars for high-end cosmetics like essence), and metal (aluminum alloy, tinplate).

Main Functions:

Wireless tablet control function;

Remote service management function;

Speed-adjustable conveyor belt separated feeding function;

Bottle standing manipulator feeding function;

Digital control servo motor drive 3-color 360-degree printing function;

UV curing function;

Bottle standing manipulator discharge function;

Speed-adjustable conveyor belt discharging function.

Workstations: 1. Visual positioning of the bottom of the feeding bottle and electrostatic dust removal; 2. Flame treatment; 3. Visual positioning of the bottle body; 4. 1st color screen printing; 5. LED-UV curing; 6. 2nd color screen printing; 7. LED-UV curing; 8. 3rd color screen printing (or hot stamping); 9. UV curing; 10. Discharging.

Technical Specifications:

Applications:

The SRS299 CNC Automatic 4-Color Screen Printing Machine for Containers is a full-automatic multi-color screen printing equipment for container products. It has a wide range of applications and can be used for 4-color screen printing of various container products, such as plastic bottles, glass bottles, metal cans, ceramic cups, aluminum kettles, PET cans, etc.

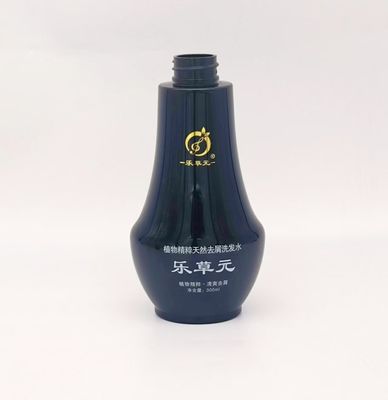

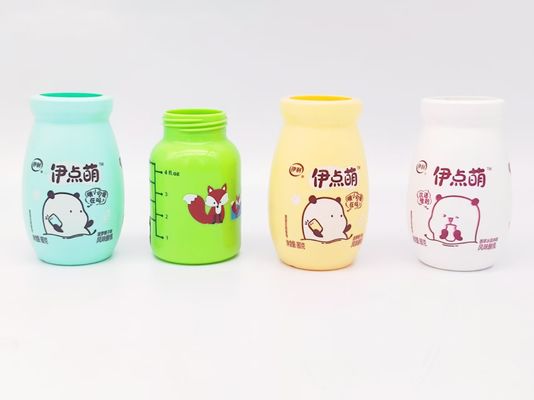

Printing sample

Round container                                           Polygon container                                        Oval container

What's the difference of linear screen printing machine and CNC rotary screen printing machine?

1. Linear printing machine is faster than CNC rotary machine, but printing accuracy is lower.

2. Linear printing machine is modular combination, more colors means longer floor area, CNC rotary is rotation structure which will save space.

3. CNC printing machine is equiped with remote management and service function, which will be more convenient.

4. For CNC machine, all printing functions will be finished in the same set of fixture, which will avoid product being scratched.

5. All debugging such as printing head, screen frames can be fixed through wireless tablet, but linear machine must be adjusted by hand.

About us:

SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.

SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.

In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.

With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
