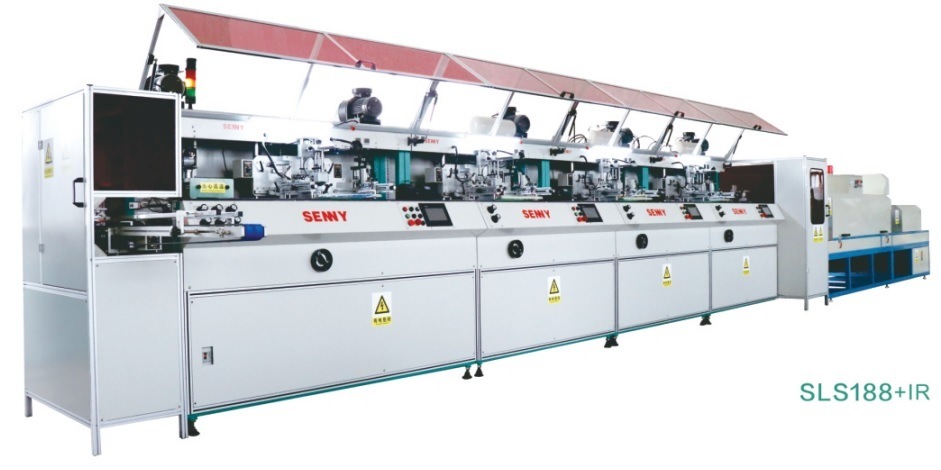

1-8 Color Bottle Screen Printer For Plastic Bottles And Cans With Servo Motor
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SLS1888-IR5312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1 To 12, Can Be Customized | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Payment Terms: | T/T | Delivery Time: | 45days |
| Certification: | CE SGS | Package Details: | Plywood Package |
Product Description
1-8 Color Bottle Screen Printer For Plastic Bottles And Cans With Servo Motor
Machine Features:
- This machine is suitable for screen-printing IR inks of various colors on plastic bottles with shapes such as round, oval, and square.
- The machine adopts a digitally controlled servo motor to drive products for 360-degree printing, enabling Industry 4.0 remote management and services. This allows for real-time monitoring of equipment operation status, remote parameter adjustment, and timely troubleshooting, greatly improving production management efficiency and reducing maintenance response time.
- It is equipped with electrical components from well-known brands, along with an easy-to-use touchscreen operation and a PLC control system, ensuring reliable performance. The user-friendly interface makes operation simple even for new operators, while the stable control system guarantees consistent printing quality and minimizes operational errors.
- Featuring a highly customizable modular structure, the machine can be linearly connected to form a 1-8 color printing press. This modular design not only facilitates flexible configuration according to different production needs but also simplifies future upgrades and expansions, allowing enterprises to adjust production capacity and functions in a cost-effective manner.
- The standard configuration of the machine includes screen-printing and IR curing modules. It can also be optionally connected with independent modules such as hot stamping, labeling, and quality inspection to form a multi-functional printing press. This integration of multiple processes enables one-stop production from printing to post-processing, significantly enhancing overall production efficiency and product added value.
Technical Specifications:
| Specification/Model | SLS1888-IR5312 |
| Printing speed | Up to 40pcs/min |
| Diameter of bottle | 20–160mm |
| Height of bottle | 50–300mm |
| Printing length | 300mm |
| Printing height | 250mm |
Applications
SLS1888-IR 5312 CNC Plastic Bottle Servo-Driven IR Brushing Machine is a fully automatic plastic bottle surface treatment equipment. Its application range is quite extensive, and it can be used for surface brushing treatment of various plastic bottles, such as PET bottles, PE bottles, PP bottles, PVC bottles, etc.
Printing sample
What is the difference between a linear screen printing machine and a CNC rotary screen printing machine?
1. Straight line screen printing machine is faster than CNC rotary screen printing machine, but the printing accuracy is lower.
2. Straight line presses are modular combinations, the more colors the larger the footprint, while CNC rotary is a rotating structure that will save space.
3. CNC printers are easier to use with remote management and service feature.
4. For CNC machine, all printing functions will be done in the same set of fixture, which will avoid the product being scratched.
5. All adjustments such as printing head, screen frame etc. can be fixed by wireless tablet PC, but linear machine must be adjusted manually.
