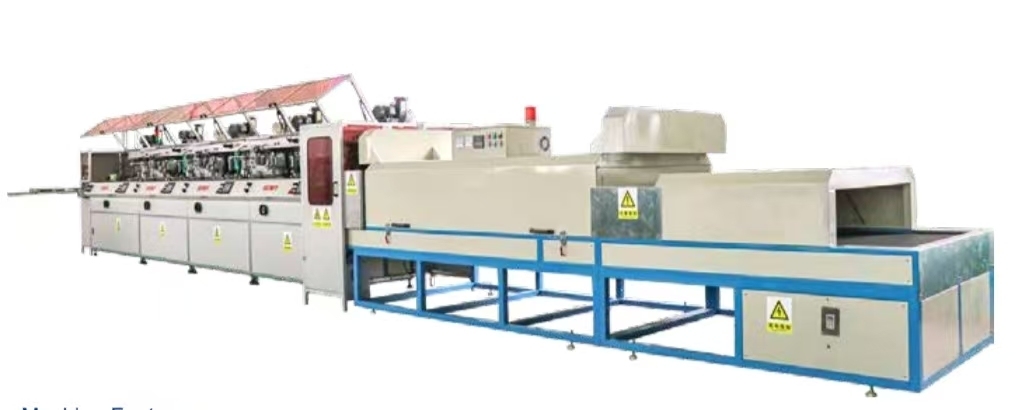

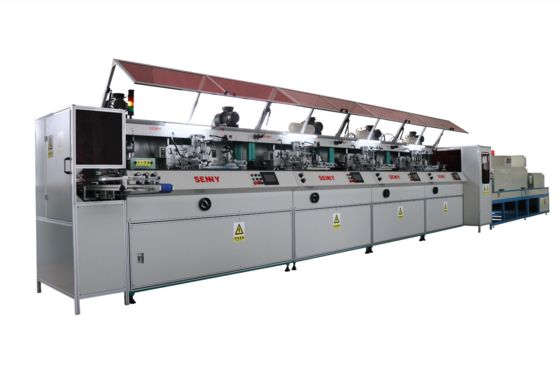

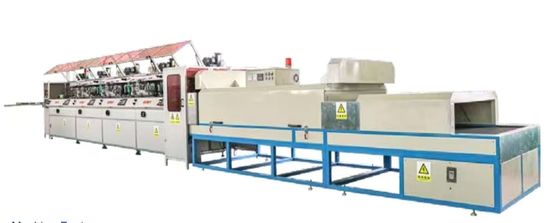

Servo-Driven IR Linear Printing Machine For Plastic Bottle 70 Pcs/Min
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SLS1588-IR5123 |
| Document: | Plastic Bottle printing mac...ne.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 45days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs/month |
|
Detail Information |
|||
| Machine Model: | SLS1588-IR5123 | Printing Color: | 1-8 Colors |
|---|---|---|---|
| Ink Type: | IR Ink | After-sales Services: | Video Or On-line |
| Motor: | Servo Motor | Packaging Detail: | Plywood Package |
Product Description
Servo-Driven IR Linear Printing Machine For Plastic Bottle 70 Pcs/Min
Machine Feature
- The machine is suitable for screen printing of various colors of IR ink on round, oval, square and other shapes of plastic bottles.
- The machine uses digital control servo motor to drive the printing function, easily realizes 360-degree printing. And it is
equipped with remote management and service functions(Industry 4.0).
- The machine adopts well-known brand electrical components, easy-to-use touch screen and PLC control system, with reliable performance.
- The machine adopts a highly customizable modular structure, which can be connected in a straight line to be a 1-8 color printing machine.
- The standard configuration of the machine is a screen printing and IR curing module, and you can choose to connect independent hot stamping, labeling, quality inspection and other modules to form a multi-functional printing machine.
- After the product printing is completed, it is discharged by the manipulator and arranged in a row into the constant temperature drying tunnel furnace to completely cure the ink.
Optional Configuration
- Plasma surface treatment function.
- Hot stamping function.
- Labeling function.
- LED-UV curing function.
Technical Parameters
| Machine Model | SLS1588-IR5123 | SLS1888-IR5123 |
| Max.Printing Length | 250mm | 250mm |
| Max.Printing Height | 200mm | 200mm |
| Bottle Height | 50-280mm | 50-280mm |
| Diameter at 360 degree | 20-140mm | 20-140mm |
| Printing Speed | Up to 50 pcs/min | Up to 50 pcs/min |

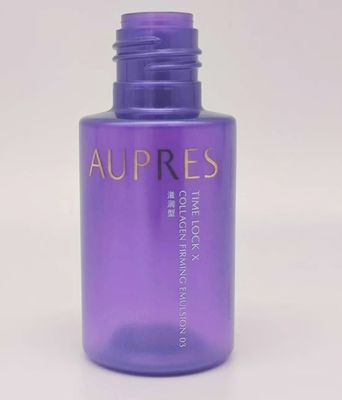

Printing Sample
