1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SLS1888-IR5123 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 45days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs/month |
|
Detail Information |
|||
| Model Number: | SLS1888-IR5123 | Printed Color: | 1-8 Color |
|---|---|---|---|
| After-sales Services: | Video Or On-line | Plate Type: | Linear Screen Printing Machine |
Product Description

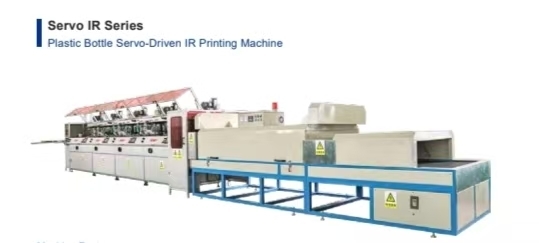

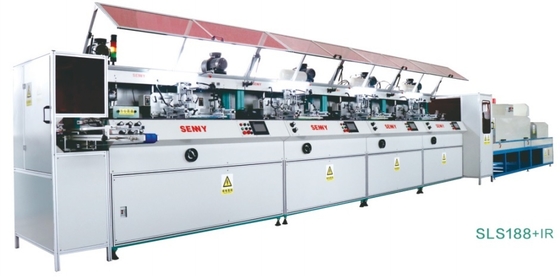

1-8 Color 50 Pcs/Min Plastic Bottle Servo-Driven UV Printing Machine
Machine Feature
-
This machine is ideal for multi-color IR ink screen printing on plastic bottles of various shapes—including round, oval, and square designs.
-
Powered by a digitally controlled servo motor, it enables smooth 360-degree printing and comes equipped with remote management and service capabilities, aligning with Industry 4.0 standards.
-
It features electrical components from renowned brands, an intuitive touchscreen, and a PLC control system, ensuring reliable performance.
-
With a highly customizable modular structure, the machine can be linearly connected to form a 1-8 color printing system.
-
Its standard configuration includes a screen printing module and an IR curing module. For added versatility, it can be connected to independent modules such as hot stamping, labeling, and quality inspection units to create a multi-functional printing solution.
-
After printing, products are discharged by a manipulator, arranged in a row, and fed into a constant-temperature drying tunnel to ensure complete ink curing.
Optional Configuration
- Plasma Surface Treatment Function: This function generates low-temperature plasma to clean and activate container surfaces—such as glass perfume bottles and metal jars—efficiently removing impurities and strengthening adhesion for subsequent printing or labeling.
Technical Parameters
| Machine Model | SLS1888-IR5123 |
| Printing Speed | Up to 50 pcs/min |
| Diameter at 360 degree | 20-170mm |
| Bottle Height | 50-300mm |
| Max Printing Length | 300mm |
| Max Printing Height | 200mm |
Printing your vision
About us:
Senny caters to a diverse range of industries, including food, pharmaceuticals, toys, cosmetics, daily chemicals, electronics, and decorative products. Leveraging advanced automatic printing technologies—such as screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing—we deliver high-quality, intricate graphics and text on the surfaces of products in various shapes, crafted from materials like plastic, metal, glass, and ceramics.
