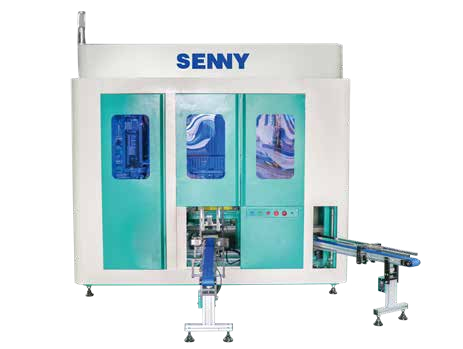

3-Color Glass Ceramics Plastic Jar Tube Bottle Screen Printer Hot Stamping 360-Degree

3-Color Glass Ceramics Plastic Jar Tube Bottle Screen Printer Hot Stamping 360-Degree

Machine Application:

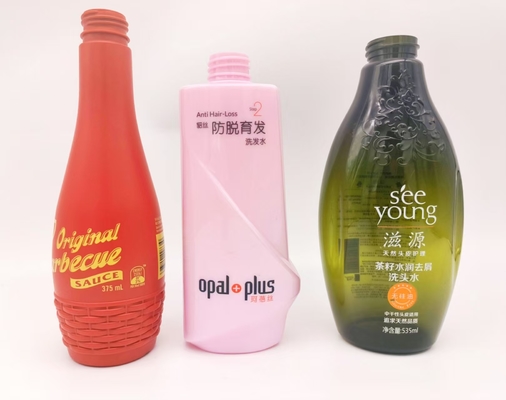

This machine is suitable for 360° seamless all-around printing with 3-color UV ink—featuring fast-drying performance and excellent scratch resistance—on a broad range of products. These products include bottles (e.g., beverage bottles, cosmetic bottles), cans (e.g., food cans, aerosol cans), lids (e.g., bottle caps, jar lids), and other related items. They are available in various shapes such as round, oval, and special shapes (e.g., flat-shaped, multi-faceted), and are crafted from diverse materials including plastic (e.g., PET, PP), glass (e.g., borosilicate glass), and metal (e.g., aluminum alloy, tinplate).

Main Functions:

Wireless tablet control function;

Remote service management function;

Speed-adjustable conveyor belt separated feeding function;

Bottle standing manipulator feeding function;

Digital control servo motor drive 3-color 360-degree printing function;

UV curing function;

Bottle standing manipulator discharge function;

Speed-adjustable conveyor belt discharging function.

Ten workstations: 1. Visual positioning of the bottom of the feeding bottle and electrostatic dust removal; 2. Flame treatment; 3. Visual positioning of the bottle body; 4. 1st color screen printing; 5. LED-UV curing; 6. 2nd color screen printing; 7. LED-UV curing; 8. 3rd color screen printing (or hot stamping); 9. UV curing; 10. Discharging.

Technical Specifications:

What's the difference of linear screen printing machine and CNC rotary screen printing machine?

1. Linear printing machine is faster than CNC rotary machine, but printing accuracy is lower.

2. Linear printing machine is modular combination, more colors means longer floor area, CNC rotary is rotation structure which will save space.

3. CNC printing machine is equiped with remote management and service function, which will be more convenient.

4. For CNC machine, all printing functions will be finished in the same set of fixture, which will avoid product being scratched.

5. All debugging such as printing head, screen frames can be fixed through wireless tablet, but linear machine must be adjusted by hand.

About us:

SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.

SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.

In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.

With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
