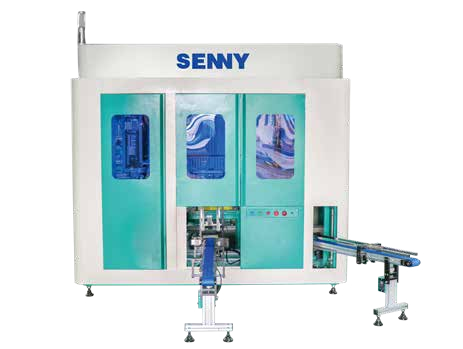

Hot Stamping Glass Ceramics Plastic Bottle Screen Printer LED-UV Curing 3 Color 60pcs/Min
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 3 | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Package Details: | Plywood Package | Payment Terms: | T/T |
| Certification: | CE SGS | ||
Product Description
Hot Stamping Glass Ceramics Plastic Bottle Screen Printer LED-UV Curing 3 Color 60pcs/Min
Machine Features:
The machine is suitable for screen printing various colors of UV ink, hot stamping and other decorations on bottles, jars, caps and other shapes of products, which are made of plastic,metal, glass and other materials.
The machine adopts an integrated turntable design, all printing functions are completed in the same set of fixture, the printing accuracy is as high as ±0.1mm, and the product won't be scratched.
The machine is driven by digital control servo motor to realize 360-degree printing of products, equipped with remote management and service functions (lndustry 4.0).
The machine adopts well-known brand electrical components,PLC control system, easy-to-use touch screen and wireless tablet operation, with reliable performance.
Main Functions:
Wireless tablet control function;
Remote service management function;
Speed-adjustable conveyor separation feeding function;
Bottle standing robot feeding function;
Digitally controlled servo motor drive for 3-color 360-degree printing;
UV curing function;
Standing robot bottle discharge function;
Conveyor discharge function with adjustable speed.
Ten workstations:
1. Visual positioning and electrostatic dusting of the bottom of the feed bottle;
2. Flame treatment
3. Visual positioning of the bottle
4. First color screen printing
5. LED-UV curing
6. Second color screen print
7. LED-UV curing
8. Third color screen printing (or hot stamping)
9. UV curing
10. Discharge.
Technical Specifications:
| Specification/Model | SRS288 | SRS388 | SRS488 | SRS688 |
| Station | 8 | 10 | 12 | 16 |
| Printing Color | 2 | 3 | 4 | 6 |
| Printing Speed | Up to 55pcs/min |
| Diameter of 360° | 13–100mm |
| Height of bottle | 20–320mm |
| Printing length | 320mm |
| Printing height | 220m |
Applications:
SRS388 CNC Automatic UV Screen Printing Machine is an automatic UV screen printing machine. The printing scope is very wide and it can be used for screen printing of various containers such as container bottles, round bottles, flat bottles, irregular containers, etc.

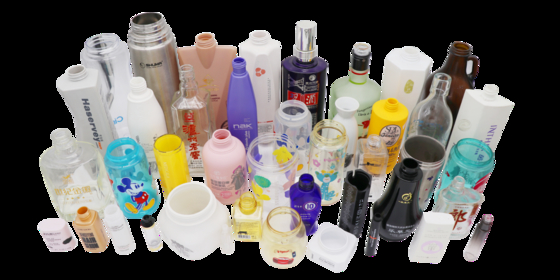

Printing sample
What is the difference between a linear screen printing machine and a CNC rotary screen printing machine?
1. Straight line screen printing machine is faster than CNC rotary screen printing machine, but the printing accuracy is lower.
2. Straight line presses are modular combinations, the more colors the larger the footprint, while CNC rotary is a rotating structure that will save space.
3. CNC printers are easier to use with remote management and service feature.
4. For CNC machine, all printing functions will be done in the same set of fixture, which will avoid the product being scratched.
5. All adjustments such as printing head, screen frame etc. can be fixed by wireless tablet PC, but linear machine must be adjusted manually.
