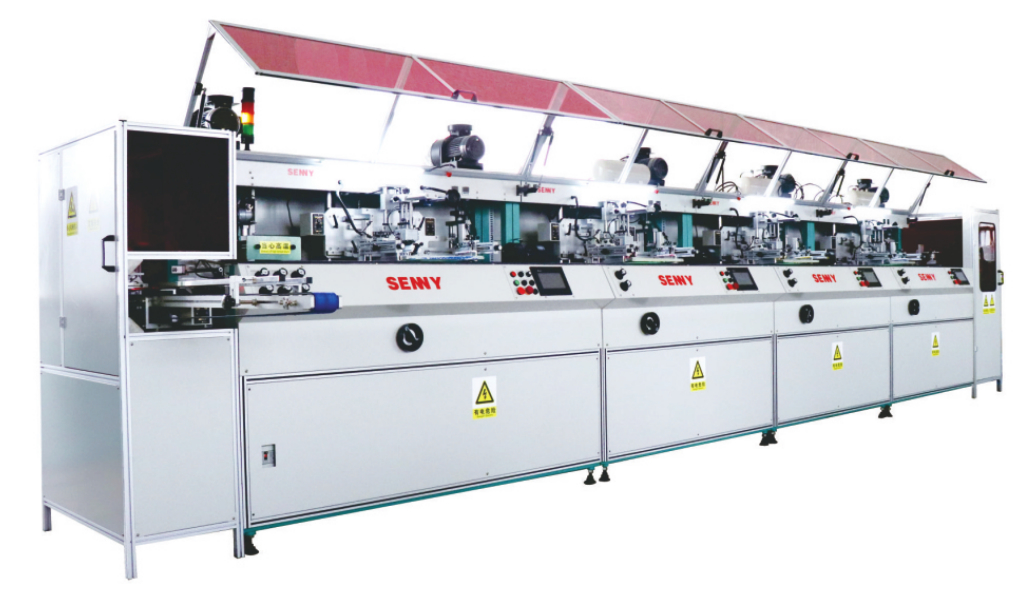

Fully Automatic Modular Bottle Screen Printer with IR Curing
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SLS1888-IR5312 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1 To 12, Can Be Customized | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Payment Terms: | T/T | Delivery Time: | 45days |
| Certification: | CE SGS | ||
| Highlight: | modular bottle screen printer with drying function,plastic bottle screen printer 120°C max temperature,can screen printer with independent drying |
||
Product Description
Modular Bottle Screen Printer for Plastic Bottles and Cans Independent Drying Function and 120 deg Maximum Temperature
Machine Features:
- This machine is suitable for screen-printing IR inks of various colors on plastic bottles with shapes such as round, oval, and square.
- The machine adopts a digitally controlled servo motor to drive products for 360-degree printing, enabling Industry 4.0 remote management and services. This allows for real-time monitoring of equipment operation status, remote parameter adjustment, and timely troubleshooting, greatly improving production management efficiency and reducing maintenance response time.
- It is equipped with electrical components from well-known brands, along with an easy-to-use touchscreen operation and a PLC control system, ensuring reliable performance. The user-friendly interface makes operation simple even for new operators, while the stable control system guarantees consistent printing quality and minimizes operational errors.
- Featuring a highly customizable modular structure, the machine can be linearly connected to form a 1-8 color printing press. This modular design not only facilitates flexible configuration according to different production needs but also simplifies future upgrades and expansions, allowing enterprises to adjust production capacity and functions in a cost-effective manner.
- The standard configuration of the machine includes screen-printing and IR curing modules. It can also be optionally connected with independent modules such as hot stamping, labeling, and quality inspection to form a multi-functional printing press. This integration of multiple processes enables one-stop production from printing to post-processing, significantly enhancing overall production efficiency and product added value.
- After the product printing is completed, it is discharged by a manipulator, arranged in an orderly manner, and enters a constant-temperature drying tunnel furnace to fully cure the ink. This automated discharging and curing process ensures uniform ink curing, improves product stability, and avoids quality issues caused by manual handling.
Technical Specifications:
| Specification/Model | SLS1888-IR5312 |
| Printing speed | Up to 40pcs/min |
| Diameter of bottle | 20–160mm |
| Height of bottle | 50–300mm |
| Printing length | 300mm |
| Printing height | 250mm |
Applications
SLS1888-IR 5312 CNC Plastic Bottle Servo-Driven IR Brushing Machine is a fully automatic plastic bottle surface treatment equipment. Its application range is quite extensive, and it can be used for surface brushing treatment of various plastic bottles, such as PET bottles, PE bottles, PP bottles, PVC bottles, etc.
This model is suitable for printing various colors of thermosetting inks on the surface of plastic round, oval, square bottles and cans (e.g. feed bottles, water bottles).
The printing function of the machine is servo-driven, allowing easy 360-degree printing through digital control.
The machine is modular, with each module containing independent screen printing and hot-air surface drying functions, and linear combination connections for up to an 8-color integrated production line.
After printing, the finished product enters an oven at a maximum temperature of 120° and is baked by a robot for 10 minutes for complete curing.
