Plastic Jar Modular Cylindrical Bottle Screen Printer 100pcs/Minute
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1466 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| Printed Colors: | 1 To 12 | Printing Durability: | High Durability |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Plastic Jar Bottle Screen Printer,100pcs/Minute Bottle Screen Printer,Modular Cylindrical Bottle Screen Printer |
||
Product Description

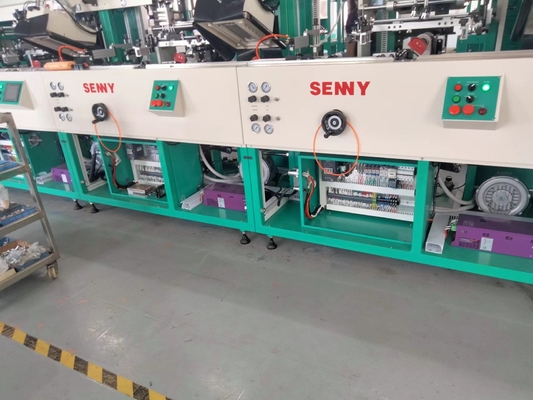

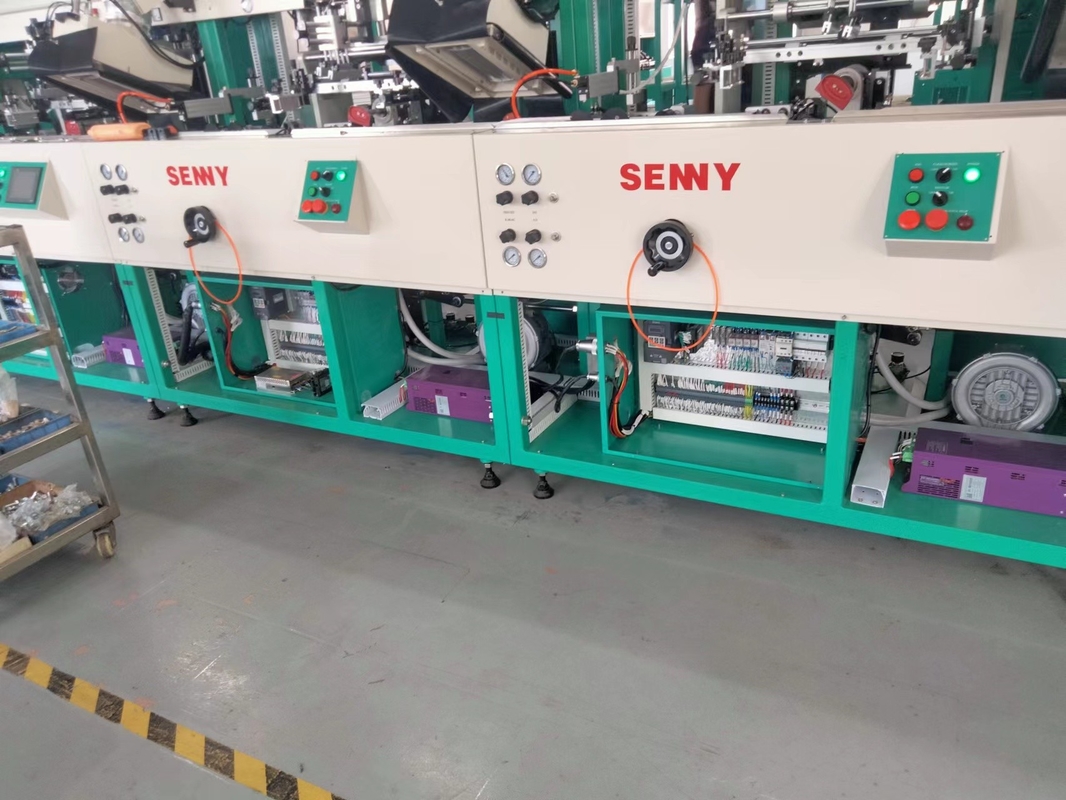

Plastic Bottle & Jar Printer Modular Cylindrical Screen Printing Machine 100pcs/Min
Features:
SL1466: Automatic printer for printing UV inks in different colors on cylindrical plastic bottles. Developed for the printing of round bottles, it is 50% faster to set up than conventional models and easy to operate.
The machine has a modular construction, each module includes flame treatment, screen printing and UV curing functions, and can be linearly connected to achieve an integrated production line of up to 8 colors.
The machine can be connected to a foil stamping or labeling module to become a multifunctional printing line with screen printing and foil stamping or labeling; it can also be connected to a visual product inspection module after printing to replace manual inspection.

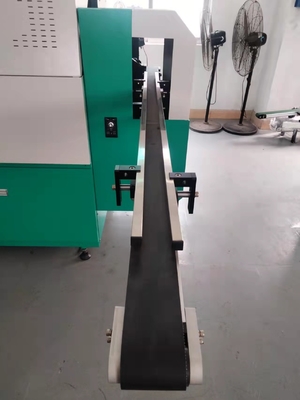

The bottle feeding conveyor can be directly connected with bottle making equipment or with automatic bottle trimmer to replace manual bottle feeding. After the printing process, the discharge can be connected to the bagging machine to save labor.
Technical Specifications
| Machine running speed | Up to 100pcs/min |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW(1 color ) * N colors |
| Machine weight | Main machine-1200kgs; Auxiliary machine-1000kgs |
| Machine size |
Main machine-L 2900mm * W 1200mm * H 2000mm(excluding feeding and uploading convey belt) Auxiliary machine-L 1900mm * W 1200mm * H 2000mm |
Main functions:
Gearbox feeding function; robot vacuum directional feeding function; host speed motor drive surface treatment function; electrostatic dust removal function; flame surface treatment function; pre-positioning function; container adjustable pressure inflatable printing function; automatic screen printing function; motorized printing head lifting and lowering function is convenient for screen loading and unloading; screen motorized lifting and lowering is convenient for wiping the net function; high-intensity U.S. UV lamp curing function (optional LED-UV curing function); cylindrical container through the UV speed motor rotation function; robot vacuum unloading function; unloading speed conveying function. UV curing function; cylindrical container through the UV speed motor rotation function; robot vacuum unloading function; unloading speed conveyor function.
Customer Factory using our machine
Exihibition Show
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
