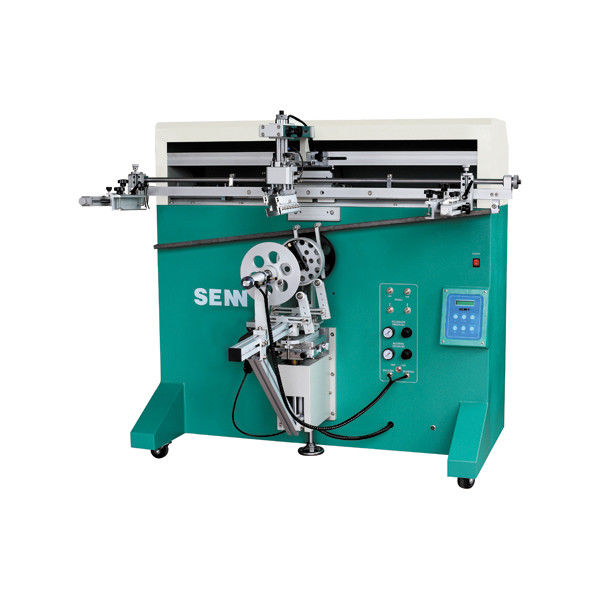

Semi Automatic Screen Printing Machine , 600pcs/Hr Industrial Screen Printer
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SA1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Condition: | New |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Industrial Semi Automatic Screen Printing Machine,600pcs/Hr Semi Automatic Screen Printing Machine |
||
Product Description
Rounded Plastic Buckets Semi Automatic Screen Printing Machine 1 To Multi Colors Max Printing Diameter Φ300mm
Technical Characteristics:
1. microcomputer control each function action, high degree of automation, simple and convenient operation.
2. Built-in 4-digit automatic counter and reset function.
3. the machine has 9 kinds of speed selections, which can meet different printing requirements.
4. with container filling and pressure adjustment function.
5. Squeegee pressure is adjustable, and the squeegee parts have X, Y, Z and Z-R direction and angle fine-tuning function.
6. The table and frame parts can realize X, y, Z and xy-r direction and angle adjustment function.
Application Scope:
Primarily used for single to multi-color repeat screen printing of round plastic containers for detergents, cosmetics, pharmaceuticals, foodstuffs and decorative items.
Technical Specifications:
According to printing area's size, we have below different machines:
| Mode | SA250 | SA400 | SA700 | SA1000 |
| Max. printing area | 200X250mm | 350X250mm | 600X250mm | 900X250mm |
| Max.screen frame size | 450X400mm | 550X400mm | 850X400mm | 1200X400mm |
| Max.printing diameter | Φ100mm | Φ120mm | Φ200mm | Φ300mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr | up to 800pcs/hr | up to 600pcs/hr |
Specific technical points for SA1000
| Power supply voltage | 220V, 50HZ |
| Power consumption | 50W |
| Air supply pressure | 4-6 kg/cm2 |
| Machine weight | 250kg |
| Dimensions | L1450×B1150×H1300mm |
