380V 2.2kw Semi Automatic Screen Printing Machine For Making Stencil
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SB6090 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 20PCS/month |
|
Detail Information |
|||
| Plate Type: | Semi Automatic | After-sales Service Provided: | Video Technical Support And On-line Support |
|---|---|---|---|
| Condition: | New | Warrenty: | One Year |
| Proximity Exposure: | Vacuum Contact | Vacuum Frame Size: | 600 X 900mm |
| Highlight: | 380V semi automatic screen printing machine,2.2kw semi automatic screen printing machine,2.2kw screen printing stencil machine |
||
Product Description

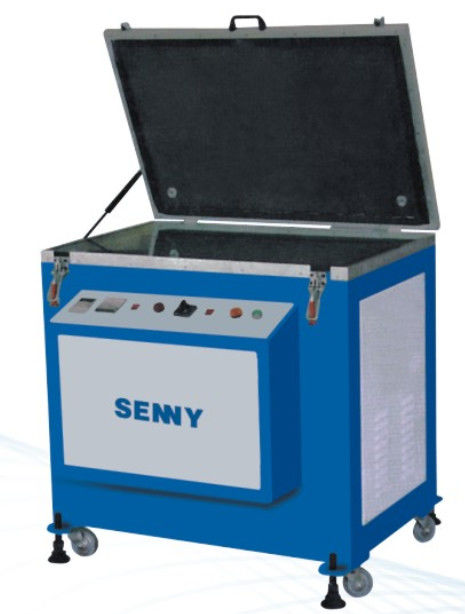

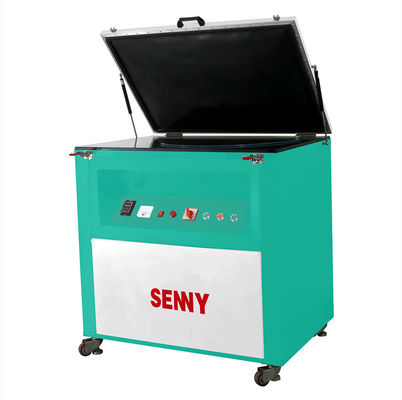

Semi Automatic Vacuum Exposure Unit Screen Printing For Making Stencil, Vacuum Frame Machine
Application Scope:
This automatic exposure machine used for exposing the high quality stencils for half tone jobs and highly dense line stencils.
Features and Performance:
1. Fast start type exposure systems (including exposure lamp, the trigger capacitors, transformers, etc. ); Stability and uniform light intensity and exposure patterns Fine lines.
2. Importing seal blanket, soft and good elasticity, soft and Durability, sealing and attached nature are particularly good.
3. Brand high efficiency energy-saving lamp, strong exposure and long life duration, improving the precision of exposure.
4. Adopt special energy-saving glass and ensure the flatness of working table, In order to ensure the accuracy of exposure.
5. High-powered suction vacuum powerful machine, ensure the closely touch of film and screen plate, in order to ensure precision of exposure, so that the graphics will not be reduced, enlarge, or offset.
6. The surface adopt electrostatic spray and stoving varnish, ensure the durability and anti-corrosive of machine.
Product specifications:
| Power voltage |
380V 50Hz |
| Power consumption |
2.2 kw |
| Machine Weight | 100KG |
| Lamp Power |
2 kw |
| Dimensions |
L1000×B900×H1100mm |
