Semi Automatic Screen Printer 300X250mm , SGS Bottle Printing Machine
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SA400-D2/D4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Automatic Grade: | Semi-automatic |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| Printing Color: | Multi Colors | Machine Color: | Customerized Or As Pic |
| Highlight: | 300X250mm semi automatic screen printer,SGS semi automatic screen printer,SGS bottle printing machine |
||
Product Description
Cylindrical/Elliptical/Irregular Bottle And Container Servo-Drive Semi Automatic Screen Printing Machine Printer
Technical Characteristics
This is a well designed and versatile machine. The SA400-D2 can screen print on cylindrical and Elliptical objects, and SA400-D4 can make screen print on irregular or complex shapes such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes, etc.
The SA400-D2/D4 features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the SA400-D2/D4 the perfect all around universal screen printing press.
- • Pneumatic controlled with shock absorbers
- • Microprocessor controlled - PCB
- • Vertical part lift with height adjustment
- • Print stroke controlled with rodless cylinder
- • X/Y/R positioning ware-mounting table
- • Linear ball bearings on hardened shafts
- • Squeegee tilt, skew, and height adjustable
- • Screen frame angle & tilt adjustable
- • Synchronized bottle inflation system with regulator
- • Regulated squeegee pressure with pressure gauge
- • Floor levelers & casters
- • Foot switch controlled
- • Servo-drive, more stable
Application Scope:
It is mainly used for one color to multi color repeated screen printing of round/oval/irregular plastic containers such as washing products, cosmetics, pharmaceuticals, food and decorative products.
Technical Specifications:
SA400-D2 is for cylindrical and elliptical containers and SA400-D4 is for irregular/complex objects:
| Mode | SA400-D2 | SAS400-D4 | SA1200-D2 |
| Container shape | Cylindrical and Elliptical | Irregular | Cylindrical and Elliptical |
| Max. printing area | 300X250mm | 300X250mm | 1000X250mm |
| Max.screen frame size | 550X400mm | 550X400mm | 1200X400mm |
| Max.printing diameter | Φ100mm | Φ100mm | Φ300mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr | up to 600pcs/hr |

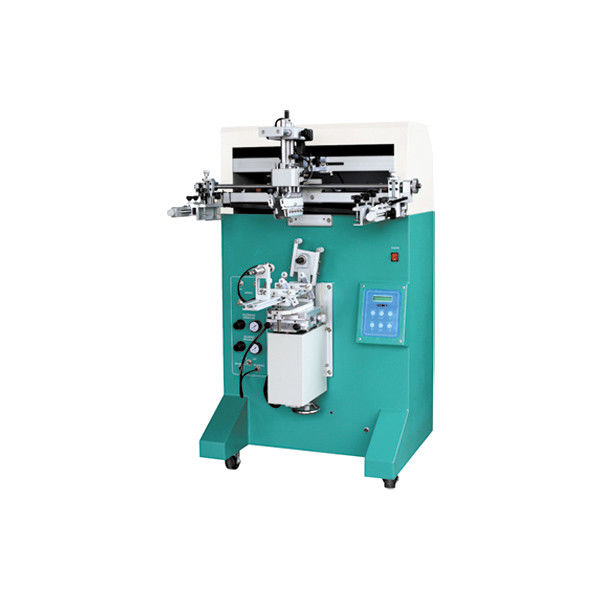

SA400-D2

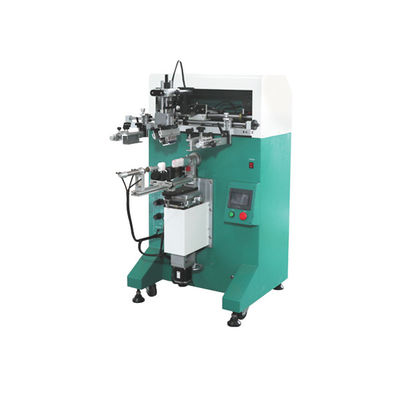

SA400-D4
Printing samples
Customer's factory using our machine:
