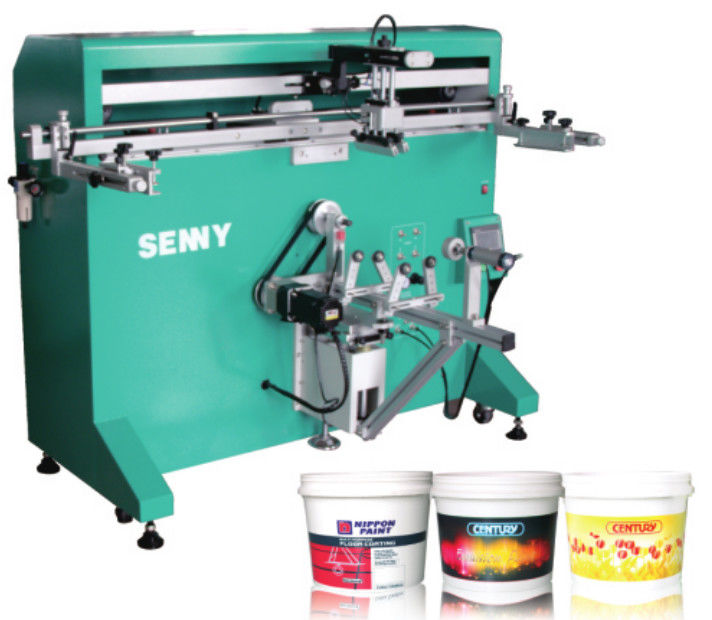

1000X250mm Semi Automatic Screen Printing Machine For Bucket
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SA1200-D2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Printed Colors: | Multi Colors | Plate Type: | Screen Printing Machine |
|---|---|---|---|
| Printing Durability: | High Durability | Automatic Grade: | Semi-automatic |
| Warranty: | 1 Year | Machine Color: | Customerized Or As Pic |
| Highlight: | 1000X250mm Semi Automatic Screen Printing Machine,Bucket Semi Automatic Screen Printing Machine |
||
Product Description
Semi Automatic Screen Multicolor Printer Servo Drive Silk Screen Printing Machine For Round And Oval Buckets
Technical Specifications:
SA400-D2 and SA1200-D2 is for cylindrical and elliptical containers, only different size of container; SA400-D4 is for irregular/complex objects:
| Mode | SA400-D2 | SAS400-D4 | SA1200-D2 |
| Container shape | Cylindrical and Elliptical | Irregular | Cylindrical and Elliptical |
| Max. printing area | 300X250mm | 300X250mm | 1000X250mm |
| Max.screen frame size | 550X400mm | 550X400mm | 1200X400mm |
| Max.printing diameter | Φ100mm | Φ100mm | Φ300mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr | up to 600pcs/hr |
Technical Characteristics
The SA1200-D2 is a well-designed, versatile machine that can screen print on cylindrical and oval objects, and the SA400-D4 can screen print on irregular or complex shapes, such as blow-molded bottles, cosmetic tubes, aluminum water bottles, drumsticks, glass straws, etc.
The SA1200-D2 features quick and easy mold changes, precise mechanical registration, and all controls are on the front panel, making the SA1200-D2 the perfect general purpose screen printer.
- - Pneumatic Control with Shock Absorber
- - Microprocessor Control - PCB
- - Vertical part lift with height adjustment
- - Rodless cylinder to control printing stroke
- - X/Y/R positioning instrument mounting table
- - Linear ball bearings on hardened shafts
- - Squeegee tilt, skew and height adjustable
- - Adjustable screen frame angle and tilt
- - Synchronized bottle filling system with regulator
- - Adjustable squeegee pressure with pressure gauge
- - Floor level and castors
- - Foot switch control

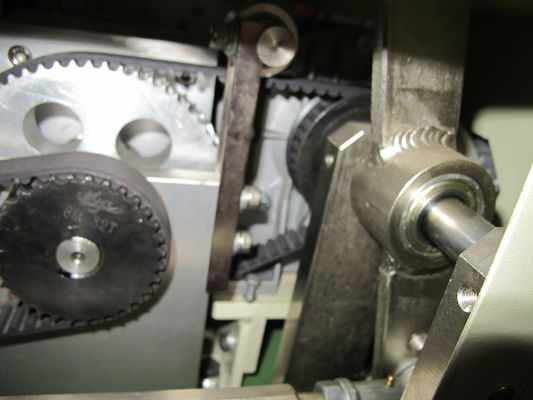

- - Servo drive for greater stability
Application Scope:
The main applications are single to multi-color repeat screen printing on round/oval plastic containers for detergents, cosmetics, pharmaceuticals, food and decorative items.

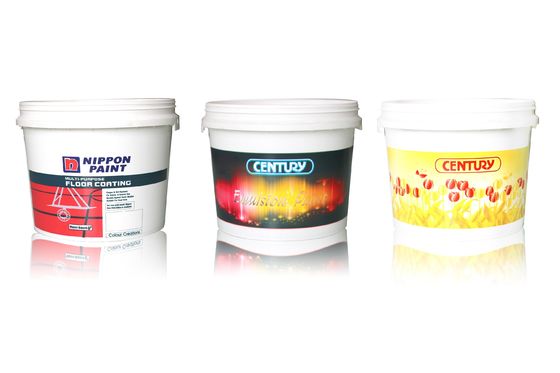

Printing samples
