Servo Motor Digital Silk Screen Printing Machine With Max Printing Area 350 X250mm Foot Control
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SBS380 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Automatic Grade: | Semi-automatic |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| Printing Color: | 1 Color Or Multi Colors | Machine Color: | Customerized Or As Pic |
| High Light: | 350 X250mm Silk Screen Printing Machine,120mm Silk Screen Printing Machine,1000pcs/hour Silk Screen Printing Machine |
||
Product Description

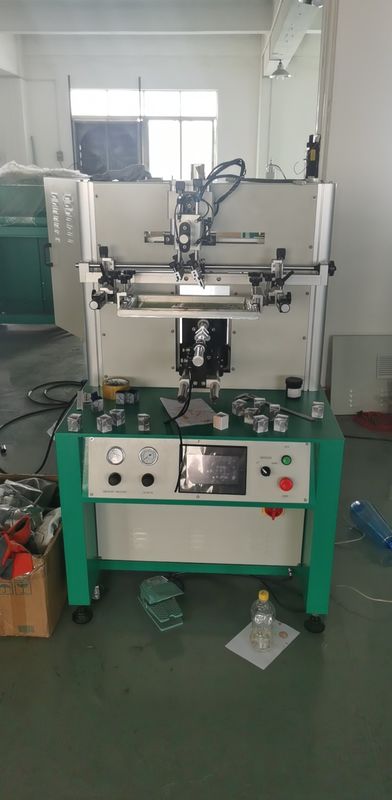

Servo Motor Digital Silk Screen Printer Oval Automatic Screen Printing Machine Max Printing Area 350 X250mm Foot Control
Applications:
1. This is a well designed and versatile machine, can print on variety of shapes, such as cylindrical, square, oval, conical and irregular shape. With quick & simple tooling changeovers, precise mechanical registration & conveniently controls on the front panel, making the perfect universal screen printing device SBS380, can print on glass, metal, plastic, ceramics.
2. It is mainly used for one color to multi color repeated screen printing of round/oval plastic containers such as washing products, cosmetics, pharmaceuticals, food and decorative products.
Technical Specifications:
| Max printing area | L350 X W250mm |
| Max screen frame size | L550 X W400mm |
| Product diameter | Φ120mm |
| Max printing speed | Up to 1000pcs/hour |
Technical Characteristics
1, Electrical servo motor driven for screen frame up/down and horizontal printing.
2, PLC controlled, WEINVIEW touch screen.
3, Panasonic motor and frequency converter.
4, Vertical head lift with height adjustment.
5, X/Y/R positioning table with vacuum table.
6, Linear ball bearings on hardened shafts.
7, Squeegee angle and calibrated height adjustment.
8, Regulated squeegee pressure with pressure gauge.
9, Floor levelers & casters, Foot switch controlled.
10, Installed E-stop button and safety light curtain.
11, Screen frame with auto snap off when printing.
Advantages:
1. If there's register point as above red circle, then no need color sensor if you want to print more than 1 color. We can do customized machine to add sensor or not.
2. SBS380 can print on oval/square/complex shapes of containers
3. SBS380 all are wrapped which is more safty and durable
4. All controlled by servo drive including the lift
