Servo Drive Digital Silk Screen Printer For Round / Oval Bottle
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SBF460-D2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Automatic Grade: | Semi-automatic |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| Printing Color: | Multi Colors | Machine Color: | Customerized Or As Pic |
| High Light: | Servo Drive Digital Silk Screen Printer,Oval Bottle Digital Silk Screen Printer,Round Bottle Silk Screen Printing Machine |
||
Product Description

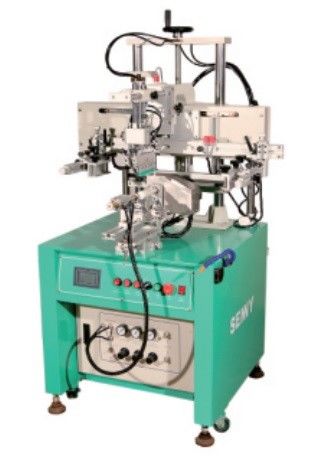

Round/Oval Bottle Silk Screen Printing Machine Semi Automatic Servo Drive Digital Silk Screen Printer
Application Scope:
It is mainly used for one color to multi color repeated screen printing of curved surface plastic containers such as washing products, cosmetics, pharmaceuticals, food and decorative products
Technical Specifications:
Below SBF460F is for flat articles and SBF460-R is for round and oval articles, and SBF460-D2 is fully controlled by servo motor, more stable
| Mode | SBF460-F | SBF460-D2 |
| Max. printing area | 400X250mm | 400X250mm |
| Max.screen frame size | 600X400mm | 600X400mm |
| Max.printing diameter | Φ120mm | |
| Max.printing speed | up to 1000pcs/hr | up to 600pcs/hr |
Technical Characteristics:
- SBF460-D2 is suitable for printing on curved surface, such as round, oval, cone containers.
- Servo driven which effectively reduces noise in operation.
- Stainless printing table can be adjusted in 3 directions to ensure finest registration.
- The printing table also has vacuum function to secure fixing of substrate throughout entire cycle or intermittently.
- Plenty spaces available for printing even very thick matters.
- The squeegee and flood bar can be stopped before or after printing to suit different ink natures and different printing effects.
- Brand-name pneumatic parts are used. Precise shafts and bearings are placed in active parts of the machine to ensure smooth and stable runs.
- Automatic hydraulic equipment is installed to peel the screen off printed surface, which effectively avoids smear defect.
- Squeegee/flood bar depth, pressure, speed, leveling and stroke, etc. are all adjustable to achieve various printing effects.
- Can add sensor register to find the precise position when print 2nd color
Printing samples
