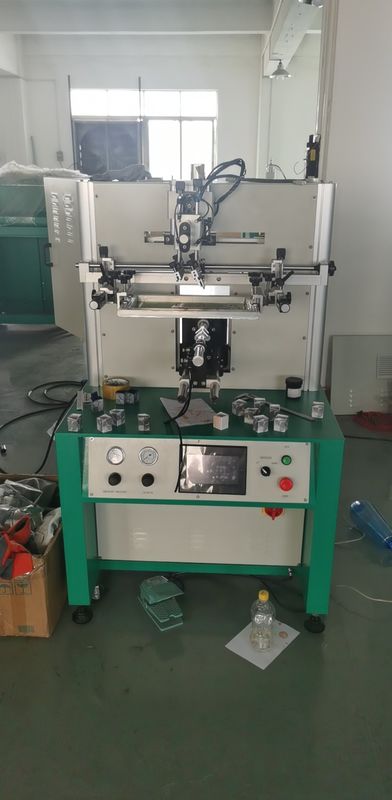

Sensor Registration Silk Screen Printing Machine Servo Drive Foot Control
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SBS380 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Plate Type: | Screen Printing Machine | Automatic Grade: | Semi-automatic |
|---|---|---|---|
| Condition: | New | Warranty: | One Year |
| Printing Color: | Multi Colors | Machine Color: | Customerized Or As Pic |
| High Light: | Sensor Registration Silk Screen Printing Machine,Servo Drive Silk Screen Printing Machine,Foot Control Silk Screen Printer |
||
Product Description
Sensor Register 1 To Multi Colors Semi Automatic Industrial Silk Screen Printing Machine Servo Drive foot Control
Technical Specifications:
| Mode | SBS380 | SBF460-R |
| Max. printing area | 350 X 250mm | 400 X 250mm |
| Max.screen frame size | 550X400mm | 600X400mm |
| Product diameter | Φ120mm | Φ120mm |
| Max.printing speed | up to 1000pcs/hr | up to 1000pcs/hr |
Technical Characteristics
This is a well designed and versatile machine, can print on variety of shapes, such as cylindrical, square, oval, conical and irregular shape. With quick & simple tooling changeovers, precise mechanical registration & conveniently controls on the front panel, making the perfect universal screen printing device SBS380, can print on glass, metal, plastic, ceramics.
- • Pneumatic controlled with shock absorbers
- • Microprocessor controlled - PCB
- • Vertical part lift with height adjustment
- • Print stroke controlled with rodless cylinder
- • X/Y/R positioning ware-mounting table
- • Linear ball bearings on hardened shafts
- • Squeegee tilt, skew, and height adjustable
- • Screen frame angle & tilt adjustable
- • Synchronized bottle inflation system with regulator
- • Regulated squeegee pressure with pressure gauge
- • Floor levelers & casters
- • Foot switch controlled
- • Servo-drive, more stable
Application Scope:
It is mainly used for one color to multi color repeated screen printing of round/oval plastic containers such as washing products, cosmetics, pharmaceuticals, food and decorative products.
1. If there's register point as above red circle, then no need color sensor. We can do customized machine to add sensor or not.
2. SBS380 can print on oval/square/complex shapes of containers
3. SBS380 all are wrapped which is more safty and durable
4. All controlled by servo drive including the lift
