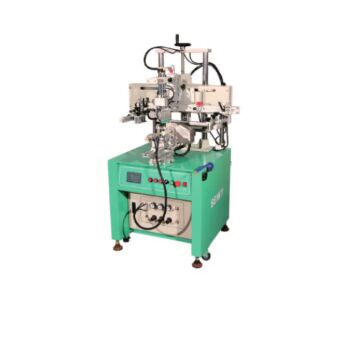

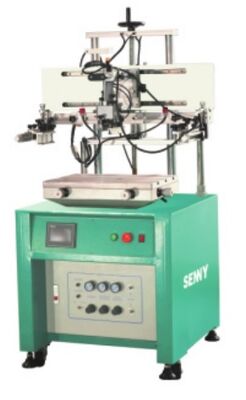

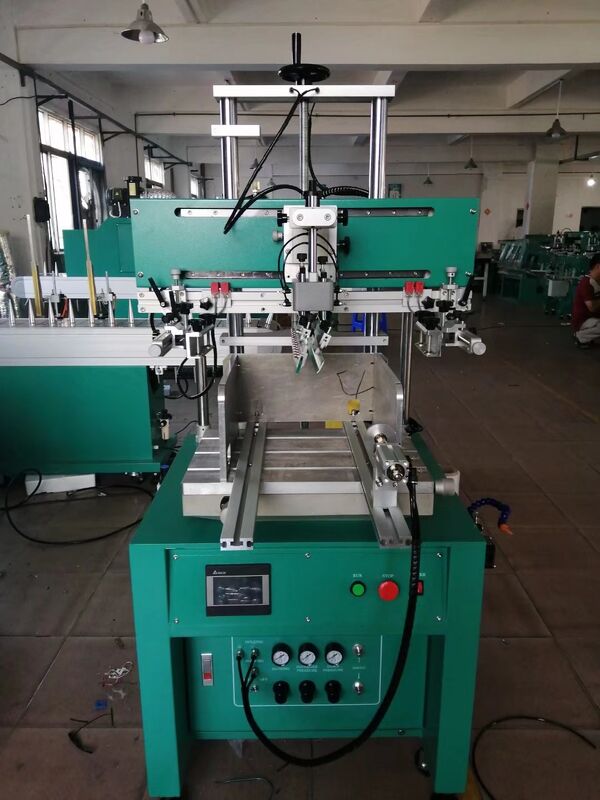

400✖️250 1000pcs/Hr Semi Automatic Screen Printing Machine For Curved Shape Bottle
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SBF460-R |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Maximum Print Size: | Typically Up To 40x50 Cm | Printing Speed: | Up To 600 Pcs/hour |
|---|---|---|---|
| Working Pressure: | 5-6bar | Start Method: | Panel|Foot Switch |
| Weight: | 560KG | Additional Features: | Adjustable Print Pressure, Quick Frame Change |
| Table Size: | 1500×2200mm | Core Components: | Bearing, Motor, Gear |
Product Description
Round And Oval Surface Semi Automatic Precise Screen Printing Machine For Curved Shape Jars, Bottles And Buckets
Feature:
1. Surface: We adopting dusting and painting, which is able to bear solvent
2. Inner: The cylinder is Germany FESTO and Japan SMC.
3. Instllation Kit: Which made by CNC in-process.
4. The screw on the machine which hardness is 12.9 grade;
5. The machine is auotmatic which is controlled by mircro computer.
6. Per location is inductive by electric eye, then which is accurate and perfomrmace optimization;
7. Which can printing cylindrical, conical and great cycle products etc;
It is mainly used for one color to multi color repeated screen printing of flat plastic containers such as washing products, cosmetics, pharma, food and decorative products.
Technical Specifications:
| Mode | SBF460-F | SBF460-R |
| Max. printing area | 400X250mm | 400X250mm |
| Max.screen frame size | 600X400mm | 600X400mm |
| Max.printing diameter | Φ120mm | |
| Max.printing speed | up to 1000pcs/hr | up to 600pcs/hr |
