High-Speed Caps Printing Machine For Seamless Integration With Production Lines
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Senny |
| Certification: | CE,SGS |
| Model Number: | SOC2168 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Film wrapping |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Automatic Grade: | Fully Automatic | Printing Duration: | High Duration |
|---|---|---|---|
| Cercification: | CE SGS | Payment Terms: | T/T |
| Printed Color: | 2 Color | Packaging Details: | Plywood Package |
| Highlight: | high-speed caps printing machine,caps printing machine for production lines,seamless integration caps printing machine |
||
Product Description

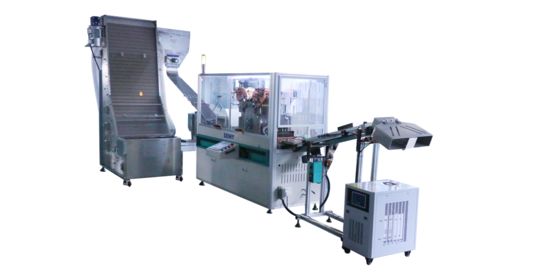

High-Speed Caps Printing Machine For Seamless Integration With Production Lines
PRODUCT
Features
Speed & Capacity FlexibilitySteplessly adjustable printing speed to match production cycles. Adapts to diverse needs – from low-speed proofing to high-speed mass production – and integrates seamlessly with cap injection machines or full cap production lines.
Flexible Coloring & Precision AlignmentModular design with 1-2 or 1-4 color unit options. Equipped with high-precision electronic shaft registration (±0.05mm accuracy) for sharp, ghost-free complex patterns and fine text.
Controllable Ink LayersEach printing unit has an independently adjustable, precision ink metering system. Stepless control of ink film thickness (from ultra-thin to heavy coverage) ensures consistent color saturation.
Smart Operation & Easy MaintenanceElectronic reverse operation simplifies setup, cleaning, and troubleshooting. Removable, ergonomic console. User-friendly HMI with large color touchscreen for easy parameter setting and monitoring.
Stable Electrical & Control SystemsUses premium components (Siemens, Omron, Schneider, etc.). High-performance PLC-based control integrates HMI and servo technology for precise, reliable operation. Optimized design ensures low failure rates and long service life.
Technical parameters
| Machine Model | SOC2168 | SOC4328 |
| Cap Diameter | 28mm-38mm | 28mm-38mm |
| Max Speed | Up to 1600Pcs/Min | Up to 3200Pcs/Min |
| Printing Color | 2-4 color | 2-4 color |
| Printing Area | 24mm-34mm | 24mm-34mm |
| Air Consumption | 600L/Min | 600L/Min |
| Gas Consumption | 150L/Min | 150L/Min |
| Power | 3p 380v 50/60Hz | 3p 380v 50/60Hz |
| Air | 5-7 Bar | 5-7 Bar |
Configuration
- Plasma surface treatment(standrad condiguration is flame surface treatment)
- Bottle sorting machine
- Quanlity inspection machine
Applications

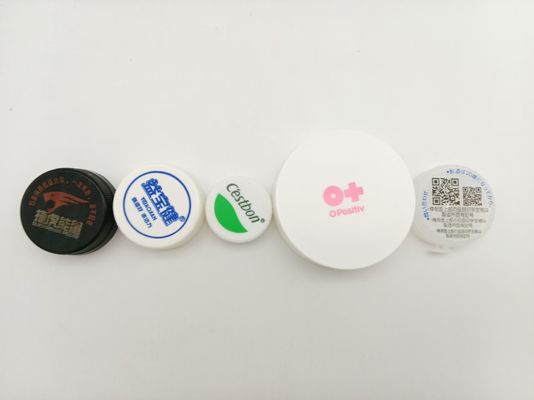

As a fully automatic dual-color UV offset printing device specialized for bottle caps, it boasts a broad application scope. It supports high-precision UV offset printing for various plastic bottle caps, covering:
Specifications & Sizes: PCO1881, PCO1810, 28mm, 38mm, etc.
Material Types: PP caps, PE caps, PET caps
Application Fields: Cosmetic caps, pharmaceutical caps, beverage caps
About us
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
