Automatic 1-Color Covers UV Flat Screen Printing Machine 60 Pcs/Min
Product Details:
| Place of Origin: | China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SFR8110 |
|
Detail Information |
|||
| Machine Model: | SFR8110 | Printing Color: | 1 Color |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Services: | Video Or On-line |
Product Description
Automatic 1-Color Covers UV Flat Screen Printing Machine 60 Pcs/Min
Machine Feature

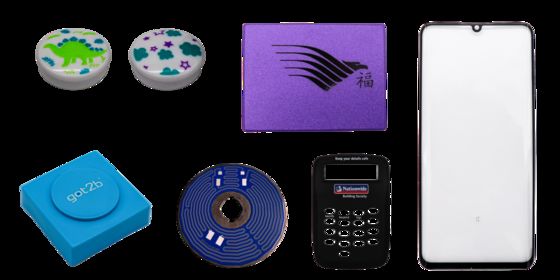

- The machine is highly suitable for screen printing UV ink in a wide range of colors—including vibrant reds, deep blues, and crisp whites—on products of diverse shapes such as round, square, rectangular, or irregularly shaped covers, as well as flat boards like cosmetic jar lids or electronic device panels.
- The machine is equipped with electrical components from well-known international brands (e.g., Siemens or Omron), paired with a advanced PLC control system and an easy-to-operate touch screen featuring an intuitive interface, which together ensure stable and reliable performance even during long-term continuous operation.
Optional Configuration
- Plasma surface treatment function.
- LED-UV curing system.
- Servo positioning function.

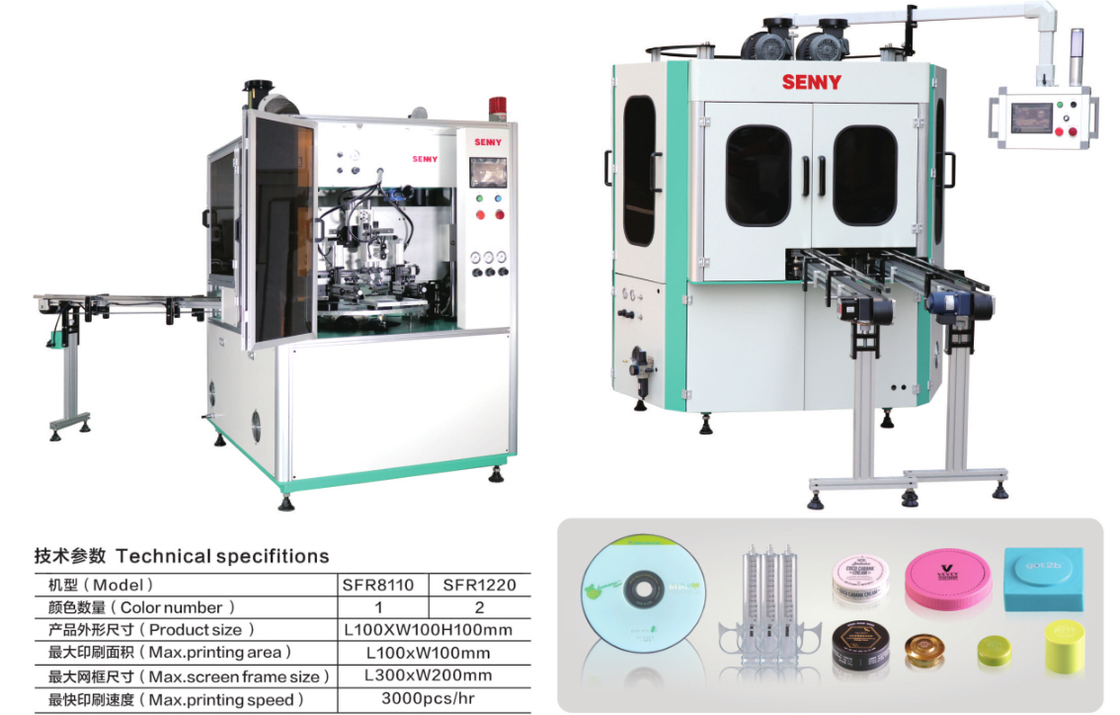

Technical Parameters
| Machine Model | SFR8110 |
| Max.Printing Length | 100mm |
| Max.Printing Width | 100mm |
| Product Thickness | 1-100mm |
| Product Width | 20-100mm |
| Product Length | 20-100mm |
| Printing Speed | Up to 50 pcs/min |
Printing Your Vision
About us:
In 2022, Senny successfully launched a high-speed fully automatic 2-color UV cured offset printing production line for bottle caps, equipped with supporting production lines for cutting rings, printing, and testing that are connected to high-speed capping machines; The machine has high reliability and can produce continuously without stopping for a long time.
In 2023, after years of research and development, Senny began mass production of bottles, cans, lids, and other containers in various shapes made of materials such as plastic, glass, and metal. The container CNC 2-color, 3-color, 4-color, and 6-color UV curing screen printing machines have the main advantages of servo motor synchronous drive, digital operation, wireless tablet computer control, remote management service, high printing accuracy, simple machine operation, and wide application range.
