1.2kw Round Bottle Sticker Labeling Machine , 40pcs/Min Automatic Labelling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SY200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Product Shape: | Square And Polygonal | Machine Type: | Labeling Stickers |
|---|---|---|---|
| Printing Durability: | High Durability | Weight: | 185kg |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | Round Bottle Automatic Labeling Machine,40pcs/Min Automatic Labeling Machine,1.2kw Automatic Labeling Machine |
||
Product Description

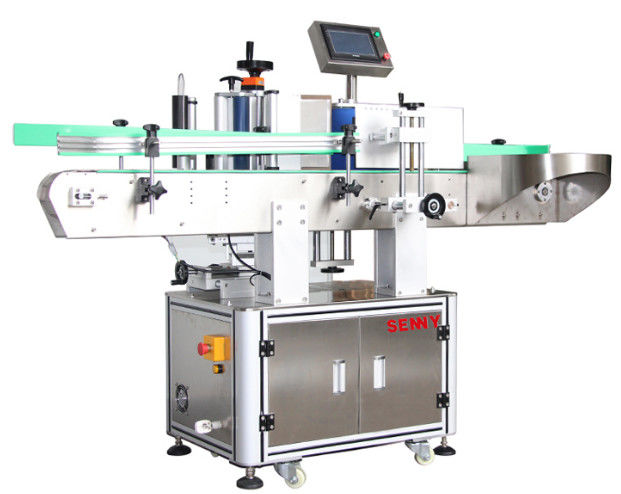

Automatic Rolling Vertical Round Bottle Labeling Machine For PP, PE, PET, Glass
Catalog 05- labeling machine-1.pdf
SY200 working process:
bottle loading --- bottle splitting --- labeling detection --- labeling and pressing labels --- product conveying --- bottle placing.
Application:

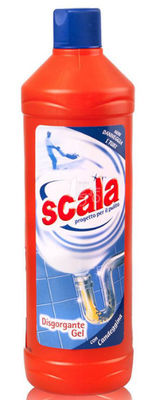

It can be used to label food cans, cosmetic bottles, medicine bottles and other cylindrical items; if another color-coordinated tape coding machine is equipped, it can realize labeling and printing information such as production lot number at the same time.
Technical specifications (The following are the technical parameters of the standard model. (Other special requirements and functions can be customized):
| Model |
SY200 |
Sticker turning out speed |
5～25m/min |
| Sticker length |
20mm～285mm |
Labeling speed |
40～120pcs/min |
| Sticker width |
15mm～150mm |
Conveying speed |
5～25m/min |
| Product diameter |
φ25mm～φ100mm |
Weight |
185kg |
| Product heigth |
φ25mm～φ230mm |
Power voltage |
220V 50HZ |
| Sticker roll's external diameter |
φ280mm |
Power |
1.2KW |
| Sticker roll's inner diameter |
φ76mm |
Conveying orientation |
fm left to right |
| Labeling accuracy |
±1mm |
Machine dimensions |
1900*1300*1350mm |
