120pcs/Min Automatic Labeling Machine , 1.2KW Automatic Bottle Labeler
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SY200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 100pcs /month |
|
Detail Information |
|||
| Plate Type: | Labeling Stickers | Product Shape: | Square And Polygonal |
|---|---|---|---|
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Weight: | 185kg | Power Voltage: | 220V 50HZ |
| Highlight: | 1.2KW automatic labeling machine,1.2KW automatic bottle labeler,120pcs/min automatic labeling machine |
||
Product Description

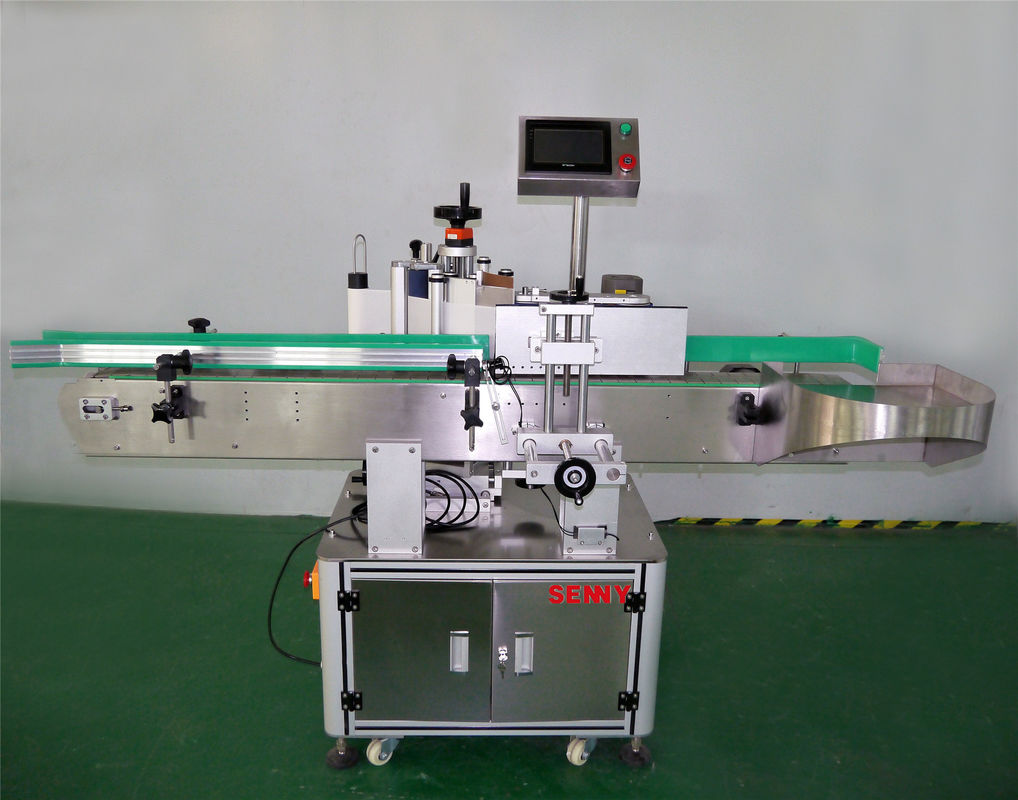

Cylindrical Bottles/Cans Automatic Labeling Machine In Food, Cosmetics, Medicine Industry
Catalog 05- labeling machine-3_compressed.pdf
Application:
It can be used to label all kinds of cylindrical items, such as food cans, cosmetics round bottles, medicine bottles, etc; If there is another color matching tape coding machine, it can realize labeling and print production batch number and other information at the same time.
Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
| Model |
SY200 |
Sticker turning out speed |
5～25m/min |
| Sticker length |
20mm～285mm |
Labeling speed |
40～120pcs/min |
| Sticker width |
15mm～150mm |
Conveying speed |
5～25m/min |
| Product diameter |
φ25mm～φ100mm |
Weight |
185kg |
| Product heigth |
25mm～230mm |
Power voltage |
220V 50HZ |
| Sticker roll's external diameter |
φ280mm |
Power |
1.2KW |
| Sticker roll's inner diameter |
φ76mm |
Conveying orientation |
fm left to right |
| Labeling accuracy |
±1mm |
Machine dimensions |
1900*1300*1350mm |
Product Features:
1. User friendly touch screen, simple and convenient operation, complete functions, rich online help functions, and a number of early warning tips;
2. High quality labeling effect, using elastic pressure coating sponge belt, flat labeling, no wrinkles, to achieve perfect labeling packaging quality;
3. Flexible application, vertical labeling of bottles, automatic bottle separation, stand-alone production or assembly line production;
4. Intelligent system control, automatic photoelectric tracking and identification, no labeling, fault prompt and other functions;
5. The equipment has high stability. It adopts the advanced electric control system composed of Panasonic PLC + maintenance control touch screen + Panasonic needle shaped electric eye + laoyishi / italitis label electric eye, which supports the 7x24 hour operation of the equipment;
6. New mechanism application: the head base adopts 6-DOF adjustment mechanism, and the height adjustment adopts three bar adjustment mechanism, which is simple, convenient and efficient;
7. Optional functions: hot coding / inkjet, automatic loading and unloading, automatic receiving, adding labeling device, other functions (customized according to customer requirements).
SY200 working process:
bottle loading --- bottle splitting --- labeling detection --- labeling and pressing labels --- product conveying --- bottle placing.
