1.2kw Round Bottle Sticker Labeling Machine , 40pcs/Min Auto Labeller Machines
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SY200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 100pcs /month |
|
Detail Information |
|||
| Plate Type: | Labeling Stickers | Product Shape: | Square And Polygonal |
|---|---|---|---|
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Weight: | 185kg | Power Voltage: | 220V 50HZ |
| Highlight: | 40pcs/min round bottle sticker labeling machine,1.2kw round bottle sticker labeling machine,40pcs/min auto labeller machines |
||
Product Description

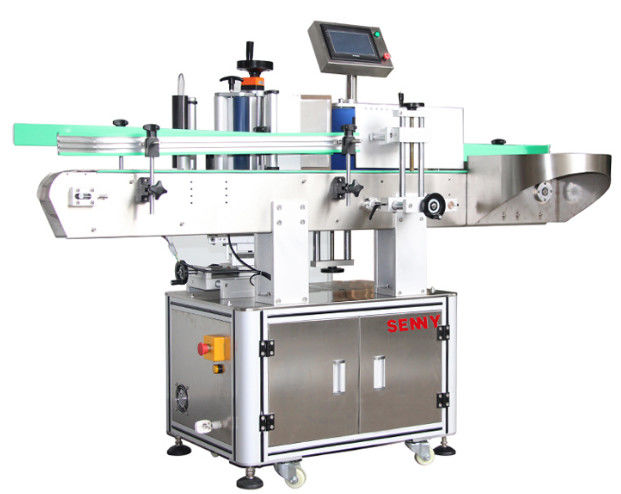

Automatic Rolling Vertical Round Bottle Labeling Machine For PP, PE, PET, Glass
Catalog 05- labeling machine-1.pdf
SY200 working process:
bottle loading --- bottle splitting --- labeling detection --- labeling and pressing labels --- product conveying --- bottle placing.
Application:
It can be used to label all kinds of cylindrical items, such as food cans, cosmetics round bottles, medicine bottles, etc; If there is another color matching tape coding machine, it can realize labeling and print production batch number and other information at the same time.
Technical Specifications(The following are the technical parameters of the standard model. Other special requirements and functions can be customized):
| Model |
SY200 |
Sticker turning out speed |
5～25m/min |
| Sticker length |
20mm～285mm |
Labeling speed |
40～120pcs/min |
| Sticker width |
15mm～150mm |
Conveying speed |
5～25m/min |
| Product diameter |
φ25mm～φ100mm |
Weight |
185kg |
| Product heigth |
φ25mm～φ230mm |
Power voltage |
220V 50HZ |
| Sticker roll's external diameter |
φ280mm |
Power |
1.2KW |
| Sticker roll's inner diameter |
φ76mm |
Conveying orientation |
fm left to right |
| Labeling accuracy |
±1mm |
Machine dimensions |
1900*1300*1350mm |
