120pcs/Minnte Auto Labeling Machine , 1.2KW Auto Bottle Labeler
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SY200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 1 Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Product Shape: | Square And Polygonal | Machine Type: | Labeling Stickers |
|---|---|---|---|
| Printing Durability: | High Durability | Condition: | New |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 1.2KW Auto Labeling Machine,120pcs/Minnte Bottle Labeler,120pcs/Minnte Auto Labeling Machine |
||
Product Description

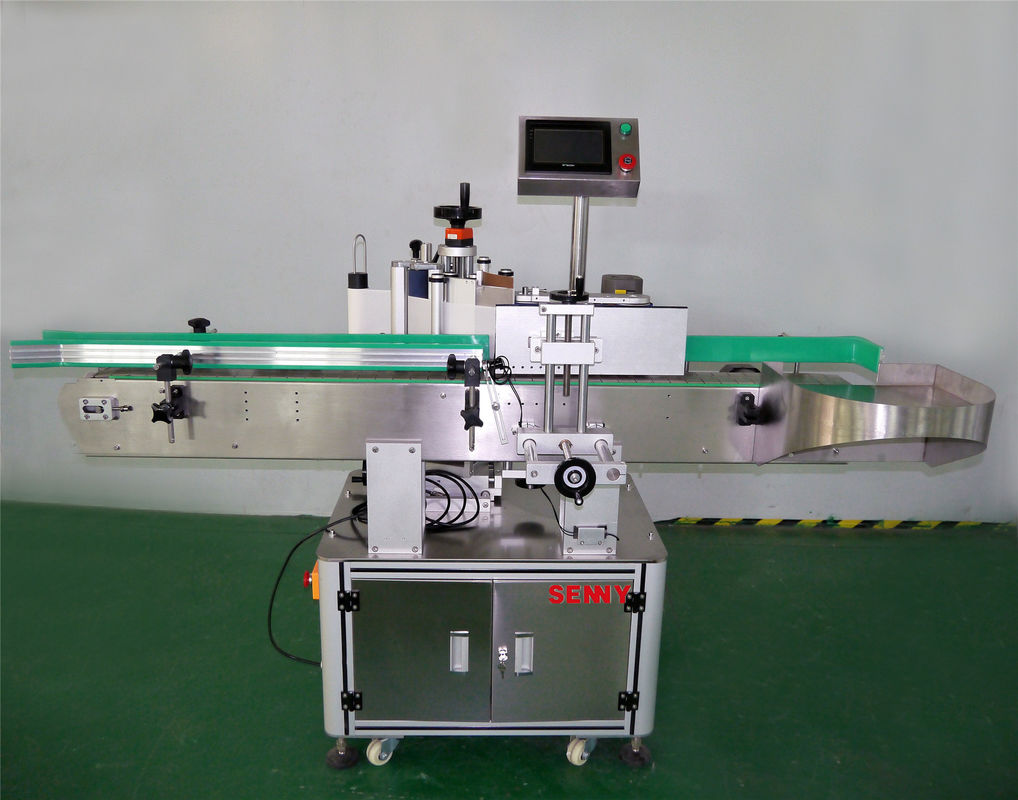

Cylindrical Bottles/Cans Automatic Labeling Machine In Food, Cosmetics, Medicine Industry
Catalog 05- labeling machine-3_compressed.pdf
Application:
It can be used to label food cans, cosmetic bottles, medicine bottles and other cylindrical items; if another color-coordinated tape coding machine is equipped, it can realize labeling and printing information such as production lot number at the same time.
Technical specifications (The following are the technical parameters of the standard model. (Other special requirements and functions can be customized):
| Model |
SY200 |
Sticker turning out speed |
5～25m/min |
| Sticker length |
20mm～285mm |
Labeling speed |
40～120pcs/min |
| Sticker width |
15mm～150mm |
Conveying speed |
5～25m/min |
| Product diameter |
φ25mm～φ100mm |
Weight |
185kg |
| Product heigth |
25mm～230mm |
Power voltage |
220V 50HZ |
| Sticker roll's external diameter |
φ280mm |
Power |
1.2KW |
| Sticker roll's inner diameter |
φ76mm |
Conveying orientation |
fm left to right |
| Labeling accuracy |
±1mm |
Machine dimensions |
1900*1300*1350mm |
Product Features:
1. User-friendly touch screen, easy and convenient operation, full-featured, rich online help functions and a number of early warning tips;
2. High-quality labeling effect, using elastic pressure-coated sponge belt, labeling smooth, no wrinkles, to achieve perfect labeling packaging quality;
3. Flexible application, can realize bottle vertical labeling, automatic bottle separation, single machine production or assembly line production;
4. Intelligent system control, automatic photoelectric tracking identification, not labeling, fault prompts and other functions;
5. High equipment stability. Adopt Panasonic PLC + maintenance control touch screen + Panasonic needle-shaped electric eye + Lloyd's / Italite labeling electric eye composed of advanced electronic control system, support equipment 7x24 hours of operation;
6. New mechanism application: the head base adopts 6-DOF adjusting mechanism and the height adjustment adopts three-lever adjusting mechanism, which is simple, convenient and efficient;
7. Optional functions: thermal coding/inkjet, automatic loading/unloading, automatic material collection, increase labeling device, other functions (customized according to customer requirements).
SY200 working process:
bottle loading --- bottle splitting --- labeling detection --- labeling and pressing labels --- product conveying --- bottle placing.
