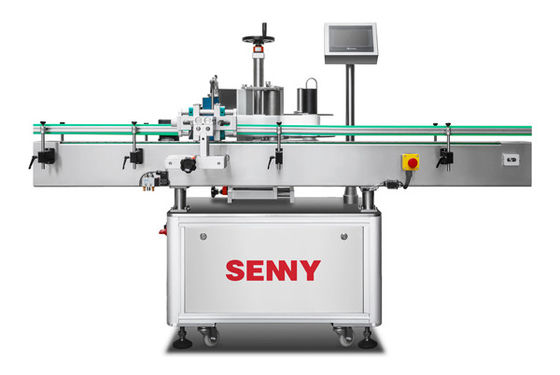

300pcs/min 200V Printing And Labeling Machine For Cylindrical Bottles
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | ST-801-Q |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T and LC |
| Supply Ability: | 100pcs /month |
|
Detail Information |
|||
| Plate Type: | Printing And Labeling Stickers | Product Shape: | Cinlindrical |
|---|---|---|---|
| Warrenty: | One Year | After Service: | On-line Or Video Technical Support |
| Power Supply: | 200V±10% | Labeling Speed: | 300pcs/min(depends On The Diameter Of Bottles And Labels’s Sizes) |
| High Light: | 200V Printing Labeling Machine,300pcs/min Printing And Labeling Machine,200V Printing And Labeling Machine |
||
Product Description
Servo Motor Drive Automatic Printing And Labeling Machine For Cylindrical Glass Bottles, Metal Cans, Air Cylinder
Application:
ST-801-Q Vertical positioning and labeling machine for cylindrical bottles. It is suitable for full winding, partial winding and fixed-point labeling on the circumference of industrial round bottle products such as daily chemical, medicine, health care products, food, chemical industry, etc. This machine can be used for automatic labeling of objects with different diameters and heights.
Technical Specifications:
- The disc rotation labeling (or cylinder positioning) controlled by servo motor can realize fast labeling.
- One or two labels can be pasted according to the setting.
- The labeling bottle is positioned on three sides, which can achieve high-precision labeling, and won’t be affected by the uneven bottom.

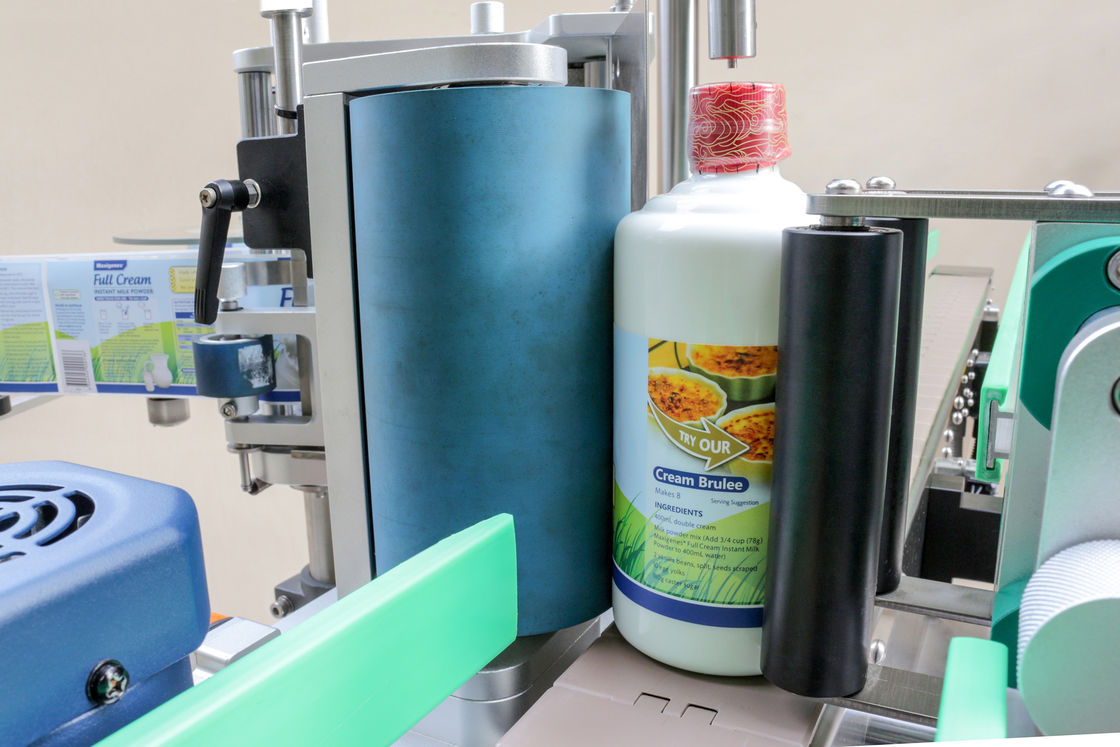

- The rubber wheel is used to rotate the label, and the transparent label is pasted without bubbles.
- The whole electric system is controlled by PLC, can adopt English touch operation, which is very convenient and intuitive.
- All stainless steel round corner cabinet, convenient, clean and beautiful
Product Features:
|
Suitable bottles: |
cylinderical bottles with diameter Φ20-90mm, height 30mm-160mm (The ration between diameter and height should be less than 1:3, such as 2ml~20ml penicillin bottle, 50~500ml infusion bottle) |
|
Labeling speed: |
300pcs/min(depends on the diameter of bottles and labels’s sizes) |
|
Labeling accuracy: |
The axial position deviation of the bottle is ±0.5mm, and the front and rear height deviation is ±1.0mm |
|
Power Supply: |
200V±10% |
|
Relative temperature of working environment: |
-20~50℃ |
|
Relative humidity of working environment: |
15~95% |
|
Working hours: |
24 hours continuous operation under good maintenance conditions |
