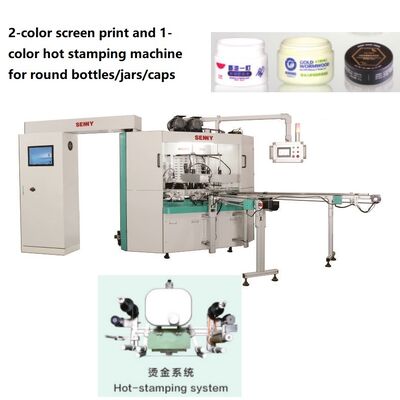

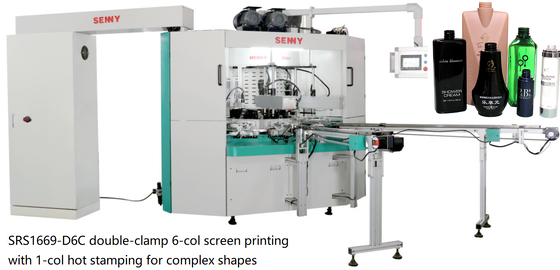

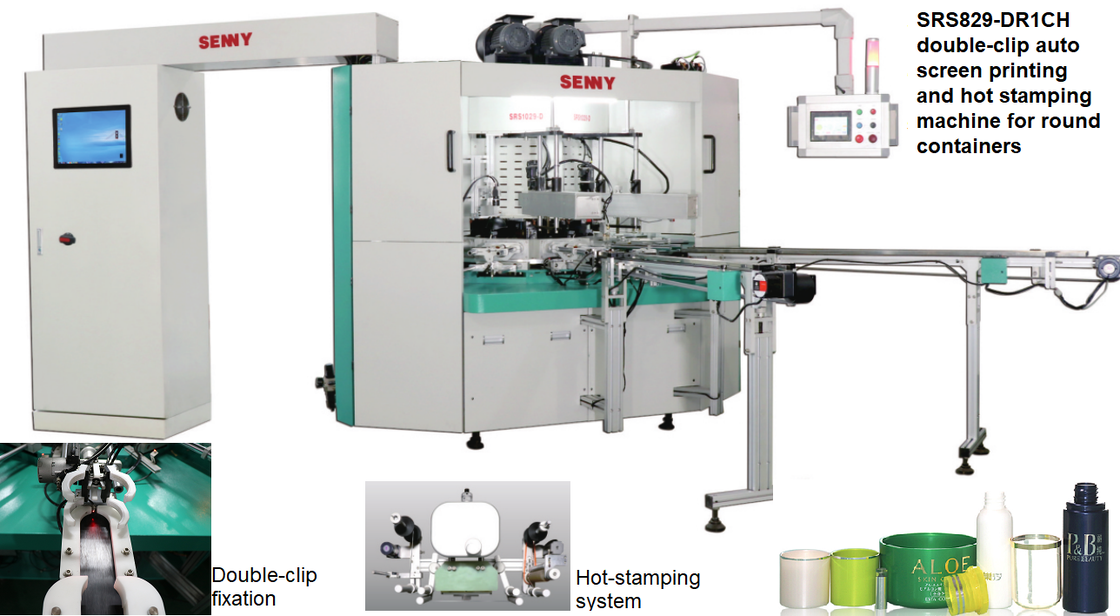

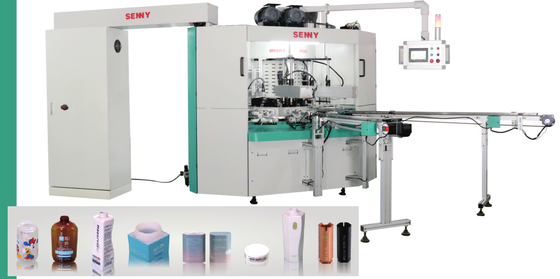

Mini Container CNC Automatic Printing Machine With Visual registrations functions
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SR829 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10PCS /Month |
|
Detail Information |
|||
| Weight: | 300kg | Packing Size: | 1400mm W:1300mm H:2150mm |
|---|---|---|---|
| Ink Type: | Water-based, Solvent-based, UV Inks | Machine Size: | 1800mm*1200mm*1550mm |
| Air Pressure: | 0.4~0.6Mpa | Structure: | Servo Printer |
| Power: | 380V 16KW | Powersupply: | 220V/50Hz |
Product Description
Machine Features
The machine is suitable for screen printing various colors of UV ink, hot stamping and other decorations on bottles,jars,caps and other materials.
The machine is specially developed for small container printing,with conpact structure and small footprint.
The machine adopts an intergrated turnable design,all printing functions are completed in the same set of fixture,the printing accuracy is as high as +/- 0.1mm,and the product won't be scratched.
The machine is driven by digital control servo motor to realize 360-degree printing of productsquipped with remote management and service functions (Industry 4.0).
The machine adopts well-known brand electrical components, PLC control system, easy-to-usetouch screen and wireless tablet operation, with reliable performance.
Optional Configuration
Plasma surface treatment function
Finished product quality inspection function.
LED-UV curing system
Hot stamping function
Visual registration function.
Technical Parameters
MachineModel SRS829 SRS1039 SRS1249 SR1669
Work Station 8 10 12 16
Printing Speed Up to 45pcs/min Up to 45pcs/min Up to 45pcs/min Up to 45pcs/min
Diameter at 360 Degree 13-60mm 13-60mm 13-60mm 13-60mm
Container Heighta 20-200mm 20-200mm 20-200mm 20-200mm
Max Printing Length 200mm 200mm 200mm 200m
Max Printing Height 160mm 160mm 160mm 160mm
Printing Samples
