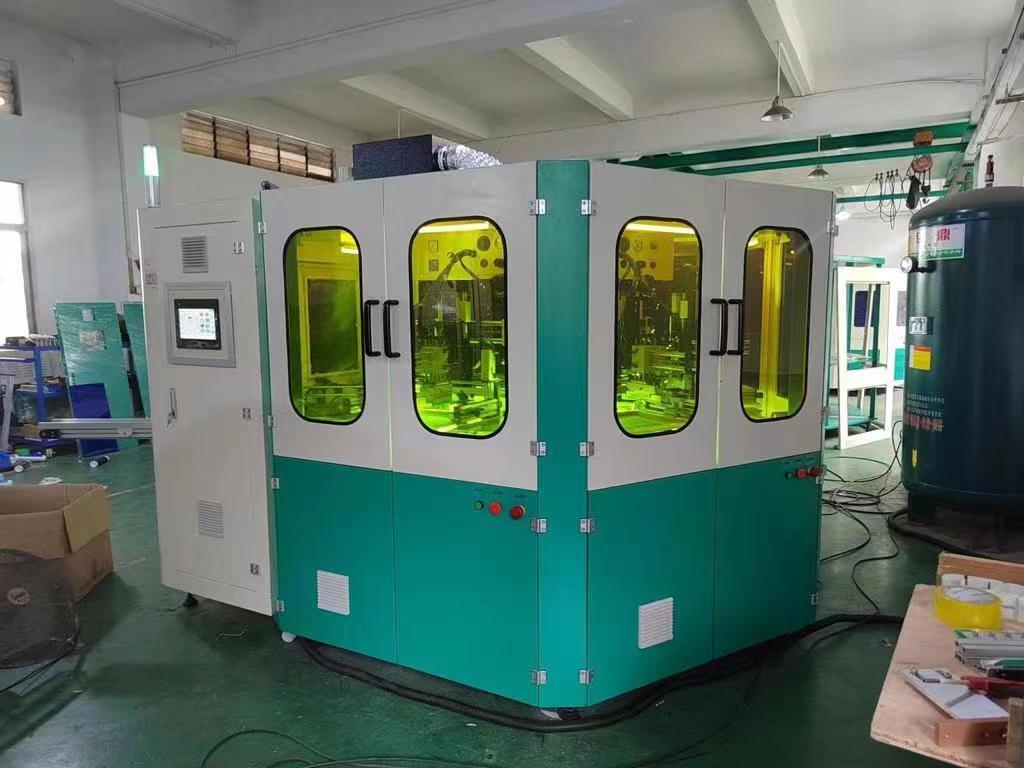

1-4 color 60 Pcs/Min Container CNC Automatic UV Curing Printing Machine
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS488 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 45days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs/month |
|
Detail Information |
|||
| Machine Model: | SRS488 | Printing Color: | 1-4 Colors |
|---|---|---|---|
| Plate Type: | Screen Printing Machine | Brand: | Senny |
| After-sales Services: | Video Or On-line | Certification: | CE SGS |
| Warranty: | 1 Year | Applicable Industries: | Printing Shops, Manufacturing Plant, Home Use, Industry, Advertising Company |
Product Description
- Product Description 1-4 color 60 Pcs/Min Container CNC Automatic UV Curing Printing Machine
Machine Feature
- The machine is fit for printing various colors of UV ink,hot stamping and other decorations on bottles,jars,caps ,cups and other shapes of products ,which are made of plastic,metal,glass,ceramics and other materials.

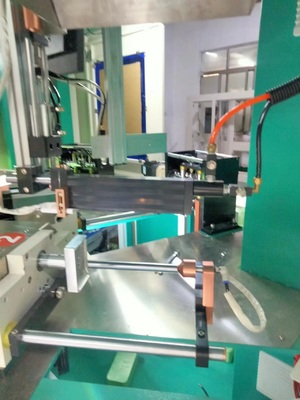

- The machine uses an integrated turntable design,all printing functions are finished in the same set of fixture,the printing accuracy is as high as ± 0.1 mm,and the product won't be scratched.
- Powered by a digitally controlled servo motor, the machine enables 360-degree printing of products. It is also equipped with remote management and service functions (aligned with Industry 4.0 standards).
- The machine utilizes electrical components from renowned brands, along with a PLC control system, a user-friendly touch screen, and a wireless tablet—all contributing to its reliable performance.
Optional Configuration:
- Production lying flat feeding & discharging function.
- LED-UV curing system.
- Hot stamping function.
- Finished product quality inspection function.
- Plasma surface treatment function.
- Labeling function.
- Bottle body visual registration function.
- Bottle bottom visual registration function.
Technical Parameters:
| Machine Model | SRS488 |
| Printing Color | 1-4 |
| Diameter at 360 Degree | 13-100mm |
| Container Height | 20-320mm |
| Max.Printing Length | 300mm |
| Max.Printing Height | 200mm |
| Printing Speed | Up to 60 pcs/min |

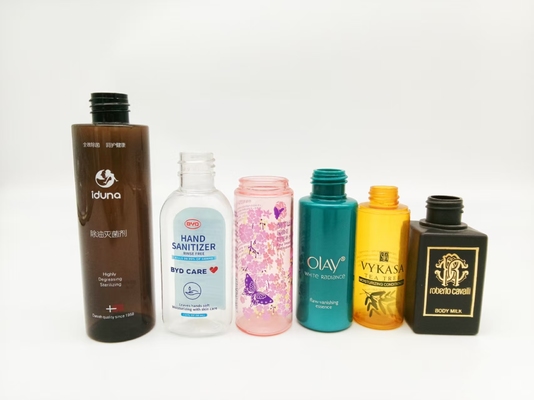

Printing Sample
Our Factory and exhibition:
The differences between linear screen printing machine and CNC rotary screen printing machine:
- The linear printing machine has a faster printing speed than the rotary printing machine, but its printing precision is lower in comparison.
- The linear printing machine adopts a modular design: the more colors need to be printed, the larger the machine becomes, while the rotary printing machine is more space-saving.
- CNC printing machines are more conducive to remote management and service.
- All printing functions of a CNC printing machine are completed with the same set of fixtures, which can avoid wear and tear.
- CNC silk screen printing machines can adjust parameters such as the printing head via a wireless touchscreen, while linear printing machines require manual adjustment.
Want to Know more details about this product
