1 Color Flat Screen Printing Machine For Plastic Tubes And Round Cans 20 - 200mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SR818/818-S2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1 Color | Plate Type: | Screen Printing Machine |
|---|---|---|---|
| Printing Durability: | High Durability | Speed: | Up To 70pcs/minute |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Package Details: | Plywood Package | Certification: | CE SGS |
| Payment Terms: | T/T | ||
| Highlight: | flat screen printing machine for plastic tubes,round can screen printing machine 20-200mm,flat screen printer with warranty |
||
Product Description
1 Color Flat Screen Printing Machine For Plastic Tubes And Round Cans 20 - 200mm

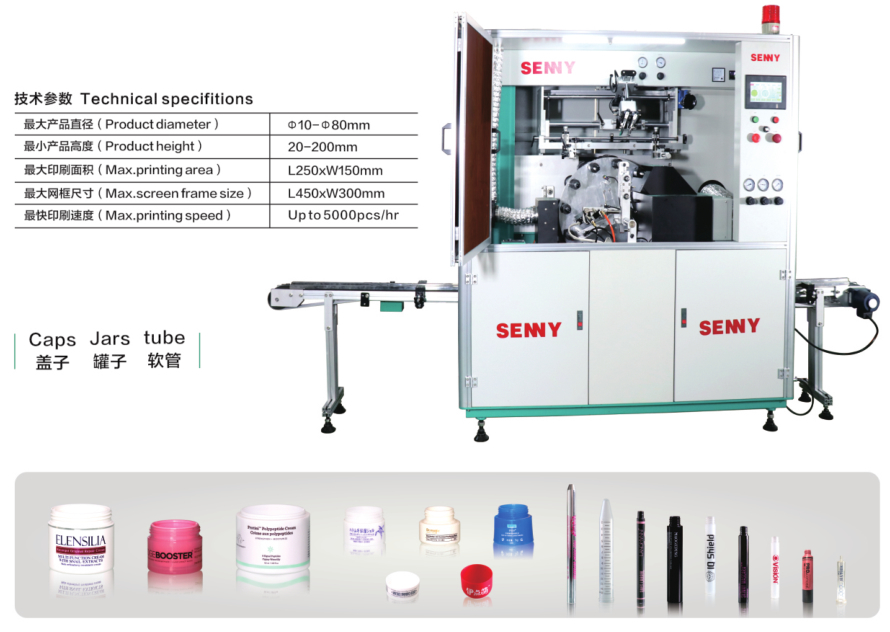

Technical specification:
| Model | SR818 | SR818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr | Up to 5000pcs/hr |
Product Applications and Features:
1. Automatic screen printing machine for plastic tubes, round cans and round caps with automatic feeding function, electrostatic dust removal function, flame treatment function, servo-driven register function, automatic printing and UV curing function.
2. Different types of machines can be manufactured upon request, such as internal mode printing or clamp type printing.
3. Servo-driven with color-code pre-register function or servo-driven visual pre-register function can be selected.
4. With touch screen for easy man-machine dialog and perfect alarm system.
Applications:
A flatbed screen printer with extensive applicability, suitable for screen printing on various flat workpieces—including circuit boards, plastic panels, metal sheets, glass substrates, ceramic tiles, wooden plaques, and acrylic plates.
Founded in 2004, with HongKong Senny Holding Co., Ltd registered in 2013. Our engineering team boasts over 20 years of experience in mechanical & electrical automation design, parts processing, equipment assembly and debugging. Equipped with precision CNC and other processing equipment, we use world-brand electrical components and materials to deliver high-quality products and services.

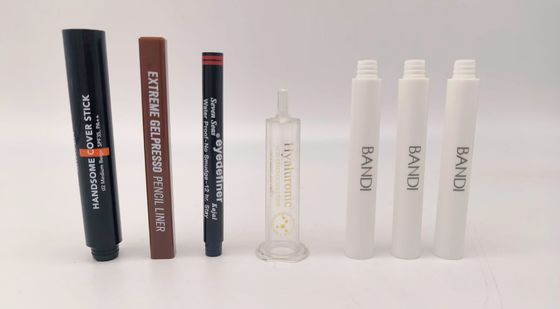

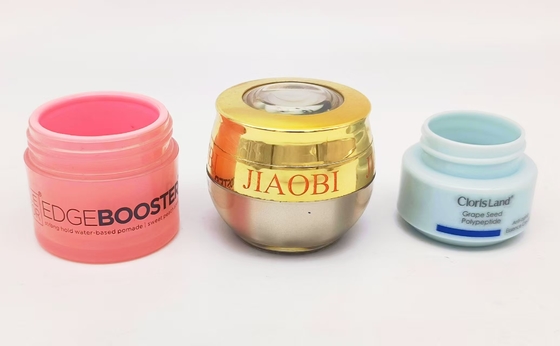

Printing sample
What's the steps of screen printing?
1. Surface treatment, currently we use flame treating, but no need for PET material. This is not only increases the dyne level of adhesion of ink but also cleans the surface of dust and dirt, as well as eliminates static electricity that can cause spider webbint of the ink.
2. Screen Printing, is a highly specialized process used to print on flat and flexible plastic surfaces. This printing method is compatible with various types of plastic and produces bold, bright, firm and metallic colors that make your designs stand out.
3. UV curing or IR curing. It depends on what kind of ink you are using. Ultimately UV and Infrared Curing are two unique applications that are ideal at reducing curing times. They are both also highly energy efficient. Infrared ovens do not have special coating requirements as much as UV ovens do. However, infrared ovens may not cure as rapidly as UV.
