1-12 Color Linear Type Multicolor Screen Printing Machine For Glass Bottles
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-12 |
|---|---|---|---|
| Plate Type: | Screen Printer With Hot Stamping | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 12 | Brand: | Senny Or OEM |
| Package Detaills: | Plywood Package | Payment Terms: | T/T |
| Certification: | CE | Supply Ability: | 5pcs/month |
Product Description

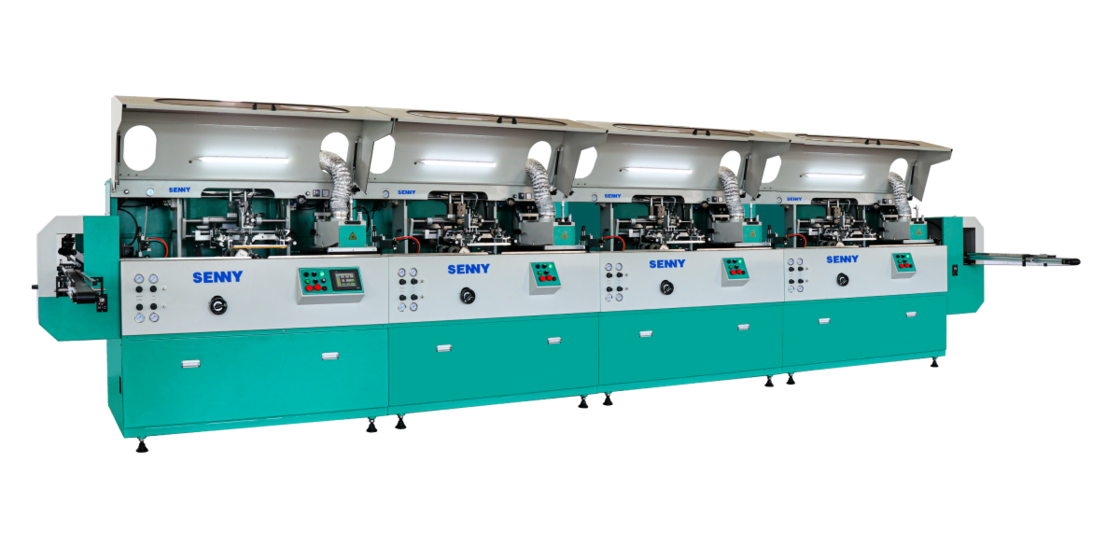

1-12 Color Linear Type Multicolor Screen Printing Machine For Glass Bottles
Scope of application:
This machine is specially designed for single-color or multi-color silk screen printing on the surface of containers, and it shows strong adaptability to products of diverse shapes. It can handle not only common regular shapes such as round, oval, and square, but also containers with complex irregular structures.
In terms of applicable materials, it covers a wide range of common container substrates, including plastic, glass, and metal. Meanwhile, the machine is compatible with various types of containers in daily production and processing, such as cans, bottles, cups, caps, hard tubes, and other similar common packaging or functional containers.
Applicable industries:
Including cosmetics, daily chemical products, food, pharmaceuticals, healthcare products, baby products, automotive supplies, cleaning supplies, alcohol products, glass glue, toys, sporting goods, and more.
Machine features:
This equipment is a great achievement built on nearly 30 years of machine design experience and technical accumulation, integrating key production functions such as incoming/outgoing material handling, surface treatment, screen printing and UV curing—realizing seamless connection between each link. Its linear combined module structure allows flexible splicing, enabling an integrated production line of up to 12 colors.
With precision design and manufacturing (core components selected for stability), it achieves reliable electromechanical synchronization and full automation. The man-machine dialogue operation is simple and convenient, supported by a clear touch screen interface for easy parameter adjustment. It also features a new-style incoming/outgoing material mechanism and host safety protection (equipped with emergency stop and anti-collision design) for better safety.
In use, the machine runs stably and efficiently, and can adapt to different shape of containers by quickly replacing dedicated fixtures. It is easy to operate and saves 2-3 manpower compared to traditional setups.
Technical Specifications:
| Machine running speed | 0-85pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-280mm |
| Round bottle diameter | 20-100mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-100mm |
| Maximum printing area | length 250* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 4-wire 380V 50/60Hz |
| Rated power | 6KW |
Optional congurated device:
1. Screen printing and labeling machine
a. screen printing and labeling head interchange function, such as 2 colors screen printing and labeling machine SL1288-2CT
b. screen printing and labeling function, such as 1 color screen printing and labeling machine SL1288-1CT
c. Labeling machine, such as two heads labeling machine SL1288-2T
2. Screen printing and hot stamping machine
a. screen printing and hot stamping interchange function, such as 2 colors screen printing and hot stamping machine SL1288-2CH
b. screen printing and hot stamping function, such as 1 color screen printing and hot stamping machine SL1288-1CH
c. Hot stamping machine, such as two heads hot stamping machine SL1288-2H
Printing samples

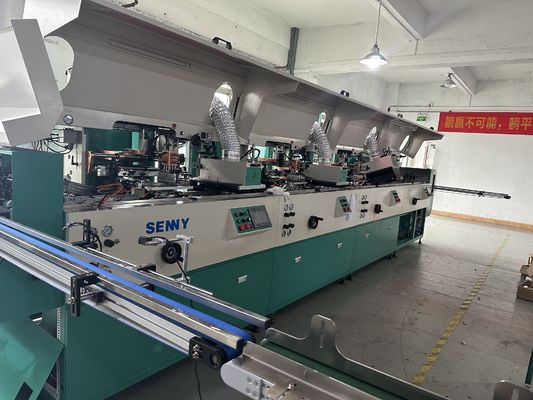

Customer Factory using our machine
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
