1-12 Work Station UV Curing Multicolor Screen Printing Machine 100pcs/Min
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1488-2C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-12 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 12 | Brand: | Senny Or OEM |
| Package Details: | Plywood Package | Certification: | CE |
| Supply Ability: | 5pcs/month | ||
Product Description
1-12 Work Station UV Curing Multicolor Screen Printing Machine 100pcs/Min
Technical Specifications:
| Machine running speed | up to 100pcs/min(printing speed varies from bottles to bottles) |
| Product height | 20-300mm |
| Round bottle diameter | 20-120mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-130mm |
| Maximum printing area | length 300* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 5-wire 380V 50/60Hz |
| Rated power | 7KW X colors |
| Main machine size | Length 2900mm X Width 1200mm X Height 2000mm(Exclude loading and uploading convey belt) |
| Main machine weight | 1200kg |
| Auxilary machine size | Length 1190mm X Width 1200mm X Height 2000mm |
| Auxilary machine weight | 1000kg |
1. Machine features: a great achievement of nearly 30 years of machine design experience. It integrates multiple functions such as incoming and outgoing materials, surface treatment, screen printing and UV curing. The linear combined module structure can realize an integrated production line of up to 12 colors. Precision design and manufacturing can realize electromechanical synchronization, perfect automation, simple and convenient man-machine dialogue operation, and a new appearance of incoming and outgoing materials and host safety protection, The machine is stable and fast, easy to transfer within different shape of containers, easy to operate and save manpower. The technology is in the leading position in China.
2. Applicable industries: Cosmetic (e.g., skincare, color cosmetics), daily chemical (such as detergents, personal care products), food, pharmaceutical, health products, baby products (like baby skincare, feeding tools), automotive supplies, cleaning supplies, alcohol, glass glue, toy, sporting goods (e.g., sports equipment, fitness accessories), etc.

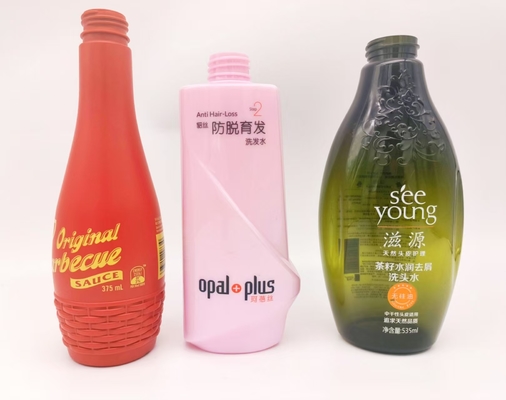

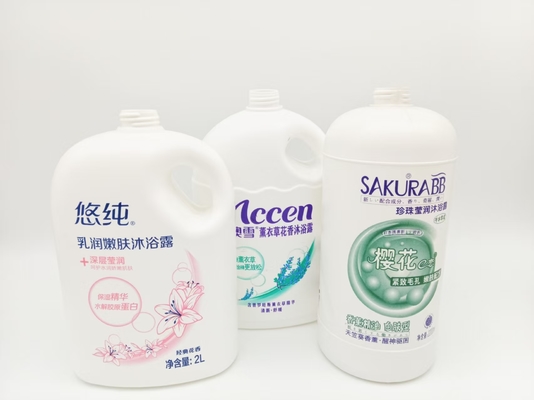

3. Scope of application: This machine is suitable for single-color or multi-color screen printing on the surface of containers with various shapes, including round, oval, square, complex shapes and special-shaped ones. Container materials cover plastic (e.g., PET, PP), glass and metal (such as aluminum, stainless steel), etc. Containers include cans (food cans, spray cans), bottles (plastic bottles, glass bottles), cups, lids (bottle lids, can lids) and hard tubes (cosmetic hard tubes, ointment tubes), etc.
4, Main functions: Feeding belt speed regulating and conveying function; Manipulator vacuum direction selection feeding function; Speed regulating stepping motor drives round bottle surface treatment function; Surface electrostatic dust removal function; Surface flame treatment function; Pre alignment function; Adjustable pressure inflation printing function in the container; Automatic screen printing function; The electric printing head lifting is convenient for screen loading and unloading; High intensity American UV lamp curing function (led-uv curing function can be optional); The round container has the function of UV speed regulating motor rotation; Manipulator vacuum discharge function; Discharge belt speed regulating and conveying function.
Optional congurated device:
1. Screen printing and labeling machine
a. screen printing and labeling head interchange function, such as 2 colors screen printing and labeling machine SL1488-2CT
b. screen printing and labeling function, such as 1 color screen printing and labeling machine SL1488-1CT
c. Labeling machine, such as two heads labeling machine SL1488-2T
2. Screen printing and hot stamping machine
a. screen printing and hot stamping interchange function, such as 2 colors screen printing and hot stamping machine SL1488-2CH
b. screen printing and hot stamping function, such as 1 color screen printing and hot stamping machine SL1488-1CH
c. Hot stamping machine, such as two heads hot stamping machine SL1488-2H

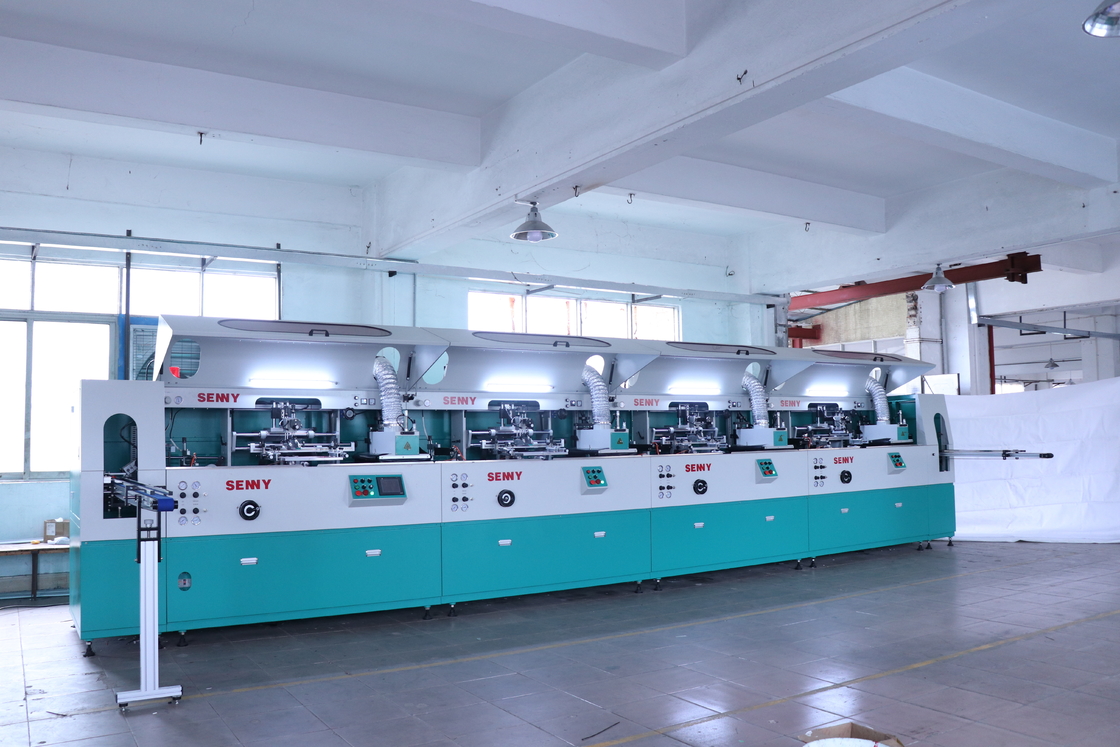

Machine under installation
UV Curing device
