100W Flame Treatment Semi-Automatic Machine SGS Certification 3000 Pcs/Hr.
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | HY200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 100PCS/YEAR |
|
Detail Information |
|||
| Automatic Grade: | Semi-automatic | Suitable Material: | PE, PP |
|---|---|---|---|
| Printing Durability: | High Durability | Condition: | New |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Payment Terms: | T/T | Package Details: | Plywood Package |
| Certification: | CE | Supply Ability: | 5pcs/month |
| Highlight: | 100W flame treatment machine,semi-automatic flame treatment machine,flame treatment machine 3000 pcs/hr |
||
Product Description

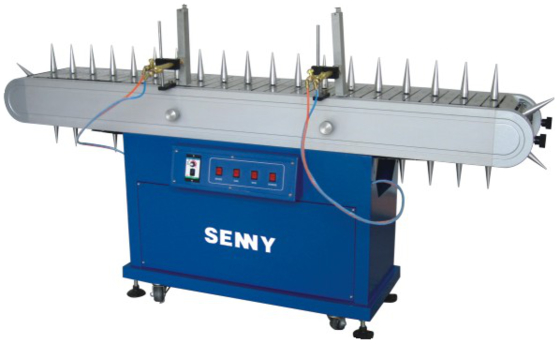

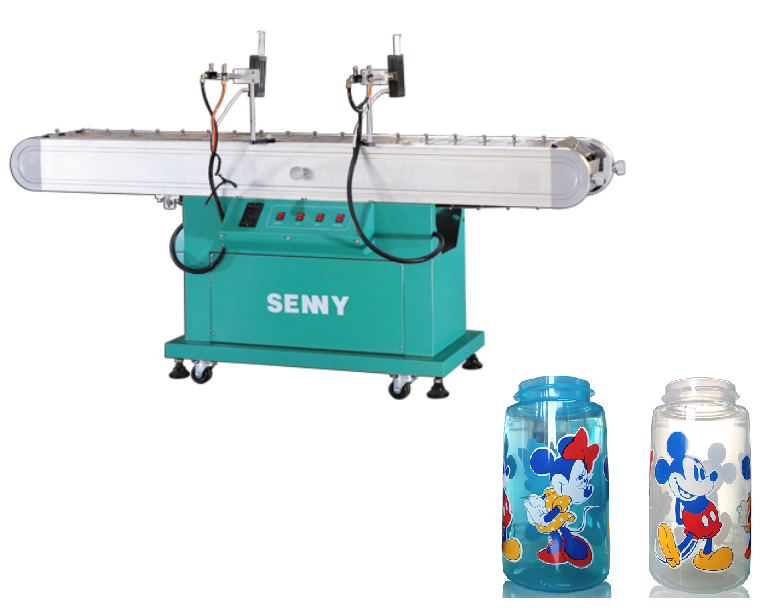

100W Flame Treatment Semi-Automatic Machine SGS Certification 3000 Pcs/Hr.
Application:
This machine is designed for pre-treatment of bottles before printing. The flame cleans the surface of bottles and makes the ink easy to adhere to the surface of plastic bottles. Mainly used for PP and PE materials.

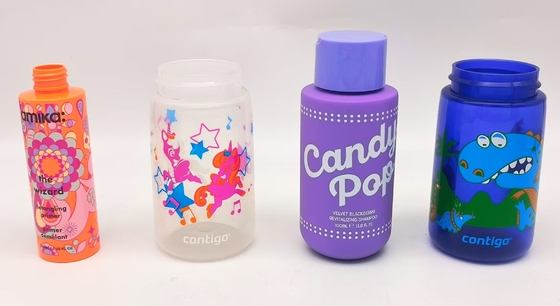

The equipment is mainly tailored for PP (polypropylene) and PE (polyethylene) plastic bottles—two materials widely used in daily chemical packaging (e.g., laundry detergent bottles, shampoo bottles), beverage packaging (such as mineral water bottles, fruit juice bottles), and food packaging (like edible oil plastic jugs). These two materials inherently have low surface energy, making them difficult to bond with conventional solvent-based or water-based inks without pre-treatment. To adapt to different production needs, the machine is also equipped with an adjustable flame intensity knob and a height-adjustable bottle holder: it can match the cleaning requirements of bottles with diameters ranging from 30mm to 100mm and wall thicknesses of 0.3-1.2mm, ensuring consistent pre-treatment effects across batches.
Technical Specifitions:
| Bottle mouth diameter | 10mm to 30mm |
| Max.Treatment speed | Up tp 3000 pcs/hr. |
Technical characteristics:
1. Stable rotary bottle and conveyor mechanism.
2. Transmission adopts imported speed-regulating motor and equipped with high quality fire sprinkler system.
3. Electronic ignition system can be installed as required.
Technical parameters:
| Power supply voltage | 220 V, 50 Hz power |
| Power consumption | 100W |
| Machine weight | 200kg |
| Curing Size | φ 320 * H300mm |
| Dimensions | L2000 × B500 × H1200mm |
Our machine shipped to many countries oversea, such as Amercia, Korea, Malaysia, India, Pakistan, Germany, Dubai, England, Phillipine, Singapore, Vietnam, Brazil, Uzbeikstan and so on.
The customer from Canada is making quality control personally before shipping out.
Customers visition our factory, taking pic with our boss Mr Zhu:
