5 Printing Station 6bar Multicolor Screen Printing Machine For Round Bottle 45pcs/Min
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SRS1249-D5C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Station: | 5 Stations | Printed Colors: | 5 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Payment Terms: | T/T | Package Details: | Plywood Package |
| Supply Ability: | 5pcs/month | ||
| Highlight: | multicolor screen printing machine for round bottles,6bar screen printing machine 45pcs/min,5 printing station screen printing machine |
||
Product Description
5 Printing Station 6bar Multicolor Screen Printing Machine For Round Bottle 45pcs/Min
Can this machine do screen printing and hot stamping together? 1 station or multiple stations?
Application:

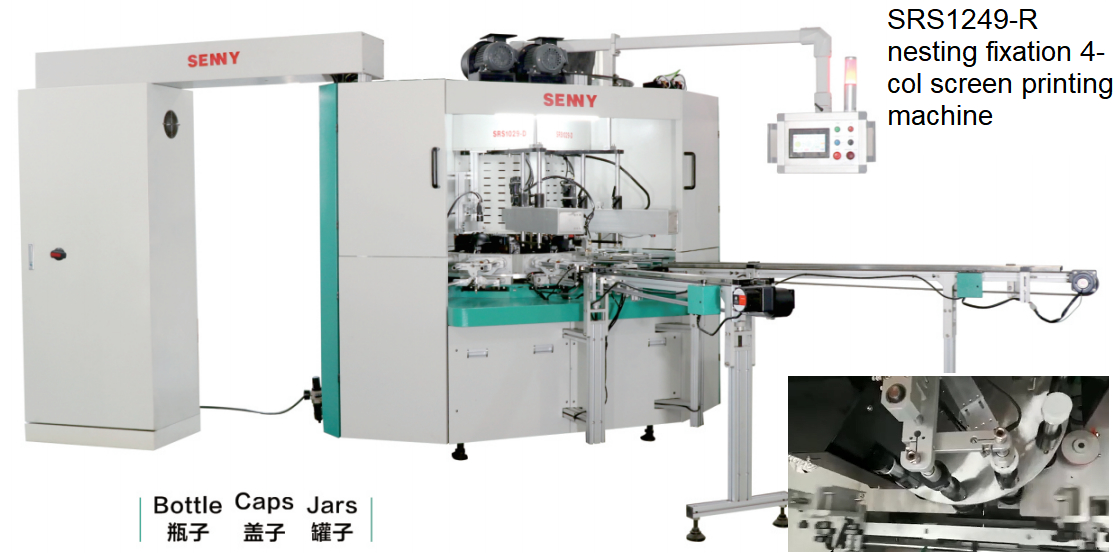

This machine is a multifunctional rotary multi-color screen printing machine, which can be equipped with hot stamping device. It is mainly used for printing patterns and characters on bottles, cans and lids with complicated shapes, such as oval/square/conical and some irregular shapes. It is characterized by simple operation, accurate positioning, high degree of automation and fast printing speed.
In terms of performance, it features intuitive and simple operation—equipped with a 7-inch high-definition touch screen, key parameters (printing speed, pressure, color registration) can be set and adjusted visually, and new operators can master basic operations within 1-2 hours after simple training; it achieves high-precision positioning relying on a servo motor drive system and a photoelectric color registration sensor, with a repeat positioning accuracy of ±0.03mm, effectively avoiding pattern misalignment caused by machine vibration; it has a high degree of automation, integrating automatic workpiece feeding, synchronous color group adjustment, and post-printing material sorting, which reduces manual intervention by more than 60%; and it boasts fast printing speed, with a maximum continuous output of 300-500 pieces per hour, and the speed can be steplessly adjusted according to workpiece complexity, ensuring efficiency while maintaining printing quality.
Technical Specifications
| Model | SRS1249-D5C |
| Printing stations | 5 (5 printing colors) |
| Printing speed | Up to 45pcs/min |
| Max. printing area | L250mm X W160mm |
| Product height | 250mm |
| Air presser | 6-7 bar |
| Power | 380V 50/60HZ |
Features:
2. The machine can print 5 colors or more, accurate color registration between colors, stable and reliable performance.
3. It adopts imported PLC and touch screen monitor such as OMRON, PANASONIC, DELTA, etc., and is equipped with all kinds of monitoring system, which ensures high speed and stable operation of the machine.
4. According to the product characteristics, the machine can be equipped with automatic loading and unloading, positioning, flame treatment, dust removal, automatic color registration, no bottle without printing, UV curing system and other functions.
5. The main parts are imported from the United States, Germany and Japan to ensure the quality of the machine and printing stability.
6. Chinese, English and Spanish languages are available.
7. Machine can be customized according to special products.

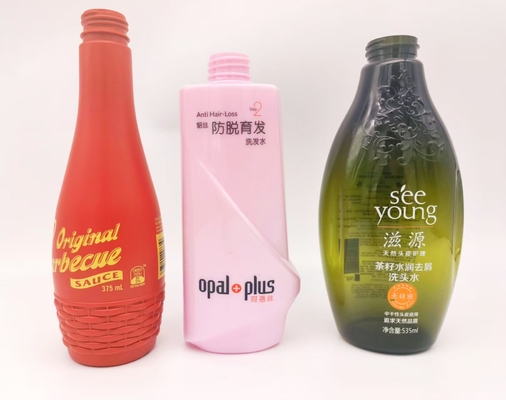

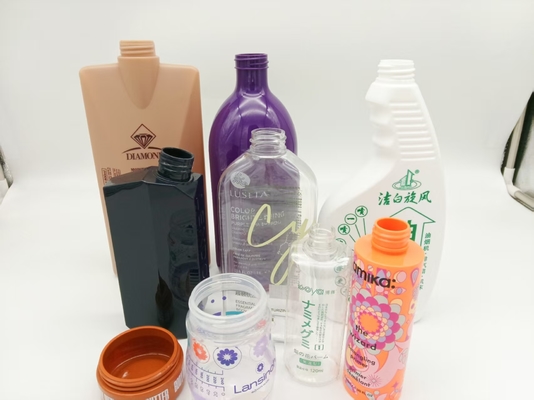

Printing samples
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
