40 Pcs/Min Round Container UV Screen Printing Machine
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SLS1024 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 45days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs/month |
|
Detail Information |
|||
| Model Number: | SLS1024 | After-sales Services: | Video Or On-line |
|---|---|---|---|
| Delivery Time: | 45 Days | Model Type: | Screen Printing Machine |
Product Description

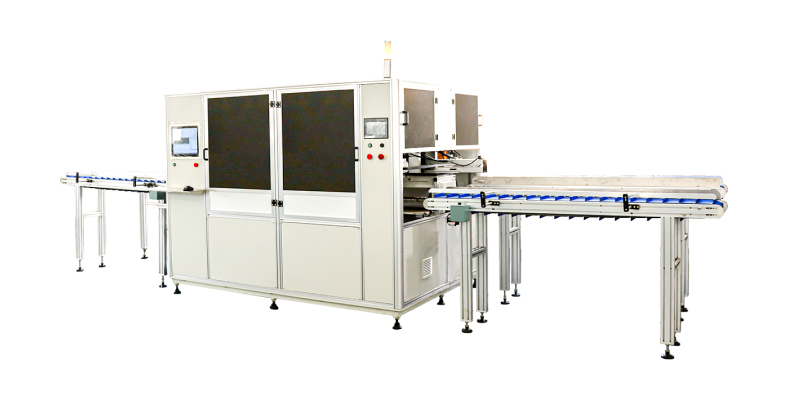

40 Pcs/Min Round Container UV Screen Printing Machine
Machine Model
- The machine adopts linear track conveying, with all printing functions completed in a single set of fixtures. It achieves a high printing accuracy of ±0.1mm without scratching the products.
- The machine uses digitally controlled servo motor drive for product printing and is equipped with remote management and service functions (Industry 4.0).
- The machine adopts well-known electrical components, a PLC control system, and features easy-to-use touchscreen as well as wireless tablet operation, ensuring reliable performance.
Optional Configuration
- Visual registration function.
Technical Parameter
| Machine Model | SLS1024 |
| Work Station | 4 |
| Max.Printing speed | Up to 40 pcs/min |
| Container Diameter | 13-100mm |
| Container height | 20-250mm |
| Max.Printing Length | 250mm |
| Max.Printing Height | 120mm |
Printing your vision
About us:
Serving sectors such as food, medicine, toys, cosmetics, daily chemicals, electronics, and decorative products, Senny uses automatic printing technologies (including screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing) to print high-quality, delicate graphics and texts on the surfaces of products in different shapes, which are made from materials like plastic, metal, glass, and ceramics.
