Precision Control Flat Screen Printing Machine With Servo-Drive Configurations And Registration For Printing
Product Details:
| Place of Origin: | DONGGUAN GUANGDONG CHINA |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SR818/818-S2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | PLYWOOD PACKAGE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 10PCS /month |
|
Detail Information |
|||
| Printing Colors: | 1 Color | Speed: | Up To 70pcs/minute |
|---|---|---|---|
| Machine Color: | As Pic Or Customized | Warrenty: | 1 Year And Lifetime Technical Support |
| Plate Type: | Screen Printer | After-sale Service: | Online Or Video Technical Support |
| Package Details: | Plywood Package | Payment Terms: | T/T |
| Certification: | CE | Warranty: | 1 Year |
| Supply Ability: | 5pcs/month | ||
Product Description

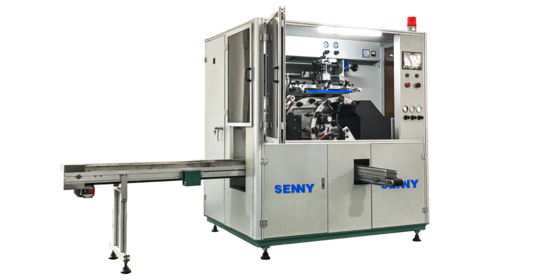

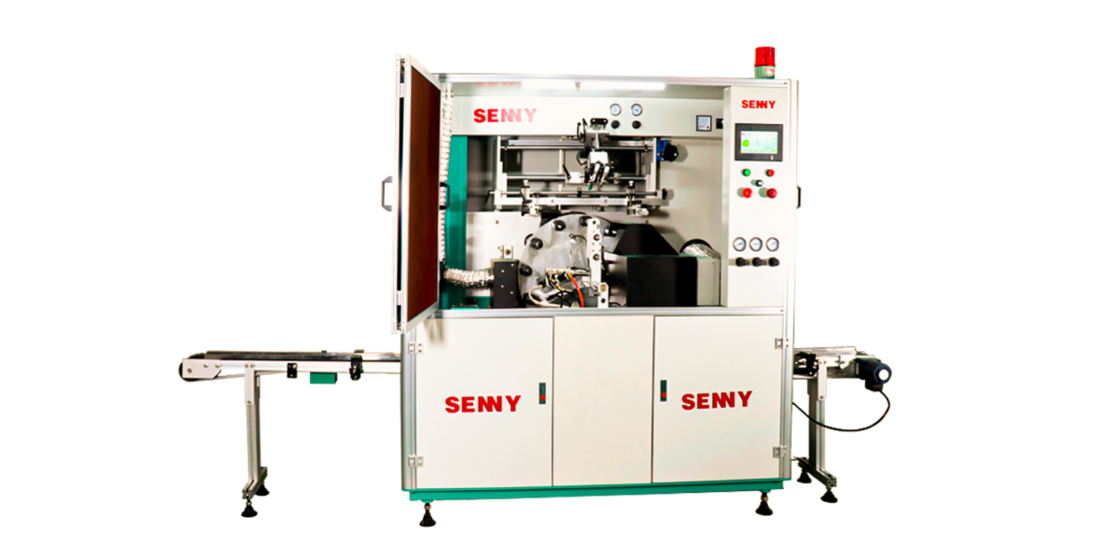

Precision Control Flat Screen Printing Machine With Servo-Drive Configurations And Registration For Printing
Technical specification:
| Model | SR818 | SR818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr |
Up to 5000pcs/hr |
Product Applications and Features:

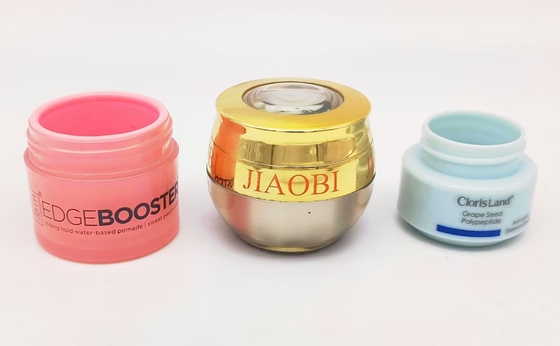

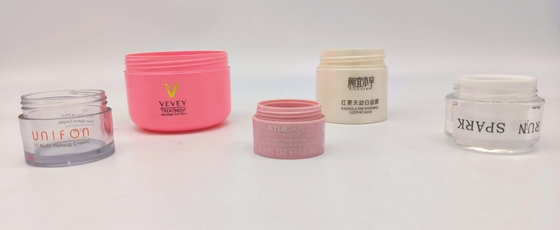

1. Automatic screen printing machine for plastic soft tubes, round cans and round caps. Equipped with auto feeding, electrostatic dust removal, flame treatment, servo-drive registration, auto printing and UV curing functions—streamlines the entire printing process.
2. Customizable machine types available as needed, such as inner mode printing or clamp type printing, to fit different processing demands.
3. Optional servo-drive configurations: either color mark pre-registration or servo-drive visual pre-registration, for flexible precision control.Two optional servo-drive configurations are available to cater to diverse precision control needs: color mark pre-registration and servo-drive visual pre-registration. The color mark pre-registration relies on high-sensitivity color recognition technology to accurately align materials based on pre-set color markers, making it ideal for applications with clear, stable color-coded reference points (e.g., packaging printing, label processing).
4. Comes with a touch panel for easy man-machine interaction, plus a complete warning system to prompt abnormalities in time.The equipment is outfitted with an intuitive touch panel to streamline man-machine interaction. The panel features a high-definition, anti-glare display and a user-friendly interface—with clear iconography, customizable operation menus, and real-time production data visualization (e.g., speed, yield, parameter settings). Operators can quickly adjust parameters, switch production modes, or access operational guides with just a few touches, significantly reducing training time and operational errors.
Flame treatment device
Upper feeding device Lower feeding device
About us:
Dongguan Senny Printing Equipment Co., Ltd was founded in the year of 2004, and registered HongKong Senny Holding Co., Ltd in 2013. We have a great engineering team, who has engaged in mechnical & electrical automachine designing, parts processing, equipment assembly and debugging for more than 20 years. To provide high-quality products and services, we have a number of presision CNC and other processing equipment. All machines are made of world brand electrical components and materials.
With years of development, Senny can provide premium quality automatic screen-printing machine, labelling machine, pad printing machine, hot-stamping machine and other printing packaging and services according to customers' special products and demands.
