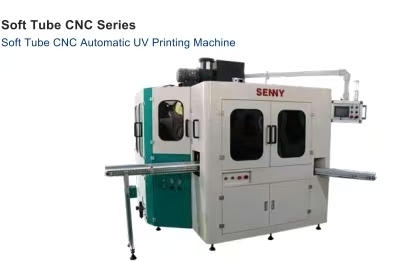

3-Color 80 pcs/min Soft Tube CNC Automatic UV Printing Machine

3-Color 80 pcs/min Soft Tube CNC Automatic UV  Printing Machine

Machine Feature

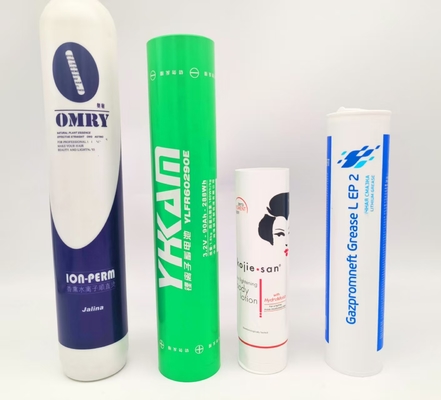

• The machine is suitable for screen printing of various colors of UV ink, hot stamping, varnishing and other decorations on plastic soft tubes, perfectly adapting to the diverse decorative processing needs of plastic soft tube products in cosmetics, daily chemicals and other industries.

• Featuring an integrated turntable structure, the machine accomplishes all printing tasks using a single set of fixtures. With a printing accuracy of up to ±0.1mm, it reliably guarantees consistent pattern positioning on every plastic soft tube.

• Powered by a digitally controlled servo motor, the machine enables 360-degree printing on products. It also comes with remote management and service capabilities (aligned with Industry 4.0 standards), allowing users to conveniently monitor equipment status in real time and troubleshoot issues efficiently.

• The machine incorporates electrical components from renowned brands, along with a PLC control system, an intuitive touchscreen, and wireless tablet operation. Its stable performance significantly lowers the difficulty of operation and maintenance for workers.

Optional Configuration

• Unscrambling & feeding machine: This dedicated device automatically arranges disordered plastic soft tubes in a uniform orientation and precisely conveys them to the next processing station, ensuring a continuous and smooth start to the production line.

​

• Hot stamping function: It enables the transfer of metallic or colored foils onto plastic soft tubes to create high-gloss, decorative patterns or logos, enhancing the product’s premium visual appeal.

​

• Plasma surface treatment function: By using plasma technology to modify the surface of plastic soft tubes, this function improves the adhesion of inks or coatings, effectively preventing peeling or fading of subsequent prints.

​

• Visual registration function: Equipped with high-precision cameras and image recognition technology, it accurately aligns patterns with the printing position on plastic soft tubes, guaranteeing consistent printing accuracy.

​

• LED-UV curing function: Utilizing low-energy, high-efficiency LED-UV light sources, it rapidly cures UV inks on plastic soft tubes, shortening the production cycle while ensuring excellent ink adhesion and wear resistance.

• Finished product quality inspection function: Through visual detection or sensor systems, it automatically checks for defects such as print misalignment, ink smudges, or surface scratches on finished plastic soft tubes, ensuring only qualified products enter the next stage.

Technical Parameters
