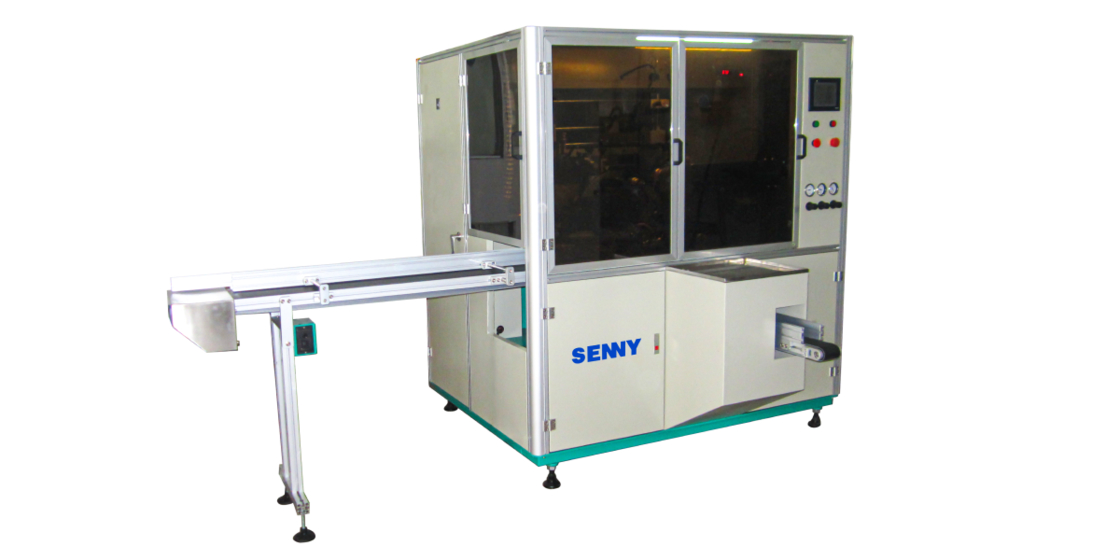

1-Color 60 pcs/min Soft Tube Automatic UV Screen Printing Machine

1-Color 60 pcs/min Soft Tube  Automatic UV Screen Printing Machine

Machine Feature

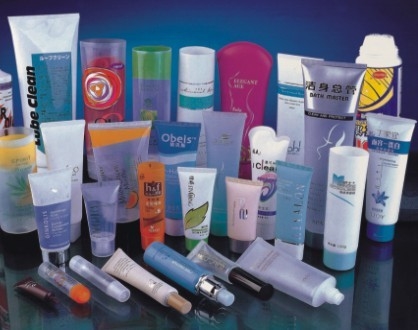

• SR816 is suitable for screen printing of various colors of UV ink, hot stamping and other decorations on plastic soft tubes, easily meeting the diverse surface processing needs of plastic soft tube products.

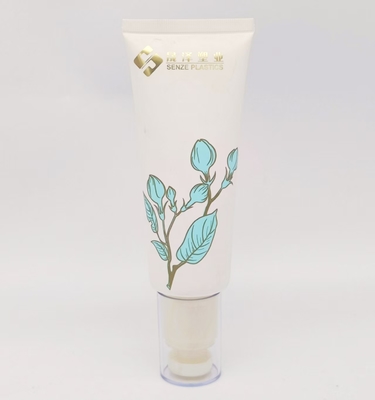

• SR816-H is suitable for hot stamping gold or silver foil on plastic soft tubes, helping to enhance the visual texture and high-end feel of plastic soft tube surfaces.

• The machine adopts integrated turntable design with complete functions, the servo drives the front and rear registration and printing, ensuring precise positioning and stable operation during the processing process.

• The machine adopts well-known brand electrical components, PLC control system and easy-to-use touch screen, with reliable performance that effectively reduces the frequency of maintenance and downtime.

Optional Configuration

• Unscrambling & Feeding Machine: This device automatically organizes jumbled workpieces (e.g., plastic soft tubes) into an orderly arrangement and precisely conveys them to the next processing station, ensuring continuous and stable material supply for the entire production line.

​​

• Plasma Surface Treatment Function: By generating low-temperature plasma to act on the workpiece surface, it efficiently eliminates contaminants like oil stains and dust while enhancing surface tension and adhesion—creating optimal conditions for subsequent printing or coating steps.

​

• Visual Registration Function: Fitted with high-precision industrial cameras and image recognition systems, it automatically detects the workpiece’s position and realigns printing or processing components in real time, guaranteeing the accuracy of decorative patterns or text on the workpiece.

​

• LED-UV Curing Function: Using high-efficiency LED-UV light sources, it quickly cures UV inks, varnishes, and similar materials on the workpiece surface. This process offers fast curing speeds, energy efficiency, and environmental friendliness, while also effectively boosting the coating’s wear resistance and luster.

​

Technical Parameters
