Plastic/Glass/Metal Containers Fully Automatic Screen Printing Machine 85pcs/Min
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | one month |
| Payment Terms: | TT or LC |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Stations: | 1-12 |
|---|---|---|---|
| Plate Type: | Screen Printer With Hot Stamping | After-sales Service: | Video Or On-line |
| Printed Colors: | 1 To 12 | Brand: | Senny Or OEM |
| Warranty: | 1 Year | Payment Terms: | T/T |
| Package Details: | Plywood Package | Certification: | CE |
Product Description

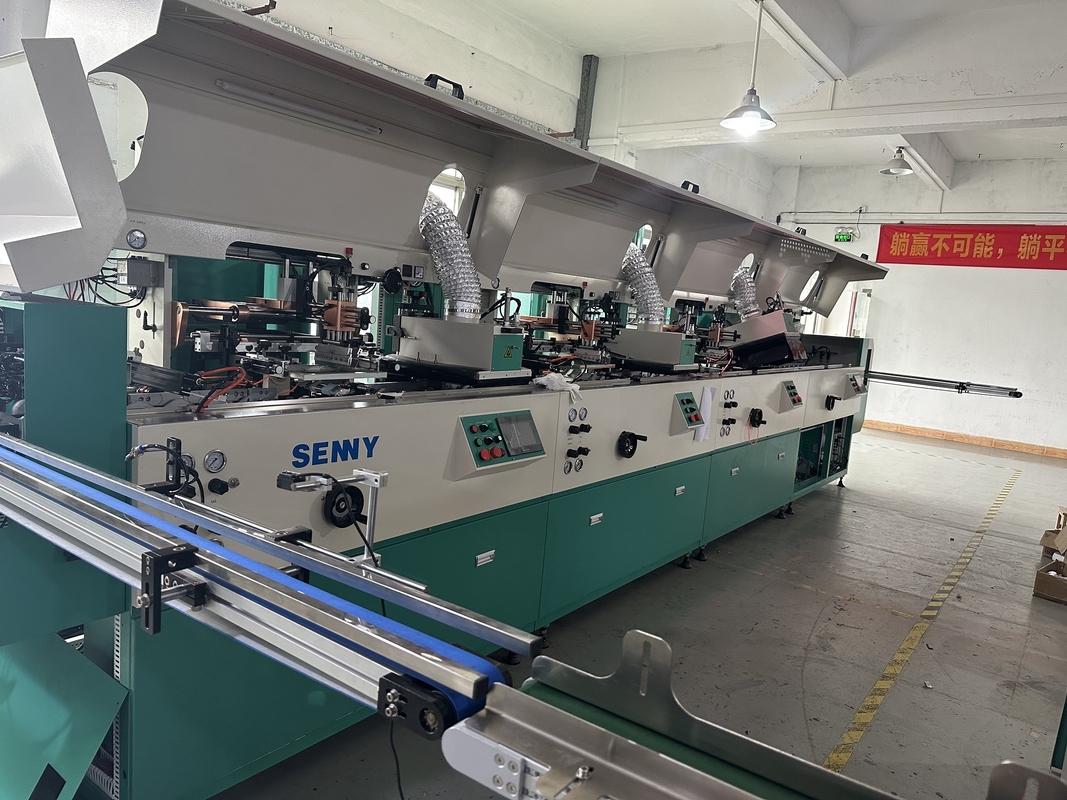

Plastic/Glass/Metal Containers Fully Automatic Screen Printing Machine 85pcs/Min
Core Advantages of the Machine
Developed based on nearly 30 years of machine design experience, this machine represents a significant achievement of technical accumulation. It integrates five core functions—material feeding, material discharging, surface treatment, screen printing, and UV curing—into one unit. Adopting a linear combined module structure, it can form an integrated production line supporting up to 12 colors.
It boasts three key strengths in performance and operation:
High-precision control: Achieves electromechanical synchronization and high-level automation through precise design and manufacturing;
User-friendly operation: Equipped with an intuitive human-machine interface for simple operation, while featuring optimized appearance of material feeding/discharging mechanisms and enhanced safety protection for the main unit;
High efficiency and flexibility: Operates stably at high speed, supports quick adaptation to containers of different shapes, significantly reduces labor input, and lowers operational difficulty.
Currently, the machine’s technology maintains a leading position in China.
Application Scope
(1) Container Types
Suitable for single-color or multi-color screen printing on the surface of containers with various shapes, such as round, oval, square, and irregular shapes. Specific container types include cans, bottles, cups, lids, and rigid tubes.
(2) Container Materials
Compatible with multiple substrates including plastic, glass, and metal.
Technical Specifications:
| Machine running speed | 0-85pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-280mm |
| Round bottle diameter | 20-100mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-100mm |
| Maximum printing area | length 250* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 4-wire 380V 50/60Hz |
| Rated power | 6KW |
Optional congurated device:
1. Screen printing and labeling machine
a. screen printing and labeling head interchange function, such as 2 colors screen printing and labeling machine SL1288-2CT
b. screen printing and labeling function, such as 1 color screen printing and labeling machine SL1288-1CT
c. Labeling machine, such as two heads labeling machine SL1288-2T
2. Screen printing and hot stamping machine
a. screen printing and hot stamping interchange function, such as 2 colors screen printing and hot stamping machine SL1288-2CH
b. screen printing and hot stamping function, such as 1 color screen printing and hot stamping machine SL1288-1CH
c. Hot stamping machine, such as two heads hot stamping machine SL1288-2H

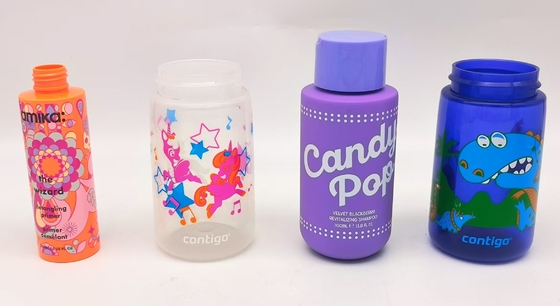

Printing samples
Factory Office VIew:
About us:
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
