1-8 Color 60 Pcs/Min CNC Container UV rotary Screen Printing Machine
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS899 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 45days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs/month |
|
Detail Information |
|||
| Machine Type: | Rotary Screen Printing Machine | Printed Color: | 8 Colors |
|---|---|---|---|
| After-sales Services: | Video Or On-line | Delivery Time: | 45 Days |
Product Description

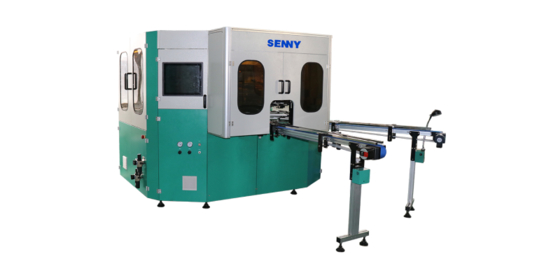

1-8 Color 60 Pcs/Min CNC Container UV rotary Screen Printing Machine
Machine Model

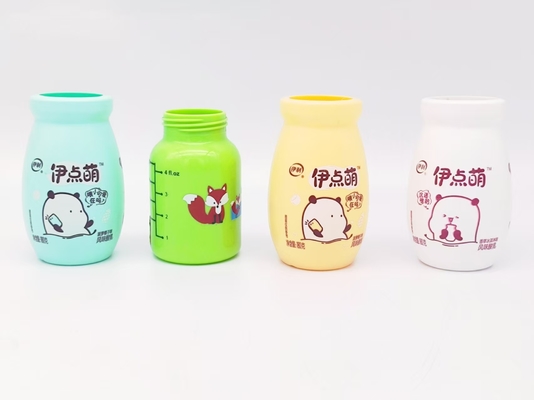

- 360-degree printing:This machine can perform 360-degree dead-angle-free printing on containers of various shapes, including circular, square, oval, and special-shaped ones. Whether it is common cylindrical beverage bottles, square cosmetic cans, or curved food packaging boxes, it can achieve uniform ink coverage and complete pattern presentation.
- Servo Motor Drive and Digital Control:The machine adopts a servo motor drive system, which features high response speed, strong torque output, and minimal motion deviation—compared with traditional motor drives, it can accurately control the rotation speed, position, and torque of the printing mechanism, avoiding issues like uneven printing speed or unstable material feeding caused by motor lag. Meanwhile, the digital control system converts the printing process into quantifiable parameters (such as printing pressure, speed, and ink supply volume), allowing operators to set, store, and recall parameter combinations for different container types and printing requirements with one click.
- Stable Machine Operation:Through the synergy of optimized mechanical structure design (such as enhanced machine body rigidity and high-precision transmission components) and intelligent control system, the machine can effectively avoid problems like machine body vibration and component loosening during long-term continuous operation, maintaining a stable operating state without frequent shutdowns for maintenance.
- Remote Services:The equipment is equipped with a fixed touch screen, which is convenient for operators to check parameters and adjust settings in real time beside the machine. At the same time, it supports mobile wireless tablet control, allowing operators to remotely monitor the machine's operating status and modify printing parameters at any location in the workshop (such as the raw material area and finished product inspection area) without frequent trips to the machine, greatly improving operational flexibility and work efficiency.
- Adoption of Well-Known Brand Electrical Components:The key electrical components of the machine (such as contactors, sensors, frequency converters, and PLCs) are all selected from well-known brand products in the industry. These components have undergone strict quality inspections and market verification, and possess excellent stability, anti-interference capability, and durability. They can effectively adapt to the complex working environment of the workshop (such as voltage fluctuations, dust, and temperature changes).
Optional Configuration
- Plasma surface treatment (standard configuration is flame surface treatment).
- Bottle sorting machine.
- Quality inspection unit.
Technical Parameter
| Machine Model | SRS899 |
| Max.Printing speed | Up to 60 pcs/min |
| Diameter at 360° | 10-100mm |
| Container at height | 20-320mm |
| Printing color | 8 colors |
| Max.Printing area | L300mm*H200mm |
Printing your vision
About us:
Senny caters to industries including food, medicine, toys, cosmetics, daily chemicals, electronics, and decorative products. By leveraging automatic printing technologies such as screen printing, pad printing, hot stamping, labeling, offset printing, and digital printing, it enables the creation of high-quality, exquisite graphics and texts on the surfaces of products of various shapes—made from materials like plastic, metal, glass, and ceramics.
Since its establishment in 1994, Senny has consistently adhered to the business philosophy of delivering high-quality products and services to customers. It utilizes the most advanced electrical control components and materials for research, development, and manufacturing, while continuously enhancing the printing quality of diverse products. This commitment allows Senny to meet the ever-expanding market demands for high-quality packaging.
