85pcs/Min Glass Bottle Multicolor Auto Screen Printer Linear Type Metal Equipment
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| UsageStation: | 1-12 Stations | Printed Colors: | 1-12 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Package Details: | Plywood Package | Certification: | CE |
| Payment Terms: | T/T | After-sales Service: | Video Or On-line |
Product Description
85pcs/Min Glass Bottle Multicolor Auto Screen Printer Linear Type Metal Equipment
Scope of application:
This machine is suitable for single-color or multi-color screen printing on the surface of containers of various shapes such as round, oval, square and complex shapes. Container materials include plastic, glass and metal. Containers include jars, bottles, cups, lids and hard tubes.
Applicable industries:
Cosmetics, daily chemicals, food, medicine, health care products, baby products, automotive products, cleaning products, alcohol, glass adhesive, toys, sporting goods and so on.
Machine features:
Nearly 30 Years of Design Experience Accumulation: Relying on nearly 30 years of technical accumulation in the field of equipment design, its structural layout, performance stability and functional adaptability have all been verified through long-term practice, ensuring the core competitiveness of the equipment.
Multi-Functional Integration: Integrates four core functions: automatic feeding and discharging, surface treatment, screen printing and UV curing. No additional auxiliary equipment is needed, realizing a full-process continuous operation from raw material processing to finished product curing, and greatly improving production efficiency.
Linear Modular Structure, Supporting Multi-Color Expansion: Adopts a linear modular design, which can flexibly build an integrated production line with up to 12 colors to meet different color printing needs. The module combination is convenient and the later expansion cost is low.
Both High Precision and High Automation: Through precise design and manufacturing, high electromechanical synchronization is achieved; the degree of automation is high, and a simple and easy-to-use man-machine dialogue operation interface is equipped to lower the threshold of manual operation; at the same time, the feeding/discharging and host safety protection systems are upgraded, taking into account the operation stability and operational safety, and the overall operation of the equipment is efficient and smooth.
Technical Specifications:
| Machine running speed | 0-85pcs/min (printing speed varies from bottles to bottles) |
| Product height | 20-280mm |
| Round bottle diameter | 20-100mm |
| Flat bottle radius | 50-250mm |
| Flat bottle width | 20-100mm |
| Maximum printing area | length 250* height 200mm |
| Gas supply | 0.15mpa |
| Air pressure requires | 6-7 BAR |
| Voltage requirement | 3-phase 4-wire 380V 50/60Hz |
| Rated power | 6KW |
Optional congurated device:
1. Screen printing and labeling machine
a. Screen printing and labeling head interchangeable function, such as 2-color screen printing and labeling machine SL1288-2CT
b. Screen printing and labeling functions, such as single color screen printing and labeling machine SL1288-1CT
c. Labeling machines, such as dual head labeling machine SL1288-2T
2. Screen printing and hot stamping machine
a. Screen printing and hot stamping interchangeable functions, such as two-color screen printing and hot stamping machine SL1288-2CH
b. Screen printing and hot stamping function, such as single color screen printing and hot stamping machine SL1288-1CH
c. Foil stamping machines, e.g. Double Head Foil Stamping Machine SL1288-2H
Printing samples

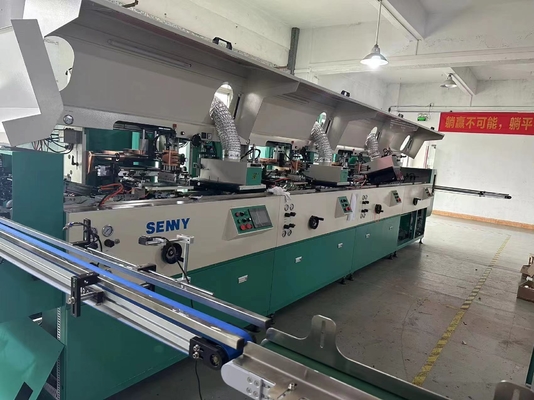

Customer Factory using our machine
