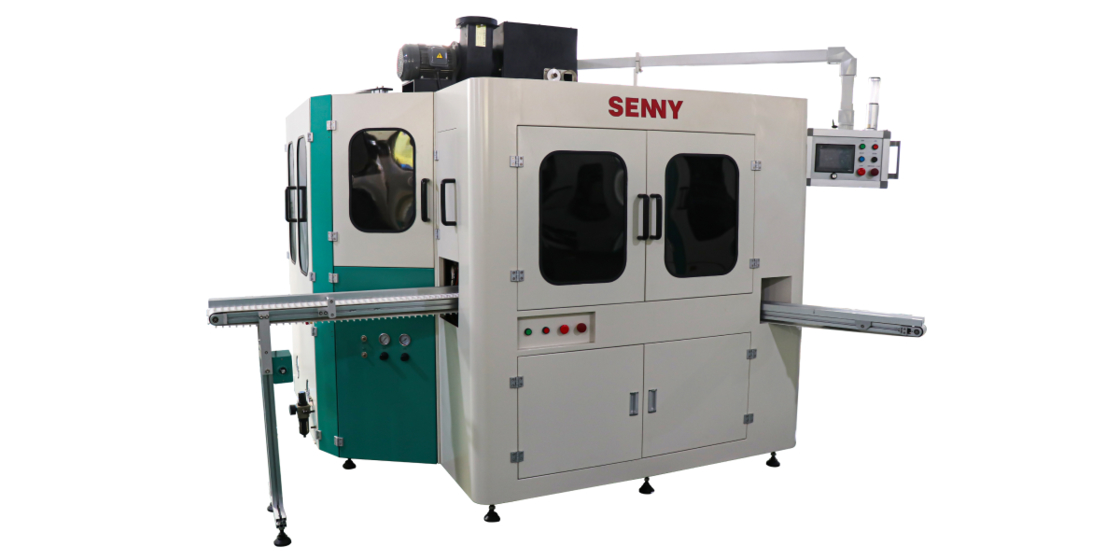

80 Pcs/Min Sealant Tube CNC Screen UV Printing Machine
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SL1666 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 45days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Model Numberi: | SL1666 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Services: | Video Or On-line |
Product Description
Machine Feature
- Integrated Turntable Design
The machine adopts an integrated turntable design, where all printing functions are completed within a single set of fixtures. This integrated structure ensures exceptional printing precision, reaching up to ±0.1 mm, effectively meeting the high-precision requirements of complex printing tasks.
2.360° Printing with Digital Servo Drive & Industry 4.0 Capabilities
Driven by a digitally controlled servo motor, the machine enables 360° all-around printing of products, ensuring smooth and consistent ink application across the entire surface. Additionally, it is equipped with remote management and service functions, aligning with Industry 4.0 standards to facilitate real-time monitoring, remote troubleshooting, and efficient production management.
3.Reliable Electrical & Control System
Featuring electrical components from well-known international brands, the machine is supported by a high-performance PLC (Programmable Logic Controller) system. It offers user-friendly operation via both a touchscreen interface and a wireless tablet, combining operational convenience with stable performance—ensuring reliable operation even in long-term continuous production and reducing maintenance complexity.
Optional Configuration
-
- Tube Arranging and Feeding Machine
The tube arranging and feeding machine enables automatic sorting, sequencing and precise feeding of printing tubes, eliminating the need for frequent manual intervention. It significantly reduces feeding time and labor costs, while avoiding tube damage caused by manual operation, thus ensuring the stable start of subsequent printing processes. -
2.Plasma Surface Treatment Function
The plasma surface treatment function uses high-energy plasma to clean and activate the surface of substrates. It effectively removes impurities such as oil stains and dust on the surface, improves the surface tension of materials, allows better ink adhesion, and solves common problems like ink peeling and blurring during printing.
3.Glossing Function
The glossing function uniformly coats a layer of transparent varnish on the surface of printed products after printing. It not only enhances the gloss and texture of the product surface but also forms a protective film, improving the product's scratch resistance, wear resistance and water resistance, and extending the service life of the product.- Hot Stamping Function
The hot stamping function transfers metal foil to designated positions on the product surface through a heated hot stamping plate. It can form exquisite, metallic patterns or text on printed products, enhancing the visual grade and brand recognition of the product, and is suitable for high-end packaging, gift boxes and other products with high appearance requirements.- LED-UV Curing Function
The LED-UV curing function uses advanced LED-UV light sources to quickly cure ink after printing, eliminating the need for long waiting time for drying and shortening the production cycle. The cured ink has strong adhesion, bright and stable colors, and is more energy-efficient and environmentally friendly compared with traditional curing methods.- Finished Product Quality Inspection Function
The finished product quality inspection function uses high-definition cameras and intelligent image recognition technology to automatically detect problems such as color deviation, pattern defects and blurred text of printed finished products. It timely screens out unqualified products, prevents defective products from entering the market, and ensures the stable quality of products.
Technical Parameters
| Machine Model | SR1666 |
| Working Station | 16 |
| Printing Speed | Up to 80 pcs/min |
| Soft Tube Diameter | 15-75mm |
| Bottle Height | 60-220mm |
| Max.Printing Length | 220mm |
| Max.Printing Height | 180mm |
Printing your vision
contact :
| SENNY PRINTING EQUIPMENT CO., LTD. | |
| Contact Person | Flora Gong |
| Cellphone /Wechat /Whatsapp: | +86 13650122619 |
| Email: | flora.gong@ senny.com.cn |
About us:
Since 1994, Senny has always adhered to the business philosophy of providing customers with high-quality products and services, exploiting the most advanced electrical control components and materials for R&D and manufacturing, and continuously improving the printing quality on various products to meet the increasingly extensive market requirements for high-quality packaging.
