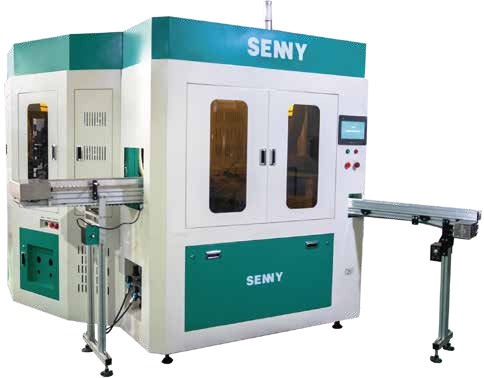

High-Stability Tube Screen Printing Machine for Soft Tubes with Hot Stamping and Remote Control Capability
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Senny |
| Certification: | CE,SGS |
| Model Number: | SRS566 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Film wrapping |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Minimum Order Quantity: | 1PC | Price: | Negotiation |
|---|---|---|---|
| Packaging Details: | Plywood Package | Delivery Time: | One Month |
| Payment Terms: | T/T | Supply Ability: | 10pcs/month |
| Certification: | CE SGS | Packageing Details: | Plywood Package |
| After-sales Service: | Video Or On-line | ||
| Highlight: | tube screen printing machine with hot stamping,soft tube printing machine remote control,high-precision tube screen printing machine |
||
Product Description
High-Stability Tube Screen Printing Machine for Soft Tubes with Hot Stamping and Remote Control Capability
Features
- Powered by a high-performance servo motor and managed through a precise digital control system, the machine delivers exceptional operational stability—effectively minimizing vibrations and fluctuations during runtime—and maintains superior printing accuracy. This precision is particularly critical for fine-detail printing tasks (such as micro-pattern marking or high-resolution graphic reproduction), where even minimal deviations could compromise the final product quality, making it well-suited for industries like electronics manufacturing, precision packaging, and custom labeling.
- The machine is outfitted with two complementary control interfaces: a fixed touch screen integrated into its main operation panel and a portable wireless tablet control system. The fixed touch screen offers intuitive, on-site operation with clear visual feedback for real-time parameter adjustments, while the wireless tablet enables flexible remote control—allowing operators to monitor workflow, modify settings, or troubleshoot issues from a distance (e.g., across the workshop floor or even from an off-site monitoring room). This dual-control design not only enhances operational convenience but also supports efficient remote services, such as technical diagnostics and software updates, reducing downtime for on-site maintenance.
- To guarantee long-term reliable performance, the machine adopts core electrical components (including circuit breakers, sensors, relays, and drive modules) sourced exclusively from globally renowned brands. These components undergo rigorous quality testing to withstand continuous high-load operation, extreme temperature variations, and other harsh industrial conditions—effectively lowering the risk of component failure, extending the machine’s service life, and reducing the frequency of unplanned repairs. This focus on quality components also ensures consistent printing results and stable system operation, providing users with greater peace of mind for long-term production needs.
Technical parameters
| Mechine Model | SRS566 |
| Printimg Color | 1+4 |
| Printing speed | Up to 85pcs/min |
| Soft Tube Diameter | 13-76mm |
| Soft Tube Length | 30-240mm |
| Max Printing Length | 220mm |
| Max Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Configuration
- Unscrambling&feeding machine Hot stamping function plasma surface treatment function
- Visual registration function LED-UV curing function Finished product quality inspection function
flame treatment
UV curing
feeding device
Applications
SRS566 CNC Tubular UV Screen Printing Machine is a fully automatic CNC tubular UV screen printing machine. This machine is specifically designed for very small plastic containers of cosmetics and skin care productsThe application scope is very wide and it can be used for UV screen printing of various cylindrical tube bodies such as cosmetic tubes, pharmaceutical tubes, toothpaste tubes, plastic tubes, metal tubes, glass tubes, composite tubes, etc.

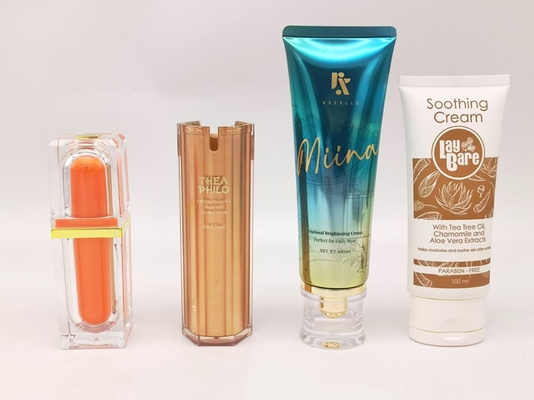

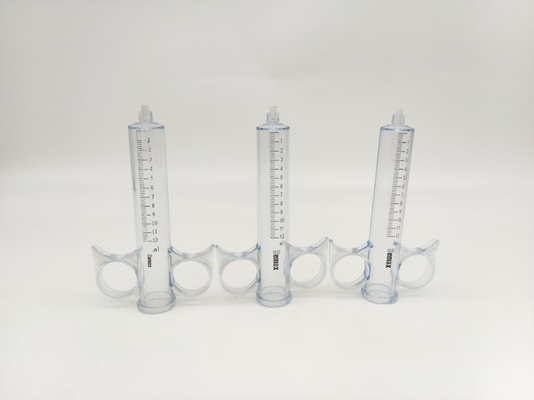

Printing sample
About us
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
