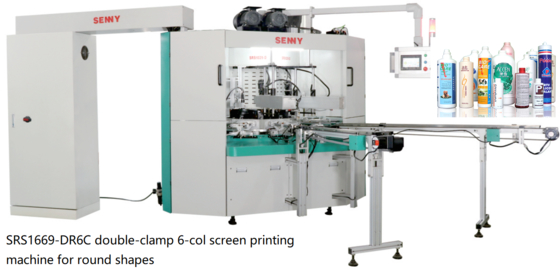

6-Color 45pcs/Min CNC Automatic Screen Printing UV Curing Machine For Tube And Bottle
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | SENNY |
| Certification: | CE SGS |
| Model Number: | SRS1669 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 45days |
| Payment Terms: | T/T |
| Supply Ability: | 10 pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Plate Type: | Screen Printer |
|---|---|---|---|
| After-sales Services: | Video Or On-line | Printed Color: | 6 |
| Highlight: | 6-color automatic screen printing machine,CNC UV curing machine for tubes,45pcs/min bottle printing machine |
||
Product Description
Machine Feature
- This machine is capable of performing screen-printing with multi-color UV inks, hot stamping, and other decorative processes on a variety of products. These include bottles, jars, caps, and items with irregular shapes, which can be made from materials such as plastic, metal, glass, and more.
- With an integrated turntable design, the machine accomplishes all printing tasks using the same set of fixtures. It boasts an impressive printing accuracy of up to ±0.1mm and ensures that products remain free from scratches during the process.
- Powered by a digitally controlled servo motor, the machine allows for 360-degree printing on products. In line with Industry 4.0 standards, it is also equipped with remote management and service functionalities.
Optional Configuration
-Product lying flat feeding and discharging function.
- It is equipped with LED-UV curing system.
-Hot stamping function.
- It has a labeling function.
- A plasma surface treatment function.
- A function for visual alignment of bottle bottoms.
Technical Parameters
| Machine Model | SRS1669 |
| Work Station | 16 |
| Printing Color | 6 |
| printing Speed | Up to 45 pcs/min |
| Diameter at 360 Degree | 13-60mm |
| Container Height | 20-200mm |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
