Syringe/Eyebrow Pencil Fully Automatic Screen Printing Machine 60pcs/Min
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SR1522 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Auto Grade: | Fully Automatic | Model Type: | SR1522 |
|---|---|---|---|
| Plate Type: | Screen Printer | After-sales Service: | Video Or On-line |
| Printing Color: | 2 Colors | Payment Terms: | T/T |
| Warranty: | 1 Year | Package Detials: | Plywood Package |
| Certification: | CE SGS | Supply Ability: | 10pcs/month |
| Highlight: | fully automatic screen printing machine 60pcs/min,syringe pencil screen printing machine,eyebrow pencil automatic printing machine |
||
Product Description

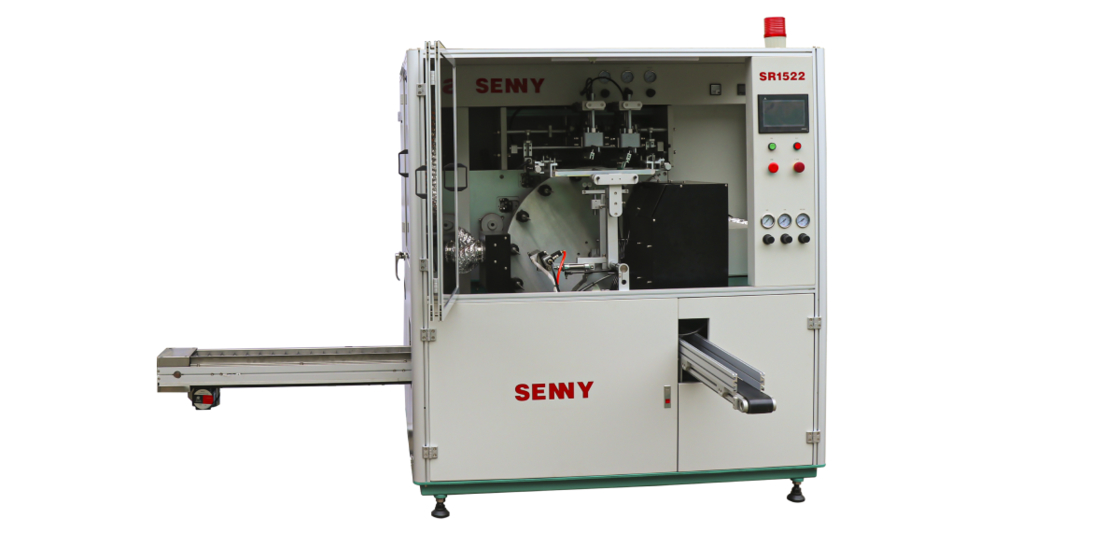

Syringe/Eyebrow Pencil Fully Automatic Screen Printing Machine 60pcs/Min
PRODUCT
Machine Features
The SR1522 model is suitable for multi-color UV ink screen printing on the surface of various small circular tubular and cylindrical products, specifically applicable to: small-diameter round tubes with a diameter of 5-30mm, pens (such as ballpoint pens, markers), eyebrow pencils, lipstick casings, medical syringes, etc. It can accurately adapt to the curved surface printing needs of slender products.
The SR1522-F model is specially designed for square hard tubes, which can efficiently complete multi-color UV ink screen printing on square-section tubular products (such as square lipstick tubes, square pen holders, square ointment tubes, etc.), ensuring clear and flawless printing at the corners.
Both models adopt an integrated turntable design, integrating full-process functions such as automatic feeding, positioning calibration, multi-color overprinting, and UV curing. The operation interface is simple and clear, and parameter setting and mode switching can be completed through the touch screen. New operators can operate independently after simple training. The core electrical components are selected from internationally renowned brands such as Siemens and Schneider, combined with a high-precision PLC control system. The printing repeat positioning accuracy can reach ±0.05mm, supporting stable operation for 8 consecutive hours with low failure rate, effectively ensuring production efficiency.

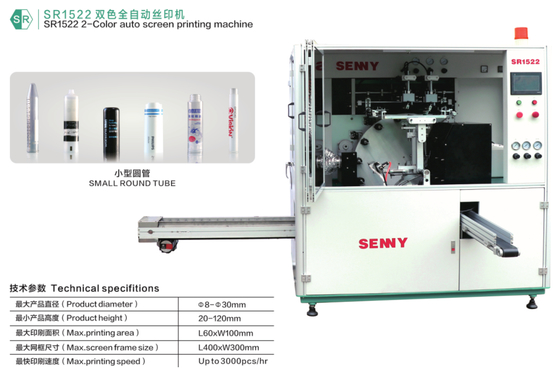

Techical parameters
| Machine Model | SR1522 |
| Work Station | 15 |
| Printing Speed | Up to 60pcs/min |
| Product Diameter | 5-30mm |
| Product Height | 50-120mm |
| Max Printing Length | 100mm |
| Max Printing Height | 100mm |
| Printing Color | 2 color |
Configuration
- Plasma treatment
- Quanlity inspection machine
- LED-UV curing function
Custommized jars fixation Flame treatment device UV curing device
Appcations
The SR1522 Automatic 2-Color Screen Printing Machine with UV Curing System is an automatic two-color screen printing equipment designed specifically for small cylindrical products, equipped with a UV curing system, and is particularly suitable for surface printing processing of syringes and eyebrow pencils. Its applications cover various types of subdivided products, including:
- Syringes: Disposable medical syringes (outer wall of the barrel), insulin syringes (dose marking area), veterinary syringes (scale and brand information), cosmetic injection needles (LOGO printing)
- Eyebrow pencils: Wooden eyebrow pencils (pen shaft patterns), automatic rotating eyebrow pencils (two-color logos on the shell), eyebrow powder pencils (brand and color number printing), eyebrow pencil refills (specification marking)

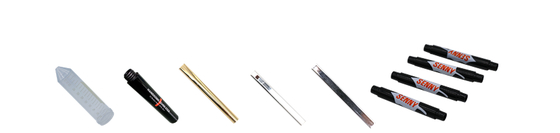

Printing sample
Customer
The customer came to visit our factory
Our exhibition
About us
SENNY PRINTING EQUIPMENT CO.,LTD was established in the year 2004, it is specialized in designing and manufacturing precise automatic screen printing machines, stick labler machines, hot stamping machines and auxiliary equipments. Meanwhile, they can design any kinds of automatic printing machines according to customers' requirements.
SENNY has very good designers. The founder of SENNY was engaged in designing and developing screen printing machines early from the year 1994, and he got many achievements: he designed the first automatic screen printing machine; automatic screen printing machine for big iron pails; four colors sereen printing machine for big oil kettles; automatic screen printing machines controlled by module independently for bottles; automatic screen printing machine for pails from 10L 1o 20L(3colors and 7colors) and so on so forth.
In order to improve our products, SENNY adopts the advantages of the similar products in or abroad, and we also take customers' comments and suggestions into consideration. With the innovation and improvement for many years, the products produced by SENNY now are in a leading position in the domestic markets. And it also sales well all around the world.
With the mission“Excellence,Creation,Sincerity,Quality!”,SENNY insists on providing high--quality products and services, dedicating to exploring the new markets and seeking for mutual benefit and win-win state with our customers.
