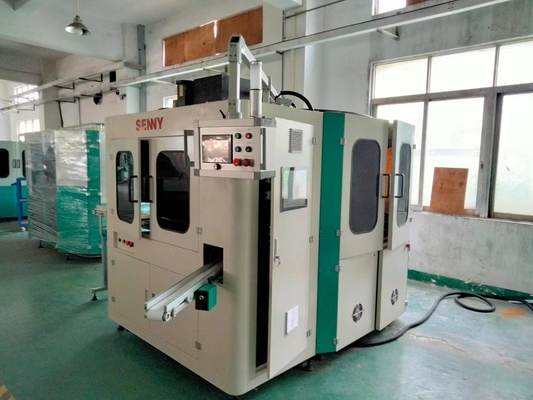

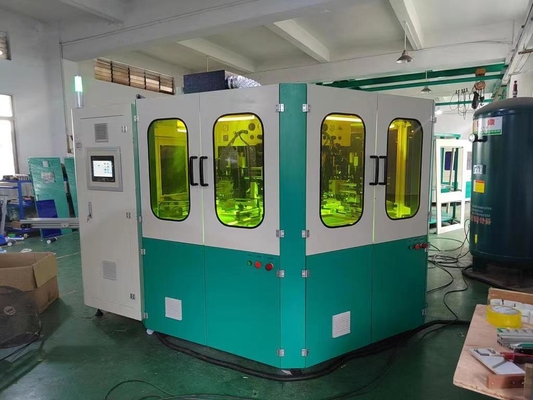

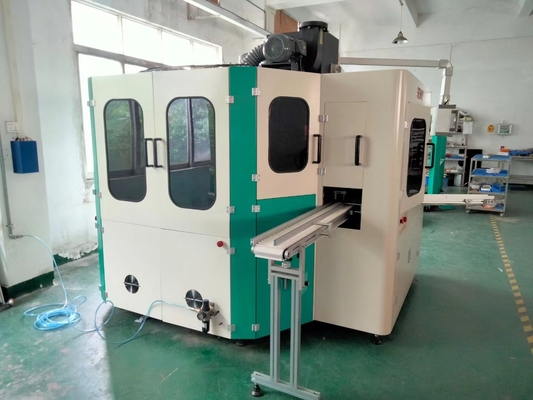

UV Ink Varnish Tube Screen Printing Machine For Soft Tubes 80pcs/Min
Product Details:
| Place of Origin: | Dongguan China |
| Brand Name: | Senny |
| Certification: | CE,SGS |
| Model Number: | SRS826 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Film wrapping |
| Delivery Time: | 45 days |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Minimum Order Quantity: | 1PC | Price: | Negotiation |
|---|---|---|---|
| Packaging Details: | Plywood Package | Delivery Time: | One Month |
| Payment Terms: | T/T | Supply Ability: | 10pcs/month |
| Highlight: | UV ink tube screen printing machine,soft tube screen printer 80pcs/min,high-speed tube printing machine with warranty |
||
Product Description
UV Ink Varnish Tube Screen Printing Machine For Soft Tubes 85pcs/Min
PRODUCT
Features
Superior Multi-Process Integration Capability:
Specifically designed for high-precision decoration of plastic soft tubes, enabling multiple premium finishing processes in one integrated workflow.
Core Processes:
High-Precision UV Screen Printing: Stably and efficiently prints multiple colors spot colors, CMYK, specialty inks) using UV-curable inks, delivering sharp, vibrant, and highly adherent graphics.
Precision Hot Foil Stamping:Integrated hot stamping unit (cold foil optional) accurately transfers metallic foils(gold, silver, holographic, etc.) or pattern films onto designated tube areas, elevating product aesthetics.
High-Quality Varnishing:Independent varnishing unit applies local or full-coat UV gloss/matte varnish, enhancing surface brilliance, abrasion resistance, or providing unique tactile effects.
Flexible Process Combination: Allows on-demand combination of the above processes within a single production cycle (e.g., base printing + foil stamping + spot varnishing) to achieve complex, high-value-added decorative effects.
Revolutionary "Integrated Turret" Design & Ultra-High Precision (±0.1mm):
Integrated Multi-Station Turret: Features an innovative multi-station integrated turret design(e.g., 12, 14, or more stations). All printing, stamping, and varnishing operations are completed using the same set of high-precision fixtures.
Eliminates Re-Positioning Errors: Tubes rotate precisely with the turret between stations without requiring re-clamping, fundamentally eliminating registration inaccuracies caused by multiple positioning steps.
±0.1mm Registration Accuracy:Achieves industry-leading ±0.0.1mm registration accuracy through robust mechanical construction (high-rigidity turret, precision bearings, linear guides) and advanced motion control algorithms. Ensures perfect alignment between multi-color prints, foil and print, and print and varnish, meeting stringent requirements for premium packaging
Fully Digital Servo Drive & 360° Seamless Printing:
Core Drive System: Critical motion axes (turret indexing, squeegee, flood bar, foil head lift, fixture rotation) are powered by top-tier international brand (e.g., Yaskawa, Mitsubishi, Panasonic) fully digital AC servo motors.
Precision Control: Servo systems deliver exceptional speed stability, positional repeatability, and rapid response.
360° Circumferential Decoration: Fixture design enables precise 360° rotation of tubes during printing/stamping/varnishing, facilitating seamless, jointless full-circumference decoration, overcoming traditional printing limitations.
Intelligent Control & Industry 4.0 Connectivity:
Central Control: Utilizes a high-performance PLC (Programmable Logic Controller)system for precise and reliable logic contro.
Human-Machine Interface (HMI):
Main Operator Panel:Features a large-size, high-resolution industrial touchscreen (HMI) with an intuitive graphical interface for easy recipe management, parameter setting (speed, pressure, stroke, temperature, dwell time), production monitoring, fault diagnosis, and production statistics.
Wireless Tablet Operation: Innovatively supports operation via rugged industrial wireless tablets , allowing operators to move freely around the machine for parameter adjustment, start/stop commands, and status checks, enhancing operational flexibility and efficiency.
Remote Management & Service (Industry 4.0):
Machine Connectivity: Equipped with industrial Ethernet ports (e.g., Ethernet/IP, Profinet, Modbus TCP) and/or 4G/5G modules for integration into factory networks or cloud platforms.
Remote Monitoring: Enables real-time remote monitoring of machine status (running/stopped/alarm), production efficiency (OEE), output, and key parameters via **PC or mobile APP.
Remote Diagnostics & Maintenance:Authorized service engineers can perform remote fault diagnosis, software updates, and parameter optimization, significantly reducing downtime and improving service response.
Data Acquisition & Analytics:Collects, stores, and analyzes production data (speed, yield, alarm history) to support production optimization and decision-making.
Technical parameters
| Mechine Model | SRS826 |
| Work Station | 8 |
| Printing speed | Up to 80pcs/min |
| Soft Tube Diameter | 15-75mm |
| Soft Tube Height | 60-220mm |
| Max Printing Length | 220mm |
| Max Printing Height | 180mm |
| Printing Accuracy | ±0.1mm |
Configuration

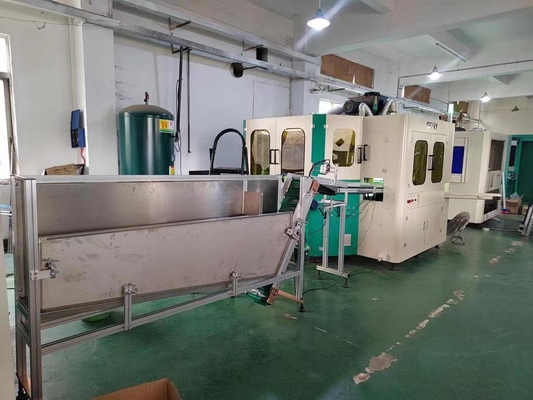

- Unscrambling&feeding machine Hot stamping function plasma surface treatment function
- Visual registration function LED-UV curing function Finished product quality inspection function
flame treatment
UV curing
feeding device
Applications
SRS826 CNC Tubular UV Screen Printing Machine is a fully automatic CNC tubular UV screen printing machine. The application scope is very wide and it can be used for UV screen printing of various cylindrical tube bodies such as cosmetic tubes, pharmaceutical tubes, toothpaste tubes, plastic tubes, metal tubes, glass tubes, composite tubes, etc.
