250x200mm Fully Automatic , 12 Stations 4000pcs/Hr Flat Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1288 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Printed Colors: | 1 To 12 Colors | Plate Type: | Screen Printing Machine |
|---|---|---|---|
| Printing Durability: | High Durability | Speed: | Up To 4000pcs/hr |
| Warranty: | 1 Year | After-Sales Service: | Video Or On-line |
| Highlight: | 12 Stations Flat Screen Printing Machine,4000pcs/Hr Flat Screen Printing Machine,250x200mm Flat Screen Printing Machine |
||
Product Description
1 To 12 Colors Flat/Oval/Circular Screen Printing Machine With Hot-Stamping System Max Printing Area L250 X W200mm

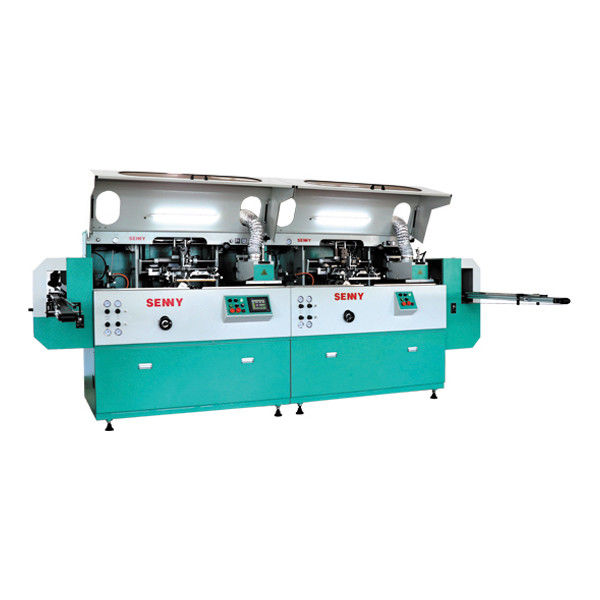

The automatic screen printing system SL1288 (1-12 colors) can be designed for cylindrical, oval and flat bottles and jars, while the other machine SL1266 can be used only for cylindrical bottles and jars, so you can choose as much as you want. Both machines can be equipped with hot stamping systems, labeling systems, plasma systems or UV-LED systems.
Technical Specifications:
| Model | SL1288 |
| Max. printing diameter | Cylindrical/Elliptical/Flat |
| Elliptical container radius | R25 - R200mm |
| Width elliptical or flat container | 20 - 100mm |
| Cylindrical container diameter | Φ20 - Φ100mm |
| Container height | 50 - 280mm |
| Max. printing area | L250 x W200mm |
| Max. printing speed | Up to 5000pcs/hr |
SAFE EFFIENCY INNOVATIVE
* The SL1288 pneumatically driven automatic printing machine is suitable for screen printing of plastic or glass containers with round, oval, square or rectangular cross sections, with centered or off-centered necks and with easy change of different shapes in the printed cross section.
* Shape changeover: 30 minutes per machine, from cylindrical to oval or flat.
* Linear unit structure combination: up to 8 inline colors can be selected.
* Machine is PLC and touch screen operated for easy operation with excellent alarm system.
* Infeed components include: infeed belt and robot hand for side selection.
* Side-selection mainframe is driven by servo motor for rotary dedusting and flame treatment of round containers.
* Flame treatment for round, oval and rectangular containers.
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegees
* UV curing by rotation of round containers driven by stepper motors.
* Electronic UV system: device with freely adjustable light (alternative to LED UV curing systems).
* Auxiliary machine part with optional oval and square container sides
* Output parts: robot hand and belt for standing up containers
* CE compliant.
The machine is not only suitable for cylindrical bottles, but also for oval and flat bottles, which are widely used in chemical and food packaging.

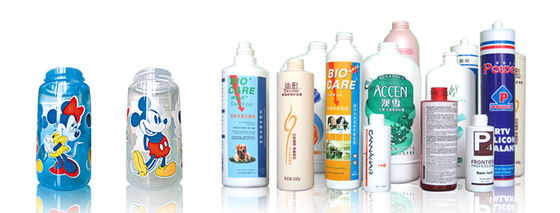

Printing samples
