5 Stations 6000pcs/Hr Bottle Screen Printing Equipment 300x250mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SLS188-IR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Station: | 1-2 Stations | Printed Colors: | 1-12 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 5 Stations Bottle Screen Printing Equipment,300x250mm Bottle Screen Printing Equipment,6000pcs/Hr Bottle Screen Printing Equipment |
||
Product Description
Fully Automatic Screen Printing Machine For Ordinary Ink Print For Square, Oval, Circular Bottles
SAFE EFFIENCY INNOVATIVE

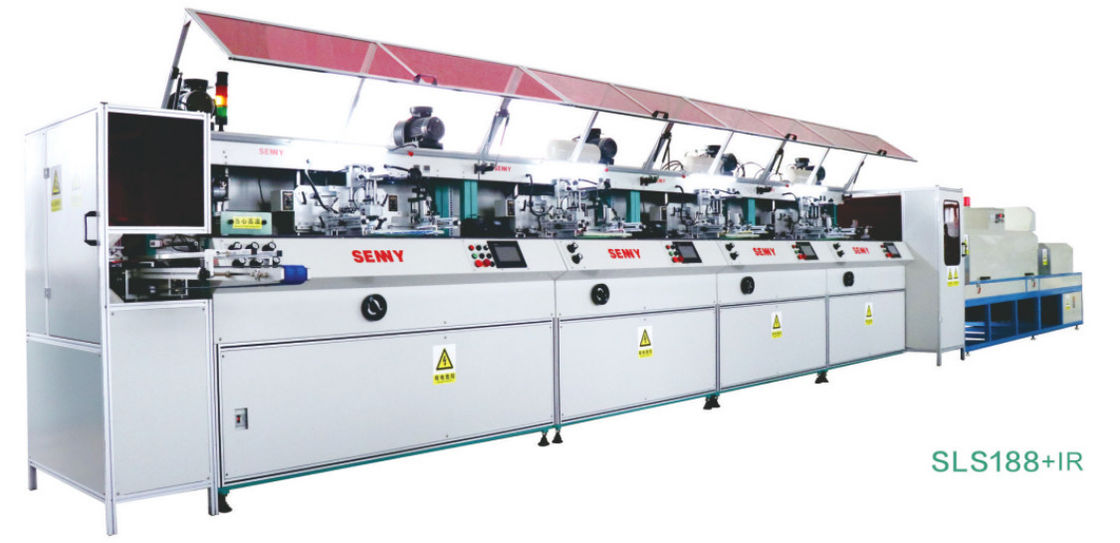

* SLS1888-IR servo-driven automatic machine for screen printing of containers of plastic or other materials with round, oval, square or rectangular cross-section, with centered or off-centered necks and with easy change of different shapes in the printed cross-section.
* Shape changeover: 30 minutes per machine, from cylindrical to oval or flat, with 360-degree printing.
* Linear unit structure combinations: Up to 8 inline colors are optional.
* Machines are PLC and touch screen operated for easy operation with an excellent warning system.
* Feeding components include: Feeding belt and robot hand for side selection.
* The machine side selector mainframe is driven by servo motors and rotates for dusting and flaming of round containers.
* Flame treatment for round, oval and rectangular containers.
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegees.
* Connection with IR curling system for normal ink printing.
* Auxiliary machine part with optional oval and square container sides
* Output parts: Machine hand and belt for container stand-up
* CE compliant.
Technical Specifications:
| Max. printing area | L300 x W250mm |
| Cylindrical container diameter | Φ20-Φ120mm |
| Square or Oval product diameter | Φ20-Φ100mm |
| Width elliptical or flat container | 20-130mm |
| Container height | 50-300mm |
| Max. printing speed | Up to 6000pcs/hr |

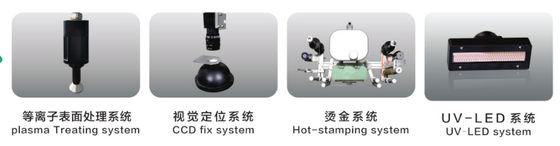

The SLS1888 can be configured with a plasma processing system, a labeling system, a hot stamping system or a UV-LED system, depending on the customer's specific requirements.

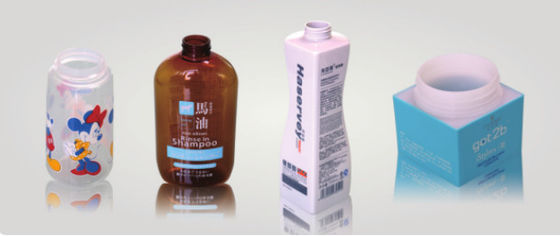

Printing samples
Workshop
