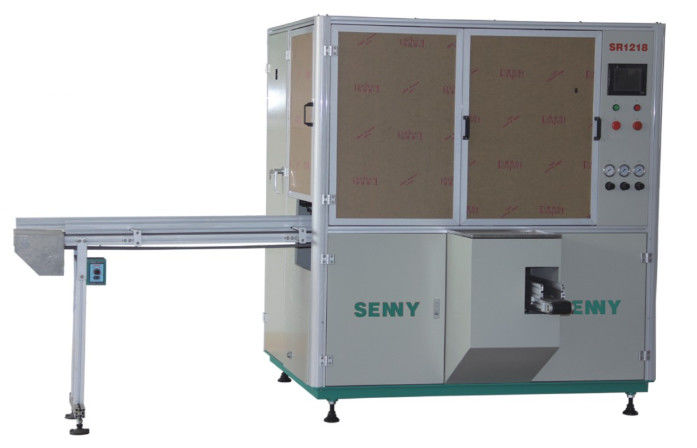

5000pcs/Hr Plas , SGS Fully Automatic Plastic Bottle Screen Printing Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SR1218 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Usage: | Flat Buckets | Printed Speed: | 5000pcs/hr |
|---|---|---|---|
| Printing Durability: | High Durability | Machine Color: | As Pic Or Customized |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | SGS Plastic Bottle Screen Printing Machine,SGS fully automatic printing machine,Plastic Bottle fully automatic printing machine |
||
Product Description
Chinaware Printing Fully Automatic Screen Print Machine For Plastic Jars/Bottles/Caps In Round Shape
Application:
This customized machine is specially designed for printing oval/round products such as containers, cosmetics, plastic bottles, etc., with a fireproof treatment device, printing by automatically fixing the correct logo position and UV drying.
Main functions:
Automatic loading conveyor system
Auto pre-allocation sysem
Auto flame treatment for container surface
No-printing while no bottle system
Electrode less varies -speed motor system
UV-coating system
Adjustable mchanical syncharonous transfer system
Product Features:
1. SR1218 automatic screen printing machine for plastic soft tubes, round cans and round caps.
2. The machine has automatic feeding function, electrostatic dust removal function, flame treatment function, servo-driven register function, automatic printing and UV curing function.
3. Different types of machines can be manufactured according to requirements, such as internal mode printing or clamp type printing.
4. Servo-driven with color-code pre-registration function or servo-driven visual pre-registration function are available as options.
5. Equipped with touch screen for easy man-machine dialog and complete warning system.
Translated with DeepL.com (free version)
Technical specification:
| Model | SR1218 |
| Max. printing area | 250 X 150mm |
| Min. cylindrical-container diameter | Φ20mm |
| Max. cylindrical-container diameter | Φ80mm |
| Min. container height | 20mm |
| Max. container height | 200mm |
| Max. screen frame size | 400X300mm |
| Max. printing speed | 5000pcs/hr |

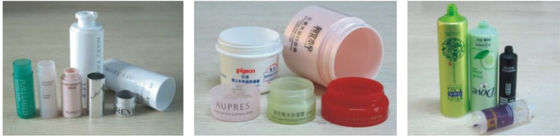

Printing samples:
Factory
