300*250mm 100pcs/Min Fully Automatic Silk Screen Printing Machine Multicolor
Product Details:
| Place of Origin: | China |
| Brand Name: | Senny |
| Certification: | CE SGS |
| Model Number: | SL1888 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood package |
| Delivery Time: | One Month |
| Payment Terms: | T/T |
| Supply Ability: | 10pcs/month |
|
Detail Information |
|||
| Stations: | 1-12 | Printed Colors: | 1-12 Colors |
|---|---|---|---|
| Printing Durability: | High Durability | Plate Type: | Screen Printer |
| Warranty: | 1 Year | Automatic Grade: | Automatic |
| Highlight: | 300*250mm fully automatic screen printing machine,100pcs/Min fully automatic screen printing machine,Multicolor fully automatic printing machine |
||
Product Description
Multicolor Fully Automatic Silk Screen Printing Machine For Cylindrical/Elliptical/Square Shapes Bottles And Jars
SAFE EFFIENCY INNOVATIVE
* SLS1888 servo-driven automatic machine for screen printing of containers of plastic or other materials with round, oval, square or rectangular cross sections, with centered or off-centered necks and easy change of different shapes in the printed cross section.
* Shape changeover: 30 minutes per machine, from cylindrical to oval or flat, with 360-degree printing.
* Linear unit structure combinations: up to 8 inline colors are optional.
* Machines are PLC and touch screen operated for easy operation with an excellent warning system.
* Feeding components include: feeding belt and robot hand for side selection.
* Side-selection mainframe is driven by servo motor for rotary dedusting and flame treatment of round containers.
* Flame treatment for round, oval and rectangular containers.
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegees
* UV curing by rotation of round containers driven by stepper motors.
* Electronic UV system: device with freely adjustable light (alternative to LED UV curing systems)
* Auxiliary machine part with optional oval and square container sides
* Output parts: robot hand and belt for standing up containers
* CE-compliant.
Technical Specifications:
| Max. printing area | L300 x W250mm |
| Cylindrical container diameter | Φ20-Φ120mm |
| Square or Oval product diameter | Φ20-Φ100mm |
| Width elliptical or flat container | 20-130mm |
| Container height | 50-300mm |
| Max. printing speed | Up to 6000pcs/hr |

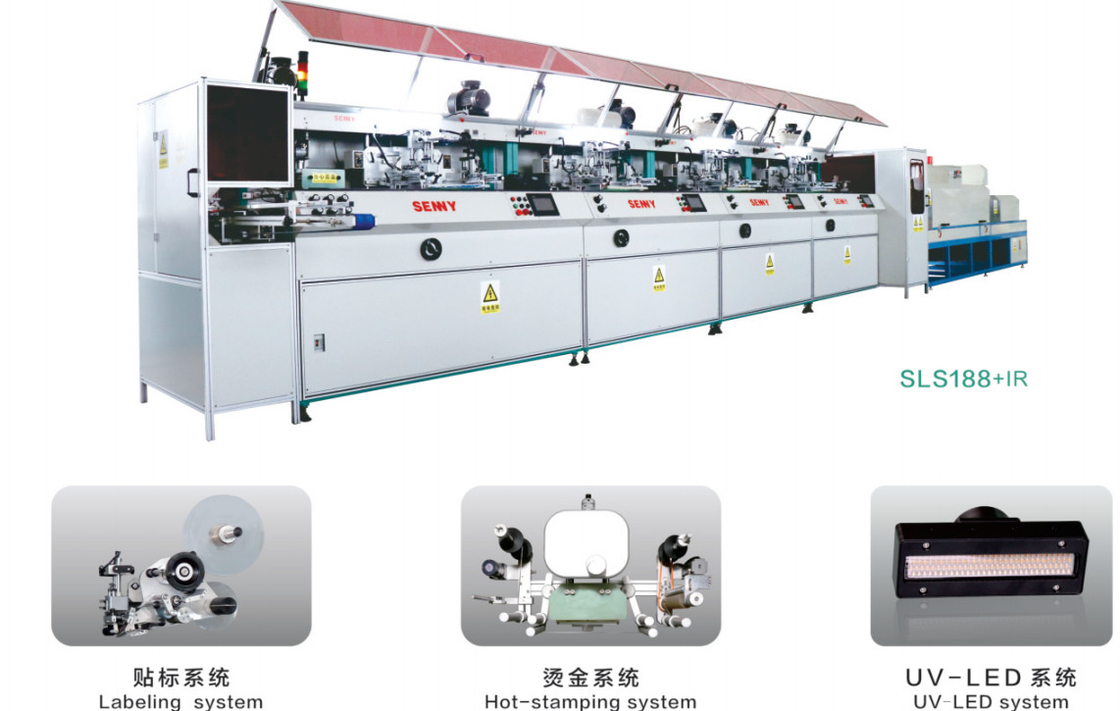

SLS1888 can be configurated with Plasma Treating system, labelling system, hot-stamping system or UV-LED system as customer's specific demands.
Printing samples
